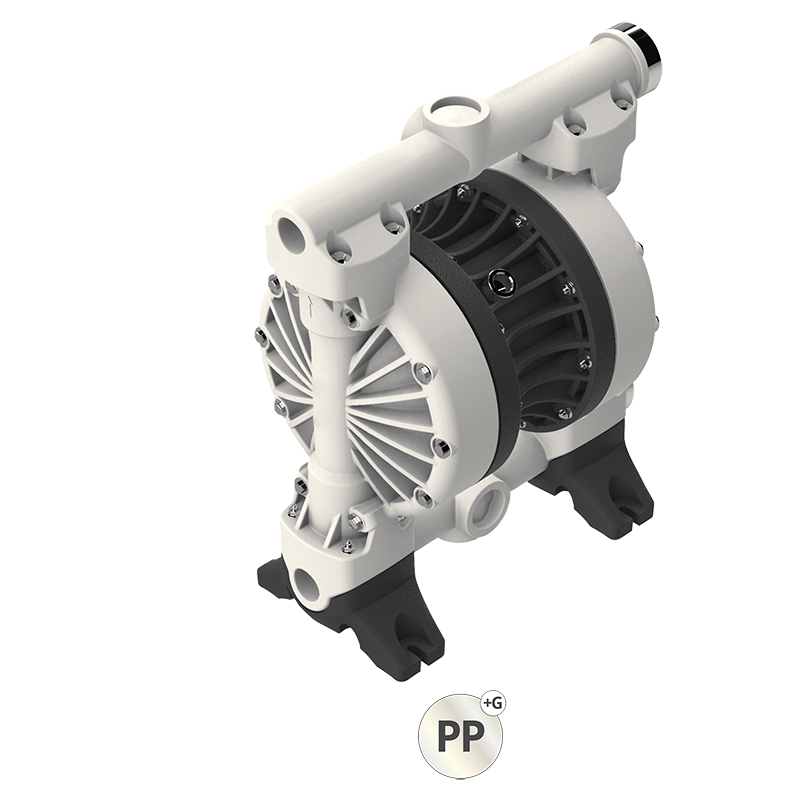

Evora LDE 2000 (2") double diaphragm air-operated pump
Skip image gallery
High delivery capacity
Resistant to chemicals
ATEX option available
*Illustration may differ from the actual product
Delivery time on request
Product number:
5250-210
Product information "Evora LDE 2000 (2") double diaphragm air-operated pump"
Chemical-resistant plastic pump for demanding applications
The LDE 2000 PP-TPV/PTFE offers enhanced chemical resistance for use in aggressive media. The PP housing and PTFE-santoprene sandwich diaphragms ensure high resistance to solvents, alcohols and chlorinated chemicals.
This version is particularly popular in chemical production, electroplating and paint processing, where process reliability and material purity are crucial. Their oil-free, energy-efficient operation ensures constant pumping performance with minimal maintenance.
Brief advantages:
- PTFE composite diaphragm for high chemical resistance
- Ideal for solvents and chlorinated liquids
- Energy-efficient and durable
| Air connection (double-diaphragm pump): | 3/4" BSP |
|---|---|
| Air pressure (max. bar): | 8 |
| Ball/Seal: | PTFE |
| Connection (double-diaphragm pump): | 2" BSP male (DN 50) |
| Delivery head (up to max. m wc)*.: | 80 |
| Diaphragm (double diaphragm): | TPV + PTFE |
| Displacement volume (in cm³): | 1.910 |
| Explosion protection: | No |
| Flow rate (up to max. l/min)*.: | 715 |
| Housing/ball seat: | PP + GFR |
| Liquid temperature (max °C): | 60 |
| Matchcode (DMP): | LDE-2000-00-PPA-LTPTGRR-00 |
| Max. Solid size (mm): | 9 |
| Max. Suction height: | 9 mWS wet (4.5 mWS dry) |
| Operating point (l/min): | 400 |
| Viscosity (up to max. mPas)*.: | 30000 |
