Evora LDE 1500 (1 1/2") double diaphragm air-operated pump
Skip image gallery
High delivery capacity
Resistant to chemicals
ATEX option available
*Illustration may differ from the actual product
Delivery time 2-5 days
Product number:
5242-240
Product information "Evora LDE 1500 (1 1/2") double diaphragm air-operated pump"
Metal version for oil, lubricants and hydraulic fluids
The LDE 1500 AL-NBR is the robust metal version for industrial use with oils, greases, lubricants and hydraulic fluids. Its aluminium housing offers stability with low weight, while the NBR diaphragms ensure reliable sealing and a long service life.
Typical areas of application are service companies, the oil and gas industry and maintenance systems where economical, resilient pump technology is required.
Brief advantages:
- Economical metal design for oily media
- Robust and durable in continuous operation
- Maintenance-friendly design for quick servicing
| Air connection (double-diaphragm pump): | 1/2" BSP |
|---|---|
| Air pressure (max. bar): | 8 |
| Ball/Seal: | NBR |
| Certification: | ATEX Directive (ATEX Directive 2014/34/EU) |
| Connection (double-diaphragm pump): | 1 1/2" BSP female thread (DN 40) |
| Delivery head (up to max. m wc)*.: | 80 |
| Diaphragm (double diaphragm): | NBR |
| Displacement volume (in cm³): | 670 |
| Explosion protection: | Yes |
| Flow rate (up to max. l/min)*.: | 370 |
| Housing/ball seat: | Aluminium |
| Liquid temperature (max °C): | 90 |
| Matchcode (DMP): | LDE-1500-EX-ALA-NNANGRR-00 |
| Max. Solid size (mm): | 7 |
| Max. Suction height: | 9 mWS wet (4.5 mWS dry) |
| Operating point (l/min): | 200 |
| Viscosity (up to max. mPas)*.: | 30000 |
Skip product gallery
Similar Products
High delivery capacity
Resistant to chemicals
ATEX option available
Evora LDE 1000 (1") double diaphragm air-operated pump
High delivery capacity and maximum durability - for demanding industrial applications.
Robust metal pump for oil and lubricants
The LDE 1000 AL-NBR is the economical metal version for media that do not require high chemical resistance. The aluminium housing in combination with NBR diaphragms is particularly suitable for use with oils, lubricants and typical media from the oil and gas sector.
This Air operated diaphragm pump is ideal for workshops, maintenance, mechanical engineering and numerous industrial applications where robust technology and a good price-performance ratio are paramount. It is the right choice for classic operating media close to mineral oil.
Brief advantages:
Robust solution for oil and lubricants
Economical metal design
Ideal for workshops and maintenance
High delivery capacity
Resistant to chemicals
ATEX option available

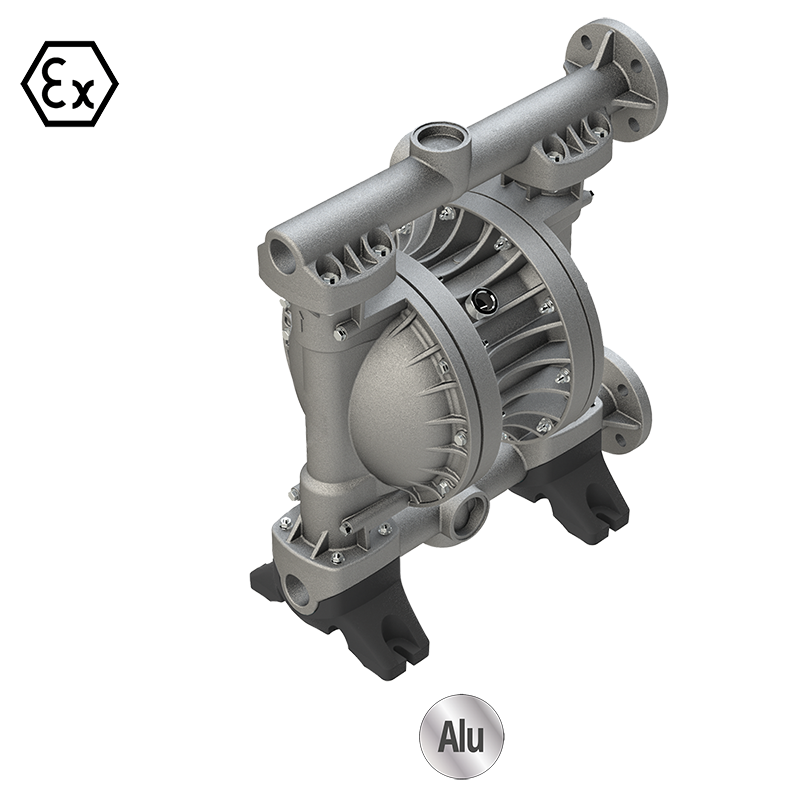

Evora LDE 2000 (2") double diaphragm air-operated pump
