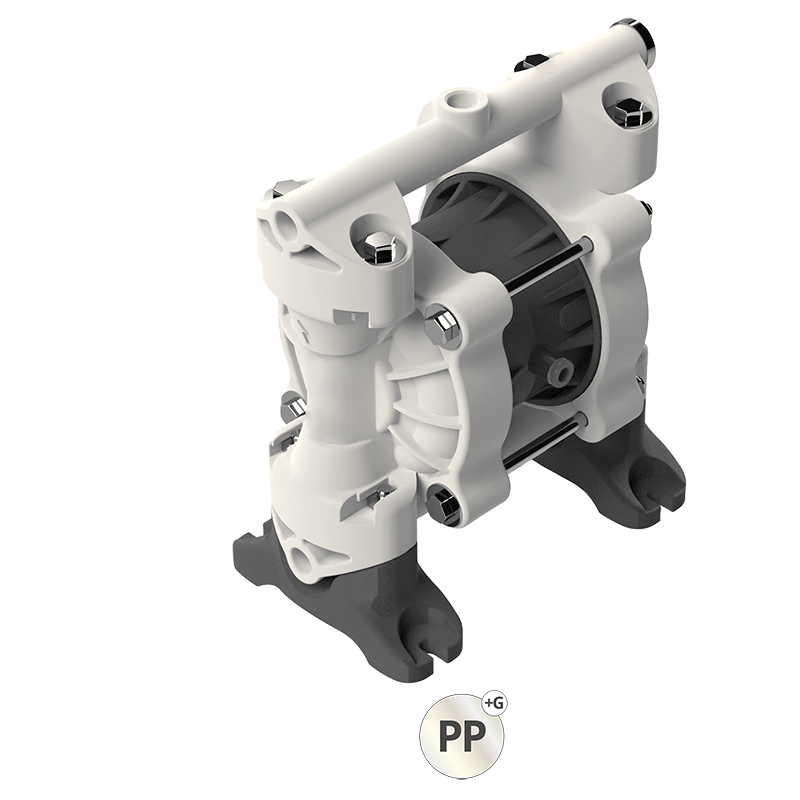

Evora LDE 0250 (1/4") compressed air double diaphragm pump
Skip image gallery
Compact & powerful
Chemically resistant
ATEX optional
*Illustration may differ from the actual product
Delivery time on request
Product number:
5200-020
Product information "Evora LDE 0250 (1/4") compressed air double diaphragm pump"
Cost-effective PP version for light acids, alkalis and water-based media.
The LDE 0250 DMP 1/4" PPE is the economical entry into compact chemical transfer. With a PP housing, TPV diaphragm and EPDM balls/seals, this variant is suitable for a wide range of light acids and alkalis as well as for selected water-based media in industrial secondary and standard processes.
This Diaphragm pump is particularly interesting for applications where a compact and cost-efficient solution is required without high requirements for solvent or explosion resistance. Typical fields of application are water treatment, general chemical engineering and smaller dosing or conveying systems.
Brief advantages:
- Cost-effective Version: for standard chemicals
- Compact, low-maintenance and easy to integrate
- Suitable for light acids, alkalis and water-based media
| Air connection (Ø mm): | 4 |
|---|---|
| Air pressure (max. bar): | 8 |
| Ball/Seal: | EPDM |
| Connection (double-diaphragm pump): | 1/4" BSP female thread |
| Delivery head (up to max. m wc)*.: | 80 |
| Diaphragm (double diaphragm): | TPV |
| Displacement volume (in cm³): | 35 |
| Explosion protection: | No |
| Flow rate (up to max. l/min)*.: | 21 |
| Housing/ball seat: | PP + GFR |
| Liquid temperature (max °C): | 60 |
| Matchcode (DMP): | LDE-0250-00-PPN-MDPDGRR-00 |
| Max. Solid size (mm): | 3 |
| Max. Suction height: | 9 mWS wet (4 mWS dry) |
| Operating point (l/min): | 15 |
| Viscosity (up to max. mPas)*.: | 3500 |
