Food, Pharmaceuticals and cosmetics industry
During food production, raw materials and finished Foodstuffs come into contact with various objects and materials that must be suitable for this purpose. This also includes equipment and plant components for the commercial production of Foodstuffs. These are defined as "food contact materials and articles" and are specified in food legislation.
Food
Dichtung FPM

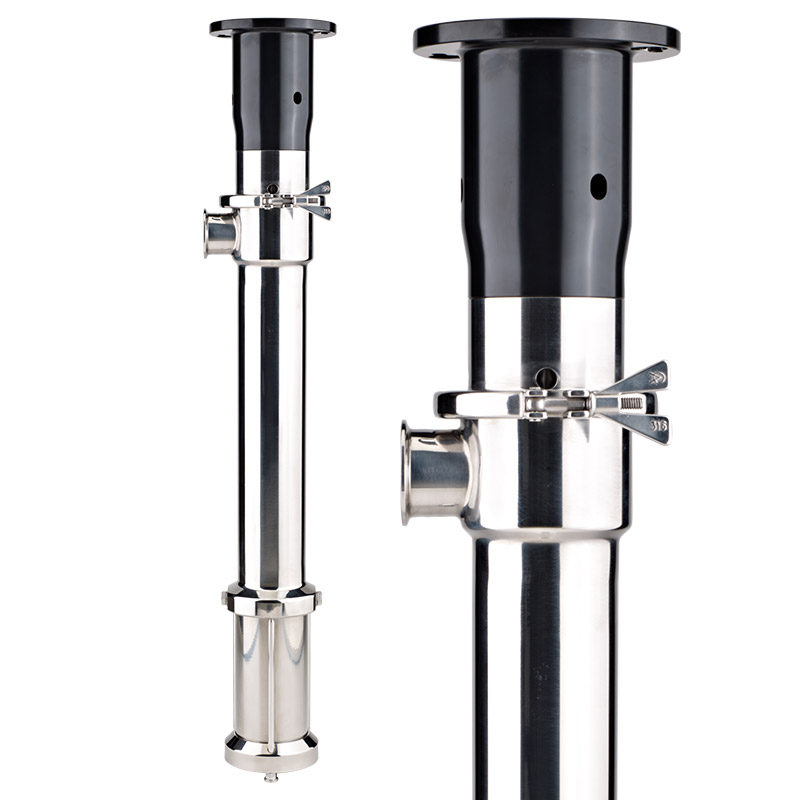

B70V progressive cavity pumping unit in PURE design
for highly viscous and pasty foodstuffs
Description:
The progressive cavity pump B70V-D 120.1 in PURE design is a powerful positive displacement pump for highly viscous and viscous media up to the limits of flowability. Depending on the application, various geared motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Also available in special immersion depths
Examples of media: viscous cosmetic products, food, etc.
Features & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
Drive motor optionally with integrated frequency inverter.
Food
Akku
Complete set
Battery pump set - Food
for the Food & Pharma sector
Description:
The new B3 Battery is a battery motor for demanding and efficient pump applications. The current-independent application range enables the greatest possible flexibility with the world's highest volume flow of a battery-powered pump (up to 180 l/m). Perfectly suited for the removal or decanting of foodstuffs.
Pumping unit equipped with Lutz Original handwheel
Features & advantages
Wear-free, particularly low-noise BLDC motor
Optimised drum emptying
Infinitely variable
Extremely high performance with low weight
Maintenance without special tools
Sealing modules of the sealless (DL) pump can be replaced
Long service life
Food
FPM

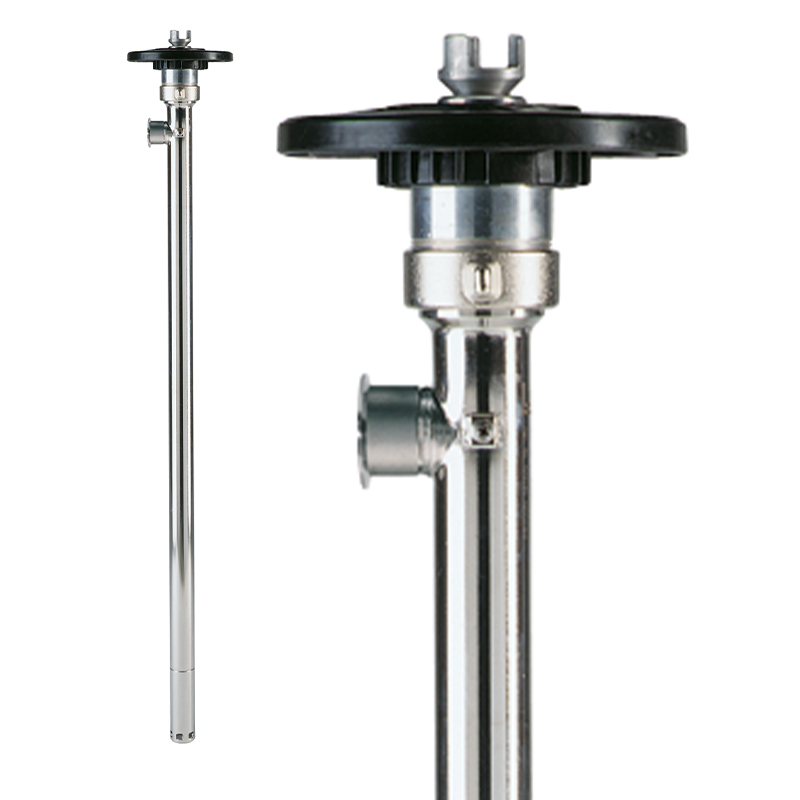

HD-E progressive cavity pumping unit in PURE design
for mineral oils, colours, food and cosmetic products
Description:
The HD-E eccentric worm-drive pump in PURE design simply transfers the advantages of the drum pump for low-viscosity media to the medium-viscosity range. The positive displacement pump has an easily detachable outer tube, a bearing head with mechanical seal and a free-running shaft with an eccentric screw as the delivery element - all of which are easy to dismantle and clean. The pumping unit can be combined with our single-phase motor. This ensures that the liquids are emptied, thus conserving important resources.
Also available in special immersion depths
Pumping unit equipped with Lutz Original handwheel
Examples of media: viscous cosmetic products, food, etc.
Features & advantages
Smooth running
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Low wear
Easily detachable outer tube
Hydraulic drum emptying system
with follower plate
Description:
The mobile, hydraulic drum emptying system with follower plate from Lutz is specially designed for the gentle emptying of drums filled with highly viscous, paste-like and viscous substances thanks to its infinitely variable operation. The food pump is suitable for highly viscous food and cosmetic products
Container/drum can be customised on request
Infinitely variable control of the follower plate via control valve
Examples of media: Lipstick, emulsion paint, ice cream, yoghurt, tomato paste, etc.
Features & advantages
Almost residue-free emptying of the drums
Pulsation-free pumping/emptying
Easy cleaning by removing the pump or the pump tube
Adjustable emptying speed
No lateral ejection of the medium due to unpressurised follower plate
Drums are secured by holding arms
Food
Stator EPDM
50 l/min.

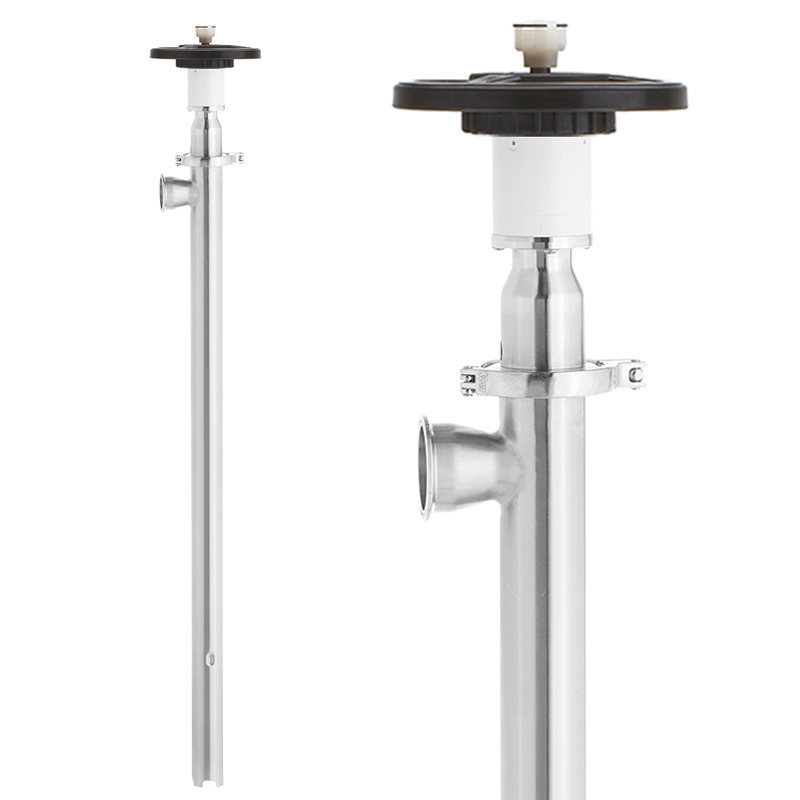

Progressing cavity pump unit B70V SanitaryPlus
for three-phase motors
Description:
The B70V SanitaryPlus food pump is a powerful positive displacement pump for highly sensitive, viscous media with and without fibres or solids up to the limits of flowability. It pumps liquid foodstuffs, active pharmaceutical ingredients and cosmetic products from a wide variety of containers and delivery packs. The pump fulfils the requirements of hygienic design and is certified in accordance with the "3-A Sanitary Standards".
Also available in special immersion depths
Equipped as standard with a support bracket and a motor quick-release fastener
Examples of media: liquid foodstuffs and luxury foods, active pharmaceutical ingredients and cosmetic products
Properties & advantages
Threadless, manually detachable quick connectors in the wetted area
Quick and easy disassembly
Quick and easy cleaning
Gentle, low-pulsation product conveyance
certified and approved in accordance with the current "3-A Sanitary Standards for Centrifugal and Positive Rotary Pumps Number 02-10"
Food
Stator EPDM
50 l/min.
Progressing cavity pump unit B70V SanitaryPlus
with reduction gearbox for electric motors
Description:
The B70V SanitaryPlus food pump is a powerful positive displacement pump for highly sensitive, viscous media with and without fibres or solids up to the limits of flowability. It pumps liquid foodstuffs, active pharmaceutical ingredients and cosmetic products from a wide variety of containers and delivery packs. The pump fulfils the requirements of hygienic design and is certified in accordance with the "3-A Sanitary Standards".
Also available in special immersion depths
Pumping unit equipped with Lutz Original handwheel
Examples of media: liquid foodstuffs and luxury foods, active pharmaceutical ingredients and cosmetic products
Properties & advantages
Threadless, manually detachable quick connectors in the wetted area
Quick and easy disassembly
Quick and easy cleaning
Gentle, low-pulsation product conveyance
certified and approved in accordance with the current "3-A Sanitary Standards for Centrifugal and Positive Rotary Pumps Number 02-10"
Food
Explosion protection
12 l/min.
Progressing cavity pump unit B70V SanitaryPlus, Ex
for three-phase motors
Description:
The B70V SanitaryPlus food pump is a powerful positive displacement pump for highly sensitive, viscous media with and without fibres or solids up to the limits of flowability. It pumps liquid foodstuffs, active pharmaceutical ingredients and cosmetic products from a wide variety of containers and delivery packs. The pump fulfils the requirements of hygienic design and is certified in accordance with the "3-A Sanitary Standards".
Also available in special immersion depths
Equipped as standard with a support bracket and a quick-release motor lock
Examples of media: liquid foodstuffs and luxury foods, active pharmaceutical ingredients and cosmetic products
Properties & advantages
Threadless, manually detachable quick connectors in the wetted area
Quick and easy disassembly
Quick and easy cleaning
quick-release coupling between motor and pump unit
Gentle, low-pulsation product delivery
certified and approved in accordance with the current "3-A Sanitary Standards for Centrifugal and Positive Rotary Pumps Number 02-10"
Food
Explosion protection
12 l/min.
Progressing cavity pump unit B70V SanitaryPlus, Ex
with reduction gearbox for electric motors
Description:
The B70V SanitaryPlus food pump is a powerful positive displacement pump for highly sensitive, viscous and viscous media up to the limits of flowability. It pumps liquid foodstuffs, active pharmaceutical ingredients and cosmetic products from a wide variety of containers and delivery packs. The pump fulfils the requirements of hygienic design and is certified in accordance with the "3-A Sanitary Standards".
Also available in special immersion depths
Pumping unit equipped with Lutz Original handwheel
Examples of media: liquid foodstuffs and luxury foods, active pharmaceutical ingredients and cosmetic products
Properties & advantages
Threadless, manually detachable quick connectors in the wetted area
Quick and easy disassembly
Quick and easy cleaning
Gentle, low-pulsation product conveyance
certified and approved in accordance with the current "3-A Sanitary Standards for Centrifugal and Positive Rotary Pumps Number 02-10"
Food
Seal FPM

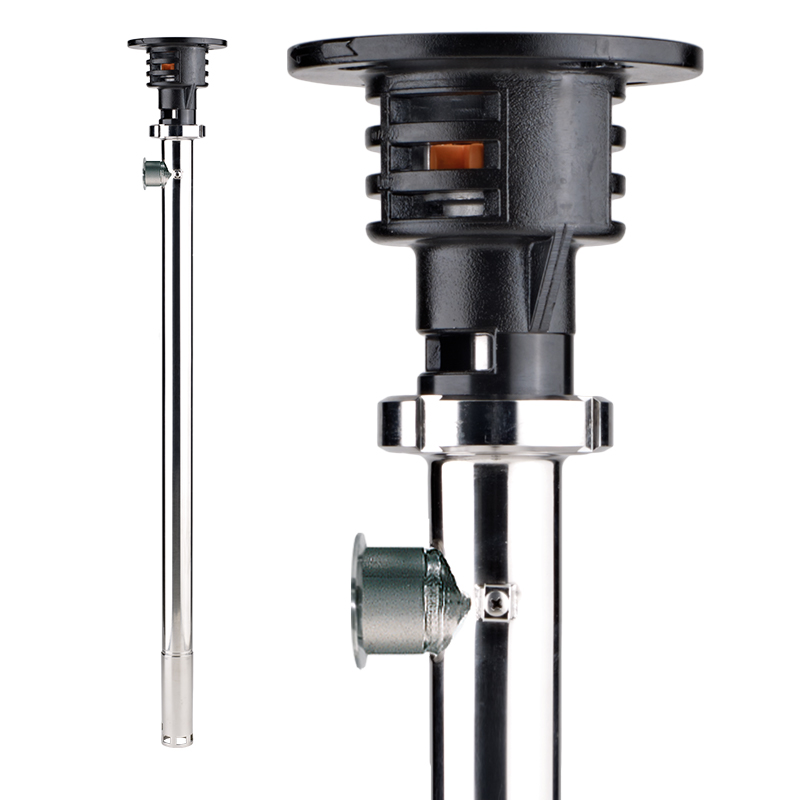

Progressing cavity pump unit B70V-D in PURE design
for three-phase motors up to 400 volts
Description:
The progressive cavity pump B70V-D in PURE design is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Also available in special immersion depths
Examples of media: viscous cosmetic products, food, etc.
Features & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
Approved in accordance with ATEX Directive 2014/34/EU, category 1/2
Food
EPDM seal
Progressing cavity pump unit B70V-D in PURE design
for three-phase motors up to 400 volts
Description:
The progressive cavity pump B70V-D in PURE design is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, you can choose from a range of different speed motors, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Also available in special immersion depths
Examples of media: viscous cosmetic products, food, etc.
Features & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
Approved in accordance with ATEX Directive 2014/34/EU, category 1/2
Food
EPDM seal

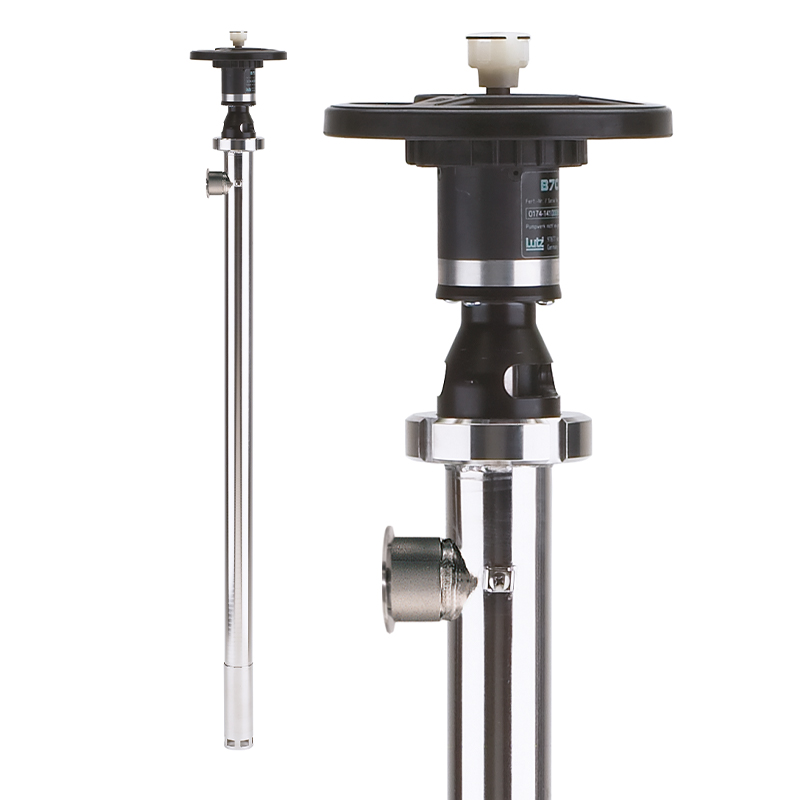

Progressing cavity pump unit B70V-SR in PURE design
with reduction gearbox for electric motors up to 230 volts
Description:
The eccentric worm-drive pump B70V-SR (with reduction gear) in PURE design is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various electric and compressed air motors are available, which you can combine with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Also available in special immersion depths
Pumping unit equipped with Lutz Original handwheel
Examples of media: viscous cosmetic products, foodstuffs, etc.
Features & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product delivery
Low wear and tear
Ideal for mobile use
Food
Seal FPM
Progressing cavity pump unit B70V-SR in PURE design
with reduction gearbox for electric motors up to 230 volts
Description:
The eccentric worm-drive pump B70V-SR (with reduction gear) in PURE design is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various electric and compressed air motors are available, which you can combine with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Also available in special immersion depths
Pumping unit equipped with Lutz Original handwheel
Examples of media: viscous cosmetic products, foodstuffs, etc.
Features & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product delivery
Low wear and tear
Ideal for mobile use
Food
FPM

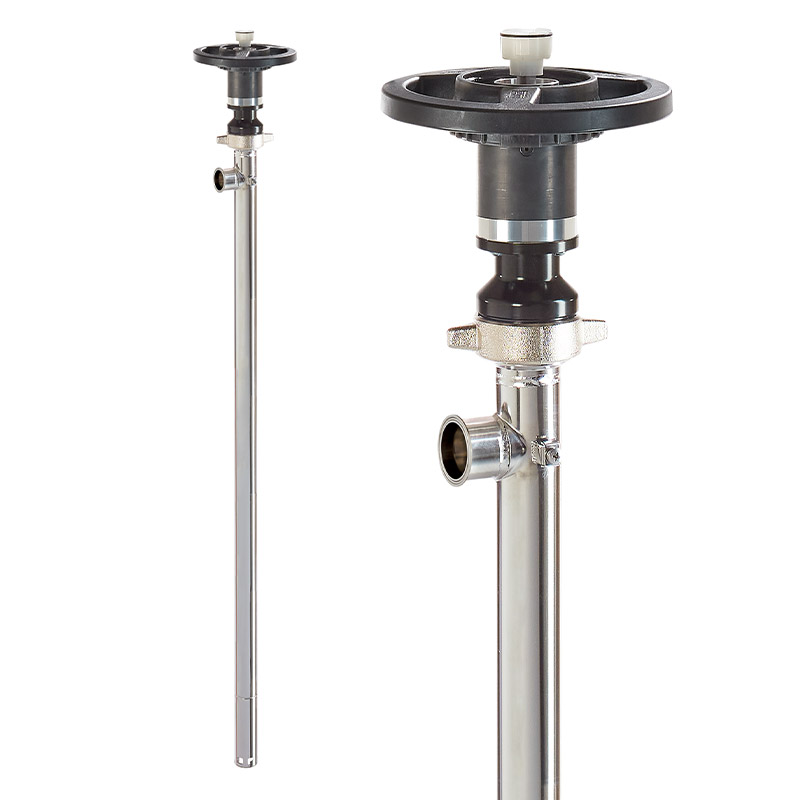

Progressing cavity pump unit HD-E-SR in PURE design
for mineral oils, colours, food and cosmetic products
Description:
The HD-E-SR eccentric worm-drive pump in the Pure version simply transfers the advantages of the drum pump for viscous media to the high-viscosity range. The positive displacement pump has an easily detachable outer tube, a bearing head with a mechanical seal and a free-running shaft with an eccentric screw as the delivery element - all of which are easy to dismantle and clean. Due to the small outer diameter of the pump tube of max. 41 mm, viscous liquids up to 30,000 mPas can be filled. The pumping unit can be combined with our electric or compressed air motors. This ensures that the liquids are emptied, thus conserving important resources.
Also available in special immersion depths
Pumping unit equipped with Lutz Original handwheel
Examples of media: viscous cosmetic products, foodstuffs, etc.
Features & advantages
Optionally driven by electric or compressed air motors
Uniform volume flow
Lightweight and versatile due to low motor weight
Continuous, low-pulsation delivery of up to 15 litres/min
Low wear and tear
Easily detachable outer tube
