Barrel pump accessories
Food
Ex-Schutz
DN 25 (1")
Universal chemical hose
for chemicals, food and hygiene products
Description:
The hose is suitable for pure chemicals, cosmetics, photographic chemicals, paints and adhesives, detergents and cleaning agents, hygiene products, as well as food and luxury foods. It is FDA and USP Class VI compliant and is electrically conductive so that it can also be used in potentially explosive environments.
Also available in special lengths on request
Nominal width: DN 13 / DN 19 / DN 25 / DN 32 / DN 38 / DN 50
Features & advantages
Operating pressure up to max. 16 bar
Colour coding: "blue/white/blue".
Complies with EU regulations 10/2011 and 1935/2004
Underpressure max 0.9 bar
Turnbuckle
for container pump B200
Description:
The turnbuckle relieves the outlet nozzle when using heavy motors.
Trolley for steel and plastic drums
for steel and plastic drums
Description:
The trolley is made of a painted tubular steel frame and is suitable for 200-litre barrels. It has a suitable holder for the respective nozzles, hoses and cables.
With 2 swivel castors and 2 fixed castors
Features & advantages
Mobility thanks to easy movement of the barrels
No heavy lifting necessary
DN 19 (3/4")
Dichtung FPM
Tri-Clamp hose connection
DN 19
Description:
The hose connection with Tri-Clamp is required for connecting the delivery hose to the pump, dispensing nozzle, discharge elbow or Tri-Clamp fittings (consisting of hose nozzle, locking clamp and seal).
For progressive cavity, drum or double diaphragm pumps (pure stainless steel)
Properties & advantages
Material: stainless steel (1.4404)
For hoses with nominal diameters DN 19 / DN 25 / DN 32 / DN 38
Explosion protection
brass

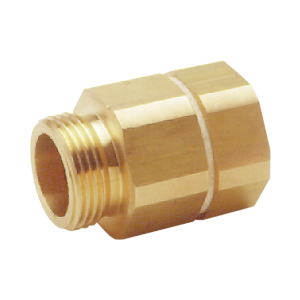

Swivel clutch
Suitable for the automatic aluminium dispensing nozzle
Description:
The swivel coupling is a rotatable connection between the hose connection and the automatic aluminium nozzle.
Materials made of brass or stainless steel
Features & advantages
Nominal sizes: Female thread G 1" and male thread G 1" or male thread G 1" and male thread G 1"
For pumping in potentially explosive environments
Suspension device
for pump Lutz B2 Vario
Description:
The suspension device is used to safely store the B2 Vario drum and laboratory pump. This protects the pumps and increases their utility value at the same time.
Precisely adapted to the B2 Vario drum pump
Features & advantages
Increases the utility value
Protection against the pumping unit or drum pump falling down
Suspension device
for pumping stations with handwheel
Description:
The suspension device is used to store the drum pumps and prevents them from falling over.
For pumping stations with handwheel
Features & advantages
Protects against falling over
Increases the utility value
FPM seals
Stainless steel union nut
for container pump B200 Niro inlet nozzle
Description:
The union nut contains a retaining ring and is required for the inlet nozzle.
for container pump B200
Features & advantages
Material: Stainless steel
Connection: S60 x 6 IG
Seals: FPM / EPDM

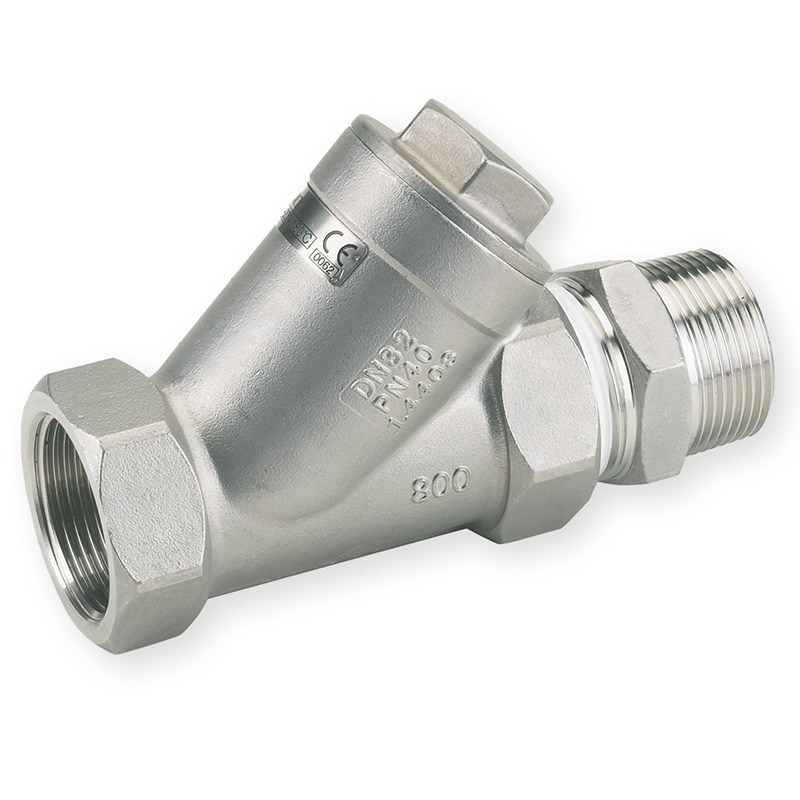

Stainless steel non-return valve
with PTFE gasket
Description:
The non-return valve prevents liquids from flowing back into the pump when it is at a standstill.
Material: Stainless steel (1.4301) / stainless steel (1.4401)
Features & advantages
Nominal size: Female thread 1 1/4" or female thread 1 1/4" / male thread 1 1/4"
Operating pressure: up to max. 16 bar
Prevents the liquid from flowing back into the pump
Food
Seal FPM

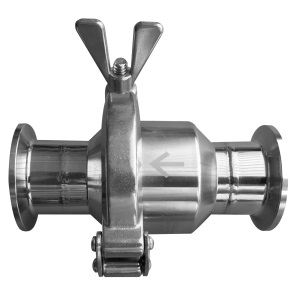

Stainless steel non-return valve
for container pump B200 Niro
Description:
The non-return valve prevents liquids from flowing back into the pump when it is at a standstill.
for container pump B200
Features & advantages
Material: Stainless steel (1.4301) / stainless steel (1.4401)
Nominal size: DN 32
Prevents the liquid from flowing back into the pump
Explosion protection
DN 25 (1")
max. 16 bar
Special chemical hose PTFE
for common and high-purity media
Description:
The hose is suitable for all common media, but also for high-purity products. It can be used either as a pressure or suction hose and complies with FDA and USP Class VI requirements. The hose is electrically conductive so that it can also be used in potentially explosive environments.
Also available in special lengths on request
Nominal diameter: DN 19 / DN 25
Properties & advantages
Operating pressure up to max. 16 bar
Colour coding: "blue/white/red"
Fulfils EU regulations 10/2011 and 1935/2004
Food
Explosion protection
DN 25 (1")
Special chemical hose FEP
for high-purity products
Description:
The hose is suitable for all common media, but also for high-purity products. It can be used either as a pressure or suction hose and complies with FDA and USP Class VI requirements.
Also available in special lengths on request
Nominal width: DN 19 / DN 25 / DN 32 / DN 38 / DN 50
Features & advantages
Operating pressure up to max. 16 bar
Colour coding: "blue/white/red"
Vacuum max. 0.9 bar
Explosion protection
DN 19 (3/4")
2 m
Solvent hose set (NBR)
for highly flammable hydrocarbons
Description:
The hose set is suitable for a wide range of commercially available solvents. The hose is electrically conductive so that it can also be used in potentially explosive environments. The set is used to connect to the pumping station or dispensing nozzle.
Also available in special lengths on request
Electrically conductive
Features & advantages
Hose connection: 1 1/4" female thread
Nominal diameter: DN 19 (3/4")
Pre-assembled hose connections
Complies with EU regulations 10/2011 and 1935/2004
Explosion protection
DN 25 (1")
max. 16 bar
Solvent hose
for highly flammable hydrocarbons
Description:
The hose is suitable for a wide range of commercially available solvents. The hose is electrically conductive so that it can also be used in potentially explosive environments.
Also available in special lengths on request
Nominal width: DN 13 / DN 19 / DN 25 / DN 32 / DN 38 / DN 50
Electrically conductive
Features & advantages
Operating pressure up to max. 16 bar
Colour coding: blue
fulfils EU regulations 10/2011 and 1935/2004
Underpressure max 0.9 bar
DN 21 (7/8")
2,5 m
SL-Bio tubing set
for vegetable oil pumps
Description:
The hose set is suitable for vegetable oils. It consists of a Slimline Bio hose with two textile braids and a smooth surface, a hose clamp and a hose connection made of polypropylene (PP). The set is used for connection to the pumping unit or the dispensing nozzle.
Also available in special lengths on request
Suitable for filling or decanting oils such as rapeseed oil and vegetable oil
Features & advantages
Hose connection 1 1/4"
Nominal diameter DN 21 (7/8")
Hose lengths from 2.5 - 6.0 m
PP
1,5 m
Set accessories B2 Vario
Description:
The set of accessories is suitable for low-viscosity, aqueous to slightly viscous media. The set is suitable for the pump B2 Vario in the PP and stainless steel version.
Also available in special lengths on request
PVDF
1,5 m
Set accessories B2 PVDF version
Description:
The B2 PVDF set accessory is suitable for low-viscosity, aqueous to slightly viscous media. The set is suitable for the pump B2 Vario & B2 Battery in the PVDF version.
Also available in special lengths on request
SafetyBox monitoring module
Can be used for Lutz drum and container pumps and B200
Description:
The monitoring module recognises minimum residual quantities of conductive liquids and issues a visual or acoustic alarm (siren/lamp) in the event of a dry/overflow.
Includes emergency stop function of the motor in the event of a critical fill level
Features & benefits
Prevents dry/overflow
Simple installation
Can be retrofitted at any time
SafetyBox monitoring module
Can be used for Lutz drum and container pumps and B200
Description:
Dynamic seals should be replaced after the prescribed operating times. With mobile pumps, it is difficult to monitor the operating time, which means that wear on important components can increase and lead to leakage. The perfect solution to prevent this wear is the monitoring module that detects leaks in seals in advance.
Simple installation by attaching a leakage sensor to the connection head of the pumping station
Features & benefits
Leaks are detected in advance
Prevents pollution of the environment and health
Safe operation
Cost-effective solution
Simple installation, can be retrofitted at any time
Plug & Play
Stainless steel
Reducing sleeve
in the stainless steel version
Description:
The reducing sleeve is suitable for connecting the quick hose coupling to the pump unit.
Internal thread 1" to 1 1/4"
1 1/2" female thread to 1 1/4" male thread
Reducing sleeve
for container pump and submersible centrifugal pump B50
Description:
The reducing sleeve is used to connect a flow meter.
Stainless steel
Seal FEP / EPDM
Quick hose coupling
in the stainless steel version
Description:
The quick hose coupling ensures a quick, tight and leak-proof connection between the pump and the hose.
Seals: NBR / FPM / FEP/EPDM
Features & advantages
Nominal diameter: DN25 (1")
DN 25 (1")
max 5 bar
1 m
PVC spiral hose
For aggressive and non-flammable liquids
Description:
The hose is suitable for aggressive and non-flammable liquids, but also for food liquids. It is made of PVC with an embedded and galvanised steel wire helix (smooth inside and outside).
Also available in special lengths on request
Nominal diameter: DN 19 / DN 25 / DN 32
Properties & advantages
Operating pressure max. 4.5 - 5 bar
fulfils EU Regulation 10/2011 and 1935/2004.
