TOPAX controller and measuring amplifier of Lutz-Jesco

Our current products represent many years of experience acquired from several generations of TOPAX controllers. Lutz-Jesco has a wide range of controllers available to meet all kinds of measuring and control requirements, in industry and in the treatment of drinking water and bathing water. Their modular design makes them adaptable and highly compatible with the other measuring and control equipment. As they can be connected directly to all kinds of sensors, there is nothing to prevent comprehensive control and analysis of the dosing process.

The new multi-channel controller

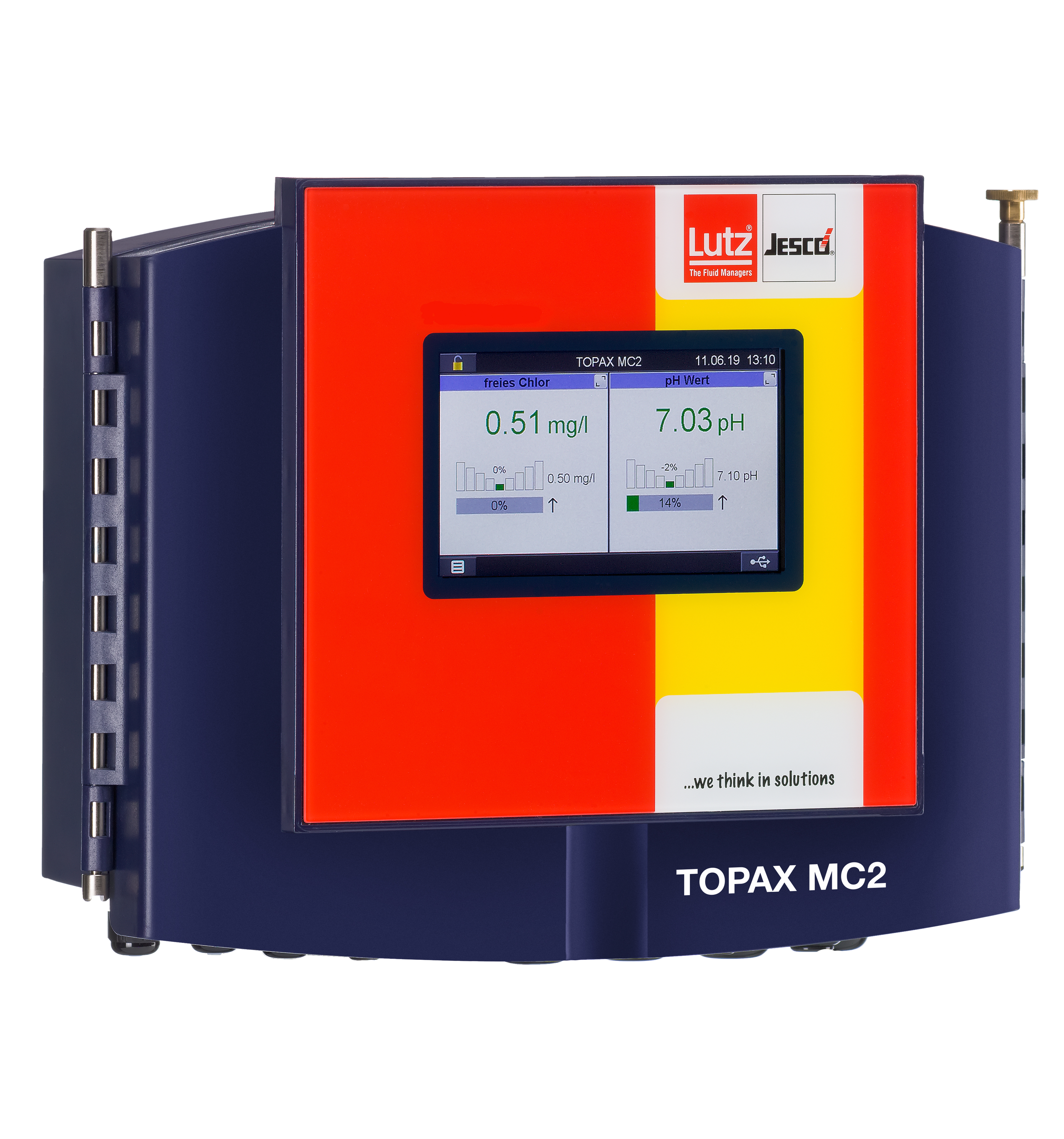

The TOPAX® MC is Lutz-Jesco GmbH's latest multi-channel controller. Its modular design makes it an adaptable and extremely competent partner for all your measurement and control technology requirements. Whether you need to measure chlorine, the pH value, Redox value, or the pH value four times, the modular design permits any combination.

The outputs can also be selected freely. For instance, you can actuate dosing pumps via an optocoupler or relay and servomotors via a relay or a 20 mA output.

The high-resolution 5 inch colour display has a user-friendly operating interface. User-friendliness is rounded off with a simple touch control and multi-lingual intuitive menu navigation.

Free digital outputs can be configured freely. Irrespective of whether they need to switch following measuring water shortage, measuring value exceedance or undercutting or other possible alarm triggers: the configuration is not subject to any limits.

You can use the four analogue outputs (0/4 – 20 mA) or the network capability to transfer the measured values to a web browser or a tele-maintenance point. A settable time interval can be used e.g. to issue an automatic reminder for wear-related sensor change. You can use the USB interface to save data (e.g. measured values and parameter settings, alarms, messages etc.) on a USB flash drive.

At a glance

Modular structure of the inputs and outputs
Up to four sensors and additionally up to four temperature sensors
Freely-configurable overviews
Difference value measurement (e.g. ΔpH)
Graphical display of the deviation from the desired setpoint
Up to four reference sets can be configured and loaded via a digital input or time control
Service entries and sensor change can be saved
Limit value control (can be used as a DIN contact for partial load operation in accordance with DIN 19643)
1 – 9 potential-free relay outputs
Web server and Modbus protocol via Ethernet
Trend Display
Large colour touch-display
Data is saved on a USB flash drive
