Measuring and Control Equipment for Metering

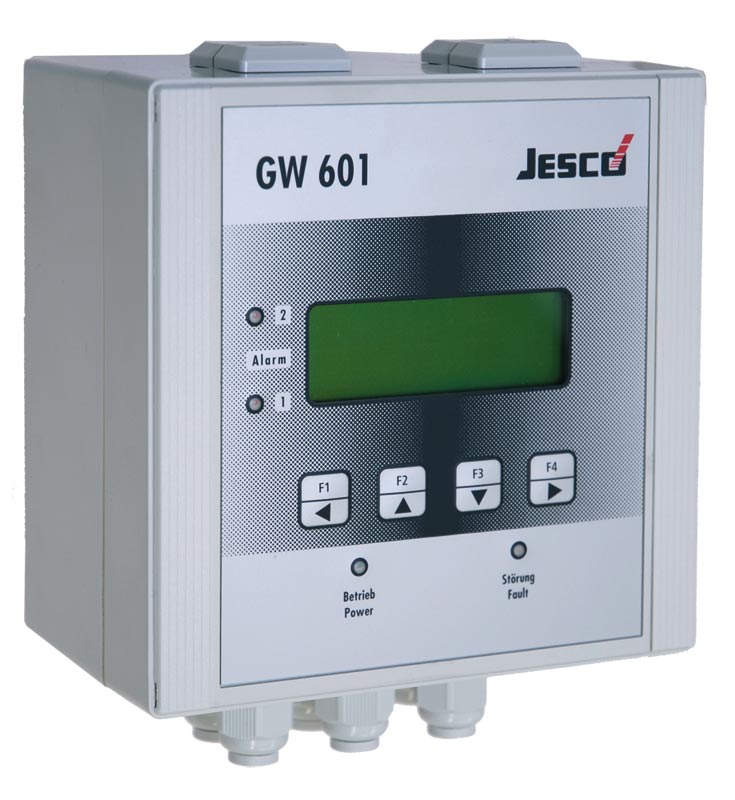

Description:Safety all along the line The gas detector GW 601 is a stationary, continuously operating measuring, monitoring and warning system, which finds its use with the application of toxic gases. The gas detector GW 601 consists of two individual components, which function as one unit: the gas monitoring and warning center GWZ 601 and the transmitter CM 601. The latter combines a sensor for chlorine gas and an electronic that amplifies the sensor signals.Features & advantages: Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-GW601-EN-BA.pdf

Description:Controlled disinfection The EASYPRO water sampling station enables standard-conform and continual measurement of the process water in public swimming pools, industrial plant and hot water installations up to 65 °C. The exact dosing of the disinfectant requires the constant measurement of the process water and the exact control of the dosing system. The modular design of the water sampling station enables its exact adaptation to suit your needs. -->Features & advantages: EASYPRO SMART components (fitted on the baseplate) TOPAX® MC multi-channel controller Peristaltic pumps Measuring cell fittings Flow control Flow adjustment valve Sampling water extraction point Temperature sensor Inflow and outflow tap Buffer solutions for adjusting the measuring cells Suction lines (not installed on the baseplate) Injection nozzles (not installed on the baseplate) The measuring cells are partially packaged separately and not pre-installed. EASYPRO SMART for swimming pools CP RP CPL Dimensions (W x H x D)mm 454 x 465 x 167 approx. Sample water requirementl/h 45 approx. Sample water infl ow and discharge Stop valve with hose clamp connector 6/8 Pressure resistancebar max. 3 Pressure loss in the water sampling stationbar 0.3 approx. Voltage supply 100 – 240 V AC, 50/60 Hz Power consumptionW max. 30 Analogue outputs for remote transmission 4 x 0/4 – 20 mA, working resistance max. 500 Ω Disturbance variable inputmA 0/4 – 20 Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional) Protection class IP65 (electronic controller) Ambient temperature°C -5 to +45 (no exposure to direct sunlight) Control characteristic P, PI, PID or PD behaviour, control direction selectable with distur-bance variable feed forward, 2-side control selectable Measuring inputs (depending on version) Number of measuring inputs 2a 3b Free chlorineCS120 excess chlorine measuring cellmg/l 0 – 15c - 0 – 15c pH valuepH single-rod measuring cellpH 2 – 12d or 0 – 14d Redox valueRedox single-rod measuring cellmV - 0 – 1000 - Conductivity conductiveConductivity measuring cell (k=1)mV - 0 – 2e, 0 – 20e or 0 – 100e TemperaturePt100°C 5 – 45 Output modules (depending on version) Number of output modules up to 4 Servomotor relay 2 x 230 V AC, 5 A (ohmic load) kΩ Potentiometer feedback: 1 – 10 Servomotor 20 mA Constant 0/4 – 20 mA output Servomotor with 20 mA feedback Relay 2 x 230 V AC, 5 A (ohmic load) Optocoupler 2 x 80 V DC, 5 mA Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYPRO-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYPRO-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-Schwimmbad-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-pool-EN-PI.pdf

Description:For assured measuring results The pH or Redox measuring equipment used for determining the pH or Redox value by the potentiometric method consists of a glass electrode, the reference electrode and the transducer.Features & advantages: Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-Electrodes_pH_Redox-EN-MB.pdf

Description:For assured measuring results Conductivity measuring cells are used in analytical procedures in combination with measuring transducers to determine the conductivity of liquids. The electrolytic conductivity is defined as the ability of a substance to conduct an electrical current. Measurement of the conductivity depends on the concentration of the medium being measured.Features & advantages: Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-Conductivity_Sensor_Conductive-EN-BB.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-Conductivity_Measuring_Cells-EN-MB.pdf

Description:Zuverlässig und individuell Mit der EASYPRO erhalten Sie ein komplett auf Ihre Bedürfnisse abgestimmtes System zur Überwachung und Regelung verschiedener Wasserparameter in Ihrem Schwimmbad. Durch den auf der EASYPRO verbauten Mehrkanalregler TOPAX® MC werden die Wasserparameter kontinuierlich gemessen und im Sollbereich gehalten. Er bietet die Möglichkeit eine Vielzahl von Aktoren und Stellgliedern anzusteuern und zeichnet sich durch seine sehr einfache und intuitive Bedienung aus. Die mehrfarbigen LEDs sorgen für eine optische Warnung, wenn die Wasserparameter den Sollbereich verlassen. -->Features & advantages: At a glance Modular structure of the inputs and outputs Up to four sensors and additionally up to four temperature sensors Freely-configurable overviews Difference value measurement (e.g. ΔpH) Graphical display of the deviation from the desired setpoint Up to four reference sets can be configured and loaded via a digital input or time control Service entries and sensor change can be saved Limit value control (can be used as a DIN contact for partial load operation in accordance with DIN 19643) 1 – 9 potential-free relay outputs Web server and Modbus protocol via Ethernet Trend Display Large colour touch-display Data is saved on a USB flash drive TOPAX® MC Housing dimensions (W x H x D)mm 302 x 240 x 107 Voltage supply 100 – 240 V AC, 50/60 Hz Power consumptionW max. 20 Analogue outputs for remote transmission 4 x 0/4 – 20 mA, working resistance max 500 Ω Disturbance variable inputmA 0/4 – 20 Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional) Protection class IP65 Ambient temperature°C -5 to +45 (no exposure to direct sunlight) Control characteristic P, PI, PID or PD behaviour, control direction selectable with disturbance variable feed forward, 2-side control selectable Measuring inputs (depending on version) Number of measuring inputs up to 4* Free chlorineAmperometric 3-electrode measuring cell with potentiostat (DMZ3.1)mg/l 0 – 15 (dependant on the measuring cell transconductance) CS120 excess chlorine measuring cellmg/l 0 – 10 (dependant on the measuring cell transconductance) Diaphragm-covered measuring cellmg/l 0 – 2 or 0 – 10(dependant on the measuring cell) Chlorine dioxideAmperometric 3-electrode measuring cell with potentiostat (DMZ3.1)mg/l 0 – 15 (dependant on the measuring cell transconductance) CS120 excess chlorine measuring cellmg/l 0 – 10 (dependant on the measuring cell transconductance) Diaphragm-covered measuring cellmg/l 0 – 2(dependant on the measuring cell) Total chlorineDiaphragm-covered measuring cellmg/l 0 – 10 (dependant on the measuring cell) pH valuepH single-rod measuring cellpH 0 – 14 (dependant on the single-rod measuring chain) Redox valueRedox single-rod measuring cellmV 0 – 1000 (dependant on the single-rod measuring chain) Conductivity conductiveConductivity measuring cell (k=1)mS/cm 0 – 2, 0 – 20 or 0 – 100(Depending on the configuration, corresponds to approx. 0 – 1 % or 0 – 5 % salt content) TemperaturePt100°C -10 bto +90 5 – 60 (configurable) Output modules (depending on version) Servomotor relay 2 x 230 V AC, 5 A (ohmic resistive load) kΩ Potentiometer feedback: 1 – 10 Servomotor 20 mAmA Constant 0/4 – 20 mA output Servomotor with 20 mA feedback Relays 2 x 230 V AC, 5 A (ohmic resistive load) Optocoupler 2 x 80 V DC, 5 mA Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-TOPAX_MC-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-TOPAX_MC-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-TOPAX-MC-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-TOPAX-MC-EN-PI.pdf

Description:For assured measuring results The automatic temperature measurement of water types is made possible by the resistance thermometer of type Pt 100.

Description:Reliable and individual Designed to meet your every need, the EASYPRO system monitors and controls a range of water parameters in your swimming pool. The TOPAX® MC multi-channel controller installed in the EASYPRO subjects the water parameters to constant measurement, keeping them within the target range. It enables you to control a large number of actuators and permits easy and intuitive Operation. The multi-coloured LEDs provide an optical warning if the water parameters leave the target range. -->Features & advantages: EASYPRO components (fitted on the baseplate): TOPAX® MC multi-channel controller Measuring cells and measuring cell fittings Sample water filter Flow control Flow controller DFR 45 with sampling water extraction point and installed temperature sensor Inflow and outflow tap Bracket for buffer solutions and buffer solutions for adjusting the measuring cells Multi-coloured LEDs Cover The measuring cells are partially packaged separately and not pre-installed. EASYPRO for swimming pools MB-C ME-C MC-C MD-C MP-C MK-C MBB-C MEE-C Dimensions (W x H x D)with covermm 500 x 530 x 117 approx. 500 x 933 x 128 approx. - - without covermm 490 x 490 x 117 approx. 490 x 900 x 117 approx. 900 x 490 x 117 approx. 900 x 490 x 117 approx. Sample water requirementl/h 30 approx. 2 x 30 approx. Sample water inflow and discharge PE hose 6/8 + stop valve with G1/4 connection Pressure resistancebar max. 6 max. 6, air gap required max. 6 Pressure loss in the water sampling stationbar 0.3 approx. 2 x 0,3 approx. Mesh size sample water filterµm 300 Voltage supply 100 – 240 V AC, 50/60 Hz Power consumptionW max. 20 Analogue outputs for remote transmission x 0/4 – 20 mA, working resistance max. 500 Ω Disturbance variable inputmA 0/4 – 20 Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional) Protection class IP65 (electronic controller) Ambient temperature°C -5 to +45 (no exposure to direct sunlight) Control characteristic P, PI, PID or PD behaviour, control direction selectable with disturbance variable feed forward, 2-side control selectable v inputs (depending on version) Number of measuring inputs 2a 3b 4c 3b 2 x 1 2 x 2a Free chlorinemperometric 3-electrode measuring cell with potentiostat (DMZ3.1)mg/l 0 – 15 d - 0 – 15d - 0 – 15 d 2 x 0 – 15 - Diaphragm-covered measuring cellmg/l - - - 0 – 10e - - Total chlorineDiaphragm-covered measuring cellmg/l - - - - 0 – 10e - pH valuepH single-rod measuring cellpH 2 – 12f or 0 – 14f 2 x 2 – 12f or 2 x 0 – 14f Redox valueRedox single-rod measuring cellmV - 0 – 1000 - 2 x 0 – 1000 Conductivity conductiveConductivity measuring cell (k=1)mS/cm - 0 – 2g),0 – 20g) or 0 – 100g) - TemperaturePt100°C 5 – 45 2 x 5 – 45 Output modules (depending on version) Number of output modules up to 4 Servomotor relay 2 x 230 V AC, 5 A (ohmic load) kΩ Potentiometer feedback: 1 – 10 Servomotor 20 mA Constant 0/4 – 20 mA output Servomotor with 20 mA feedback Relays 2 x 230 V AC, 5 A (ohmic load) Optocoupler 2 x 80 V DC, 5 mA Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYPRO_SMART-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYPRO_SMART-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-SMART-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-SMART-EN-PI.pdf

Description:Zuverlässig und individuell Mit der EASYPRO erhalten Sie ein komplett auf Ihre Bedürfnisse abgestimmtes System zur Überwachung und Regelung verschiedener Wasserparameter in Ihrem Schwimmbad. Durch den auf der EASYPRO verbauten Mehrkanalregler TOPAX® MC werden die Wasserparameter kontinuierlich gemessen und im Sollbereich gehalten. Er bietet die Möglichkeit eine Vielzahl von Aktoren und Stellgliedern anzusteuern und zeichnet sich durch seine sehr einfache und intuitive Bedienung aus. Die mehrfarbigen LEDs sorgen für eine optische Warnung, wenn die Wasserparameter den Sollbereich verlassen. -->Features & advantages: EASYPRO COMPACT components (fitted on the baseplate): TOPAX® MC multi-channel controller Measuring cell fittings Sample water filter Flow control Flow controller DFR 45 with sampling water extraction point Temperature sensor Inflow and outflow tap Bracket for buffer solutions and buffer solutions for adjusting the measuring cells EASYPRO COMPACT for swimming pools EASYPRO COMPACT Dimensions (W x H x D)mm 454 x 496 x 161 approx. Sample water requirementl/h 30 approx. Sample water infl ow and discharge PE hose 6/8 + stop valve with G1/4 connection Pressure resistancebar max. 6 Pressure loss in the water sampling stationbar 0.3 approx. Mesh size sample water fi lterµm 300 Voltage supply 100 – 240 V AC, 50/60 Hz Power consumptionW max. 20 Analogue outputs for remote transmission 4 x 0/4 – 20 mA, working resistance max. 500 Ω Disturbance variable inputmA 0/4 – 20 Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional) Protection class IP65 (electronic controller) Ambient temperature°C -5 to +45 (no exposure to direct sunlight) Control characteristic P, PI, PID or PD behaviour, control direction selectable with distur-bance variable feed forward, 2-side control selectable v inputs (depending on version) Number of measuring inputs 3* Free chlorineAmperometric 3-electrode measuring cell with potentiostat (DMZ3.1)mg/l 0 – 15 (dependant on the measuring cell transconductance) pH valuepH single-rod measuring cellpH 2 – 12 or 0 – 14(depending on the single-rod measuring chain) Redox value Redox single-rod measuring cellmV 0 – 1000 TemperaturePt100°C 5 – 45 Output modules (depending on version) Number of output modules up to 4 Relay 2 x 230 V AC, 5 A (ohmic load) Optocoupler 2 x 80 V DC, 5 mA Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYPRO_COMPACT-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-COMPACT-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-COMPACT-EN-PI.pdf

Description:Data transfer from TOPAX DX The TopReader software reads out the internal memory card of the TOPAX DX multi-channel controller. In this way measurement values and messages can be taken over from the controller to a computer. The software is available free of charge in the download area after registering.

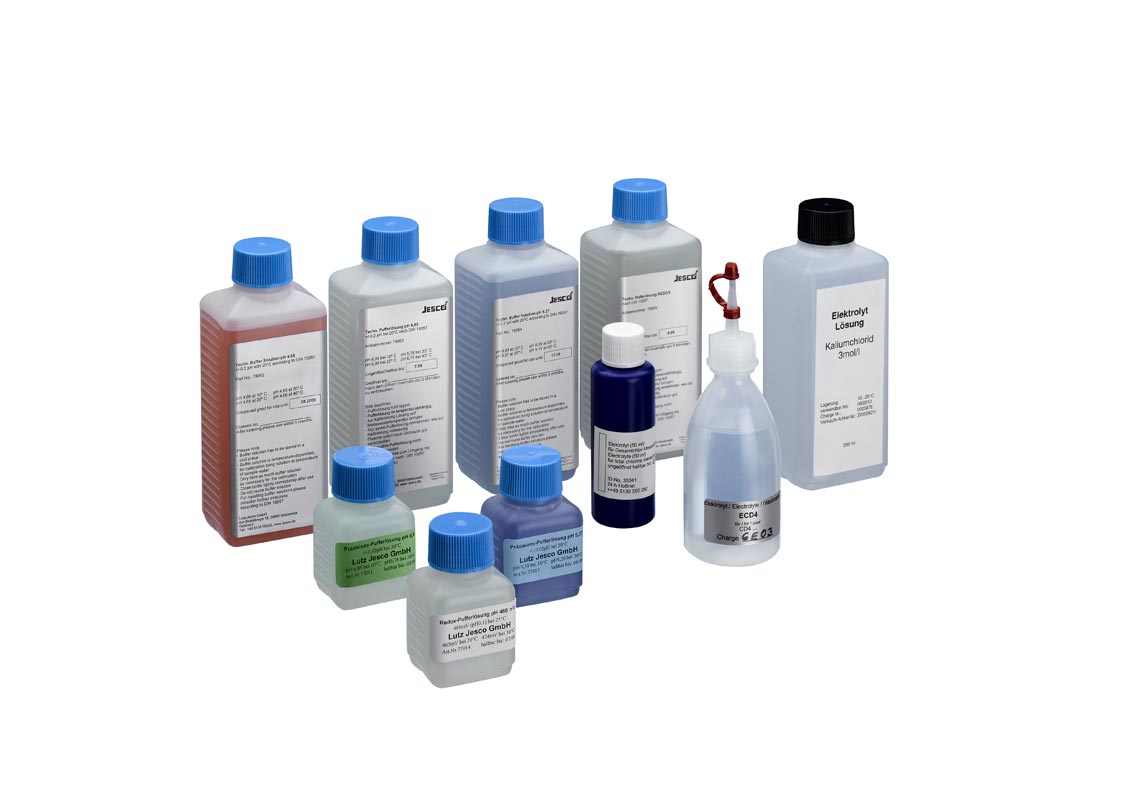

Description:Accurate measuring cell calibration To achieve highly accurate measurements of water properties, regular calibration and comparative measurements of the cells are required, for example, pH, ORP, compared with high-quality buffer solutions.

Description:Remote access All TOPAX controllers from Lutz-Jesco are equipped with a network interface. Using the software TopView, the customer is in the position to read out and visualise the current measurements and statuses of each TOPAX controller remote via an RS 485 Bus network at any time. Up to 15 controllers can be addressed at the same time.Features & advantages: Display and monitoring of the TOPAX controllers RS 485 Bus network Automatic recognition of the TOPAX variants Connection of up to 15 controllers Connection of a crossbar switch with up to 8 digital in-/ outputs Display and archiving of all occurring alarms Automatic daily log Daily operational log Free trial version Windows Vista compatible Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-TopView_3-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-Interface_Converter_RS232_485-DE_EN-BB.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-Computer_Interface_RS485-EN-MB.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-TopView3-EN-PI.pdf

Description:For assured measuring results In order to monitor the disinfection process, a measuring cell has been developed which is working according to the principle of depolarization of a galvanic element. The measuring cell contains a platinum and a copper electrode. With the sample water acting as the electrolyte, galvanic potential develops between the two electrodes, depending on the electrode material.Features & advantages: Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg4/Spec_Sheet-Chlorine_Measuring_Cells.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-Chlorine_Sensors-EN-MB.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg4/Spec_Sheet-Chlorine_Sensor_GCM.pdf

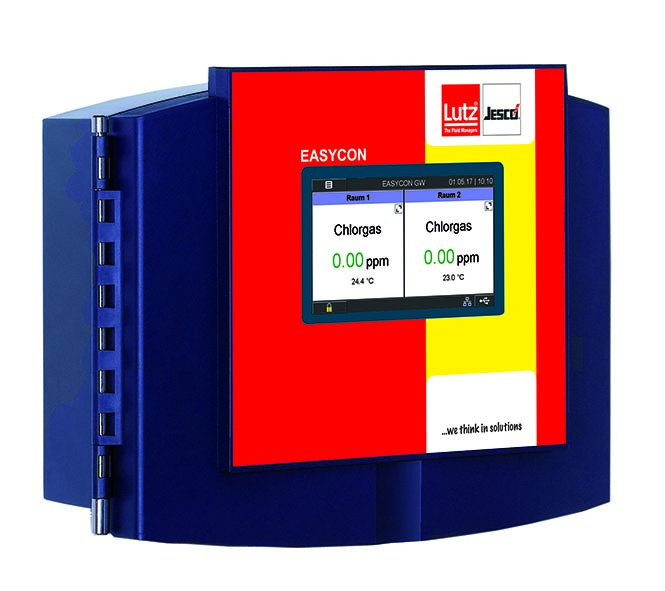

Description:A versatile partner Working with dangerous gases involves fulfilling high safety conditions for the protection of people and the environment. Included in such safety measures is the monitoring of the ambient air with gas warning devices, which register the increased concentration of gases in the shortest of time and release an alarm if the maximum limits are exceeded. Such gas warning devices are typically used in chlorine gas areas of swimming pools or water works, but also in other installations in industry with ozone and other dangerous gases.Features & advantages: For use with chlorine gas, chlorine dioxide and ozone Compact wall casing Up to 4 sensors and additionally up to 4 temperature sensors Two freely adjustable alarm thresholds of the alarm for each sensor 3 – 9 potential-free relay outputs 4 Analogue outputs 0/4 – 20 mA Large colour touch-display Data is saved on a USB flash drive Measuring rangesChlorine gasppm 0 – 10.00 Chlorine dioxide 0 – 1.00 Ozone 0 – 1.00 Number of sensors Up to 4 sensors and additionally up to 4 temperature sensors Relay outputs max. 5 A, 250 V AC Switch point alarm 2 Analog outputs 4 x 0/4 – 20 mA, working resistance max. 500 Ohm Display Colour touch-display (5.0 inch; 800 x 480 pixels) Voltage supply 100 – 240 V AC, 50/60 Hz Power consumptionW max. 20 Protection classGas warning device IP65 Sensor IP54 (except for gas inlet) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYCON_GW-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYCON_GW-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYCON_GW-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYCON_GW-EN-PI.pdf

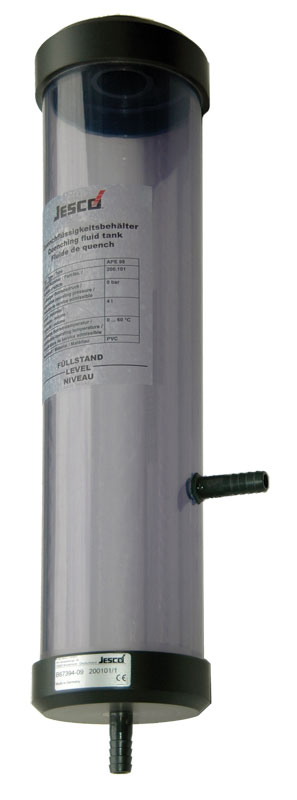

Description:For a perfect dosing result When accuracy, reliability and versatility across the application spectrum Is required, the Quench Tank is the only choice.

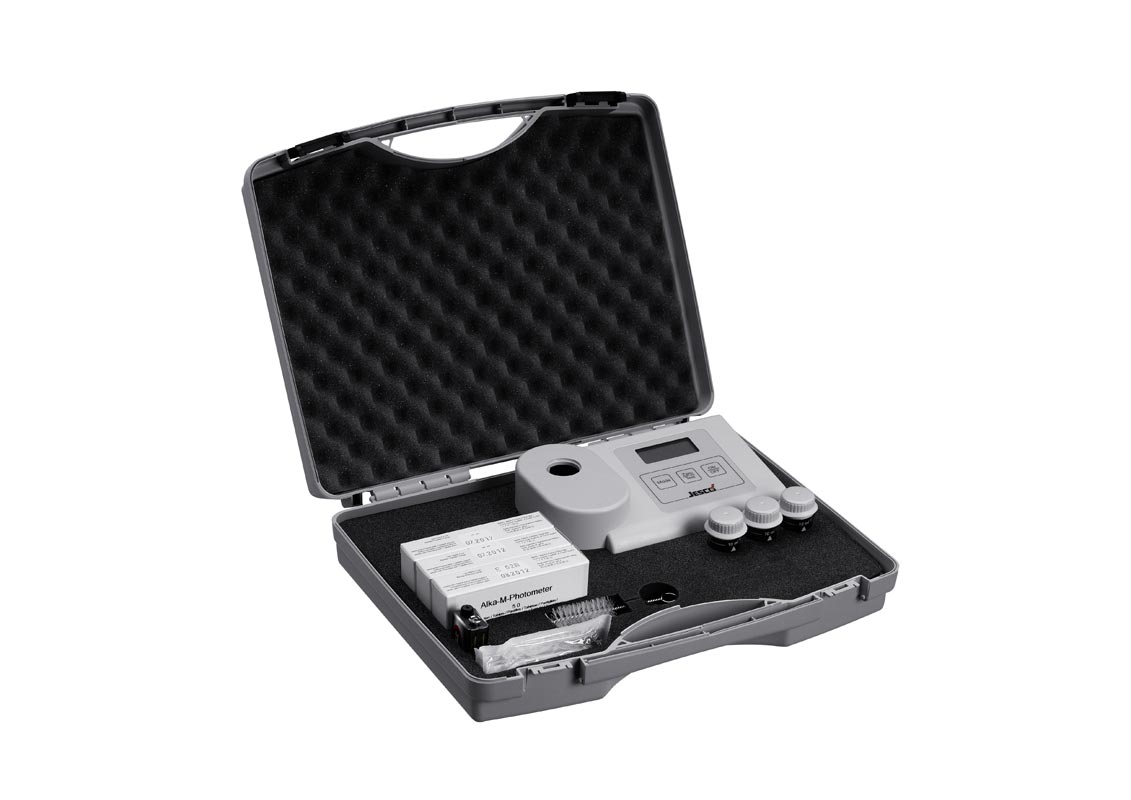

Description:Simple and fast measuring cell calibration The operation results of control systems in water treatment decisively depend on the quality of the sensors signal. That's why sensors calibration is of central importance. Especially in the case of systems with several measuring points it is crucial to provide for a simple and fast operation of the manual comparison measurement. Our photometer meets these requirements and offers additionally a high measuring accuracy and a robust construction.Features & advantages: Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-Swimming_Pool_Photometer-EN-MB.pdf

Description:Zuverlässig und individuell Mit der EASYPRO erhalten Sie ein komplett auf Ihre Bedürfnisse abgestimmtes System zur Überwachung und Regelung verschiedener Wasserparameter in Ihrem Schwimmbad. Durch den auf der EASYPRO verbauten Mehrkanalregler TOPAX® MC werden die Wasserparameter kontinuierlich gemessen und im Sollbereich gehalten. Er bietet die Möglichkeit eine Vielzahl von Aktoren und Stellgliedern anzusteuern und zeichnet sich durch seine sehr einfache und intuitive Bedienung aus. Die mehrfarbigen LEDs sorgen für eine optische Warnung, wenn die Wasserparameter den Sollbereich verlassen. -->Features & advantages: EASYPRO components (fitted on the baseplate) TOPAX® MC multi-channel controller Measuring cells and measuring cell fittings Sample water filter Flow control Flow controller DFR 45 with sampling water extraction point and installed temperature sensor Inflow and outfl ow tap Bracket for buffer solutions and buffer solutions for adjusting the measuring cells Multi-coloured LEDs Cover The measuring cells are partially packaged separately and not pre-installed. EASYPRO for industrial applications 1 2 3 4 1/1 2/2 Dimensions (W x H x D)with covermm 500 x 530 x 117 approx. 500 x 933 x 128 approx. - - without covermm 490 x 490 x 117 approx. 490 x 900 x 117 approx. 900 x 490 x 117 approx. 900 x 490 x 117 approx. Sample water requirementWith CS120 excess chlorine measuring celll/h 45 approx. - With all other measuring cells 30 approx. 2 x 30 approx. Sample water inflow and discharge PE hose 6/8 + stop valve with G1/4 connection Pressure resistanceWith diaphragm-covered measuring cellbar max. 6, air gap required With all other measuring cells max. 6 Pressure loss in the water sampling stationbar 0,3 approx. Mesh size sample water filterµm 300 Voltage supply 100 – 240 V AC, 50/60 Hz Power consumptionW max. 20 Analogue outputs for remote transmission 4 x 0/4 – 20 mA, working resistance max. 500 Ω Disturbance variable inputmA 0/4 – 20 Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional) Protection class IP65 (electronic controller) Ambient temperature°C -5 to +45 (no exposure to direct sunlight) Control characteristic P, PI, PID or PD behaviour, control direction selectable with disturbance variable feed forward, 2-side control selectable v inputs (depending on version) Number of measuring inputs 1 2a) 3b) 4c) 2 x 1 2 x 2a) BromineDiaphragm-covered measuring cellmg/l 0 – 5e) - Free chlorineAmperometric 3-electrode measuring cell with potentiostat (DMZ3.1)mg/l 0 – 15d) 2 x0 – 15d) CS120 excess chlorine measuring cellmg/l 0 – 10d) - Diaphragm-covered measuring cellmg/l 0 – 10e) - Chlorine dioxideAmperometric 3-electrode measuring cell with potentiostat (DMZ3.1)mg/l 0 – 15d) - CS120 excess chlorine measuring cellmg/l 0 – 10d) - Diaphragm-covered measuring cellmg/l 0 – 2e) - Total chlorineDiaphragm-covered measuring cellmg/l 0 – 10e)) - OzonMembranbedeckte Messzellemg/l 0 – 2e) - pH valuepH single-rod measuring cellpH 2 – 12f) or 0 – 14f) 2 x 2 – 12f) or2 x 0 – 14f) Redox valueRedox single-rod measuring cellmV 0 – 1000 2 x 0 – 1000 Conductivity conductiveConductivity measuring cell (k=1)mS/cm 0 – 2g), 0 – 20g) oder 0 – 100g) 2 x 0 – 2g), 0 – 20g) oder 0 – 100g) ChloriteDiaphragm-covered measuring cellmg/l 0 – 2e) - Hydrogen peroxideDiaphragm-covered measuring cellmg/l 0 – 200e) - TemperaturePt100°C 5 – 45 (standard version)5 – 60 (can be configured via the Matchcode ordering system) Output modules (depending on version) Number of output modules up to 4 2 x up to 4 Servomotor relay 2 x 230 V AC, 5 A (ohmic load) kΩ Potentiometer feedback: 1 – 10 Servomotor 20 mA Constant 0/4 – 20 mA output Servomotor with 20 mA feedback Relay 2 x 230 V AC, 5 A (ohmic load) Optocoupler 2 x 80 V DC, 5 mA Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYPRO-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg4/LJ-EASYPRO-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-Industrie-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-EASYPRO-industry-EN-PI.pdf
