Emptying containers (IBC)
(1) Removal from the top - drum pump from 1200 mm or B50
(2) Removal from below - B200
Unsere Produkte
Our complete range of container pumps
Horizontal

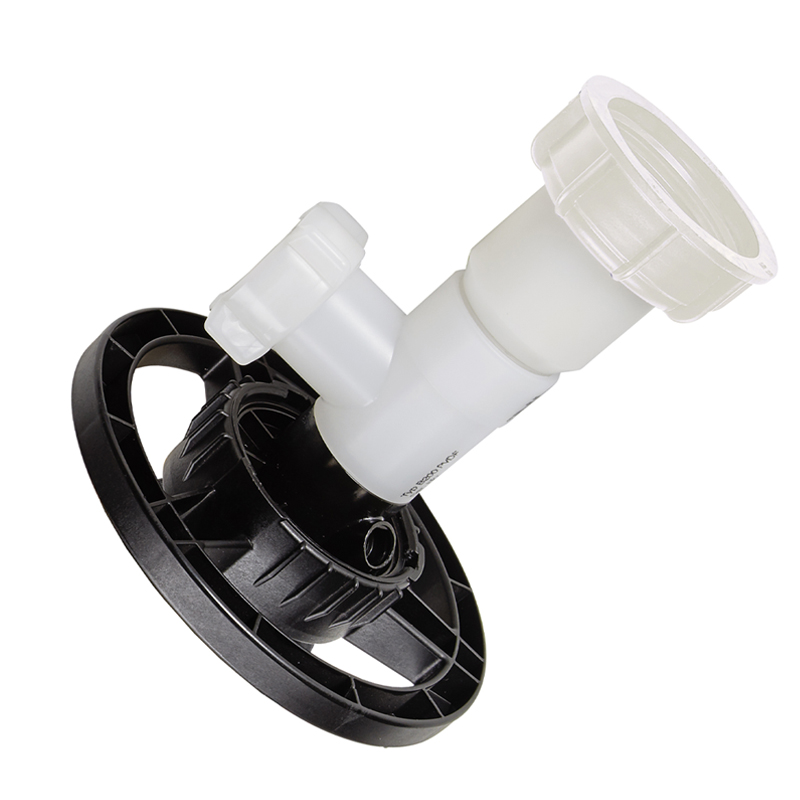

Pump set B200 PVDF
for concentrated acids and alkalis
Description:
The horizontal pump set is suitable for emptying highly aggressive, aqueous to slightly viscous media from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Perfectly suited for the removal of concentrated acids and alkalis.
Optionally with leakage detection (safety box)
Horizontal connection at the bottom of the container
IBC connection: 2" NPS
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Simple installation
Easy to dismantle
Low space requirement
Automatic emergency stop function of the motor when leakage is detected
horizontal
Pump set B200 PVDF
for concentrated acids and alkalis
Description:
The horizontal pump set is suitable for emptying highly aggressive, aqueous to slightly viscous media from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Perfectly suited for the removal of concentrated acids and alkalis.
Optionally with leakage detection (safety box)
Horizontal connection at the bottom of the container
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Simple installation
Easy to dismantle
Small space requirement
Automatic emergency stop function of the motor when leakage is detected
Foodstuffs
horizontal
Impeller
Pump tube B200 Niro
for Foodstuffs (PURE series)
Description:
The horizontal Pump tube is suitable for emptying aqueous and fatty Foodstuffs from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Depending on the application, various Motors are available that you can combine with the Pump tube at any time. This gives you flexibility at all times and saves important resources.
Horizontal connection at the bottom of the container
Pump tube equipped with Lutz Original handwheel
Also for alcoholic Foodstuffs, cosmetics and pharmaceutical products as well as flammable cleaning agents
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Physiologically safe version (PURE)
Hygienic/aseptic connections
Small space requirement
Suitable for food contact in accordance with EC 1935/2004 and FDA
horizontal
Impeller
Pump tube B200 Niro*
for highly flammable liquids
Description:
The horizontal Pump tube is suitable for emptying highly aggressive, low-viscosity, flammable and explosive liquids from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Depending on the application, various Motors are available, which you can combine with the Pump tube at any time. This gives you flexibility at all times and saves important resources.
Horizontal connection at the bottom of the container
Pump tube equipped with Lutz Original handwheel
Suitable for emptying alternative fuels, oils and flammable liquids
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Explosion proof versions for applications in hazardous areas(Zone 1 and 2)
Easy to dismantle
low space requirement
Foodstuffs
horizontal
Pump tube B200 Niro*
for Foodstuffs (PURE series)
Description:
The horizontal Pump tube is suitable for emptying aqueous and fatty Foodstuffs from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Depending on the application, various Motors are available that you can combine with the Pump tube at any time. This gives you flexibility at all times and saves important resources.
Horizontal connection at the bottom of the container
Pump tube equipped with Lutz Original handwheel
Also for alcoholic Foodstuffs, cosmetics and pharmaceutical products as well as flammable cleaning agents
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Connections: suitable for foodstuffs
Small space requirement
Approved according to FDA and Regulation (EC) 1935/2004
horizontal
Pump tube B200 Niro*
for highly flammable liquids
Description:
The horizontal Pump tube is suitable for emptying highly aggressive, low-viscosity, flammable and explosive liquids from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Depending on the application, various Motors are available, which you can combine with the Pump tube at any time. This gives you flexibility at all times and saves important resources.
Horizontal connection at the bottom of the container
Pump tube equipped with Lutz Original handwheel
Suitable for emptying alternative fuels, oils and flammable liquids
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Explosion proof versions for applications in hazardous areas(Zone 1 and 2)
Easy to dismantle
low space requirement
Foodstuffs
Explosion protection
horizontal

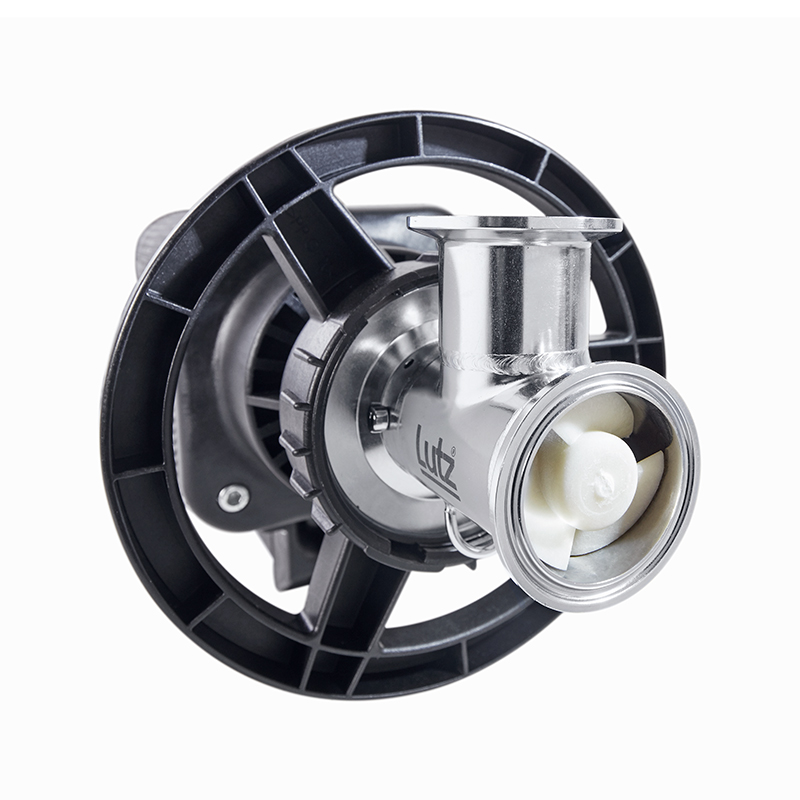

Pump tube B200 Niro*
for Foodstuffs (PURE Ex series)
Description:
The horizontal Pump tube is suitable for emptying aqueous and fatty Foodstuffs from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Depending on the application, various Motors are available that you can combine with the Pump tube at any time. This gives you flexibility at all times and saves important resources.
Horizontal connection at the bottom of the container
Pump tube equipped with Lutz Original handwheel
Also for alcoholic Foodstuffs, cosmetics and pharmaceutical products as well as flammable cleaning agents
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Connections: suitable for foodstuffs
Small space requirement
Approved in accordance with ATEX Directive 2014/34/EU, category 1/2
Approved according to FDA and Regulation (EC) 1935/2004
horizontal
Pump tube B200 PVDF
for concentrated acids and alkalis
Description:
The horizontal Pump tube is suitable for emptying highly aggressive, aqueous to slightly viscous media from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Perfectly suited for the removal of concentrated acids and alkalis.
Optionally with leakage detection (safety box)
Horizontal connection at the bottom of the container
IBC connection: S60 x 6
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Simple installation
Easy to dismantle
Small space requirement
Automatic emergency stop function of the motor when leakage is detected
horizontal
Impeller
Pump tube B200 PVDF
for concentrated acids and alkalis
Description:
The horizontal Pump tube is suitable for emptying highly aggressive, aqueous to slightly viscous media from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Perfectly suited for the removal of concentrated acids and alkalis.
Horizontal connection at the bottom of the container
IBC connection: S60 x 6
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Simple installation
Easy to dismantle
low space requirement
Horizontal
Pump tube B200 PVDF
for concentrated acids and alkalis
Description:
The horizontal Pump tube is suitable for emptying highly aggressive, aqueous to slightly viscous media from IBC containers or tanks and is the perfect alternative to vertical Drum pumps. Perfectly suited for the removal of concentrated acids and alkalis.
Optionally with leakage detection (safety box)
Horizontal connection at the bottom of the container
IBC connection: 2" NPS
Properties & advantages
Optionally with electric or compressed air drive
Low loss of medium when disconnected
Simple installation
Easy to dismantle
Low space requirement
Automatic emergency stop function of the motor when leakage is detected
IBC - Containers / Tanks
Stainless steel shaft
Impeller

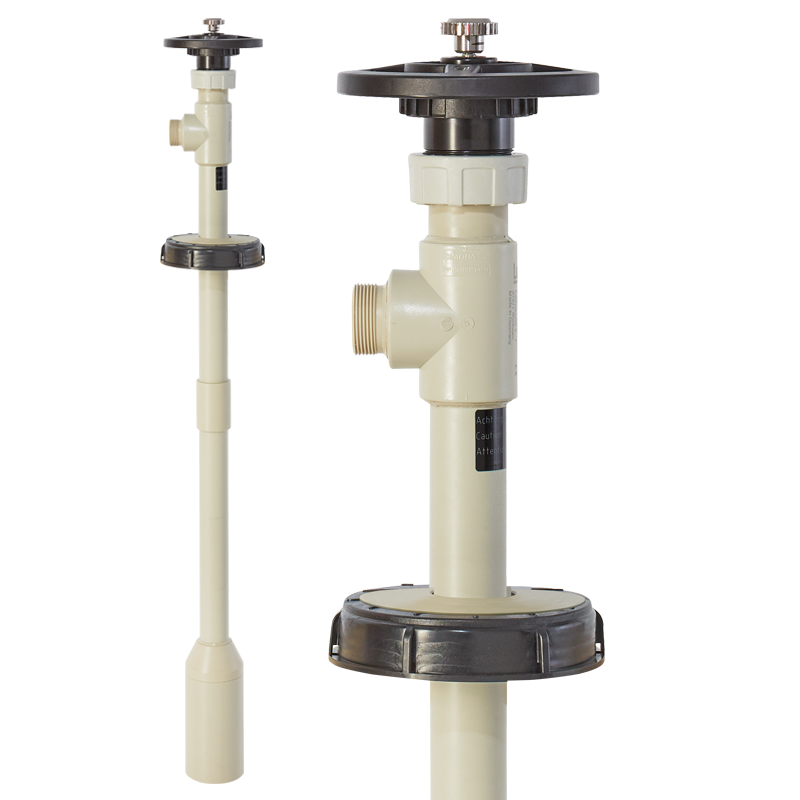

Pump tube vertical Container pumps B50
for chemical transfer
Description:
The Container pump is suitable for the rapid transfer of corrosive, aqueous to slightly viscous media. Perfectly suited for the removal or transfer of chemical liquids.
Examples of media: Battery acid, iron sulphate, glycols, phosphoric acid, hydrochloric acid, citric acid, etc.
Pump tubes equipped with Lutz original handwheel
For filling or decanting IBC containers
Properties & advantages
Adjustable container adapter for standard container openings
High delivery capacity
Optimised container emptying
Low wear
Variable adaptation to different container openings
quick and easy to dismantle due to few components
