Solenoid-Diaphragm Dosing Pumps MAGDOS LK
*Abbildung kann vom tatsächlichen Produkt abweichen

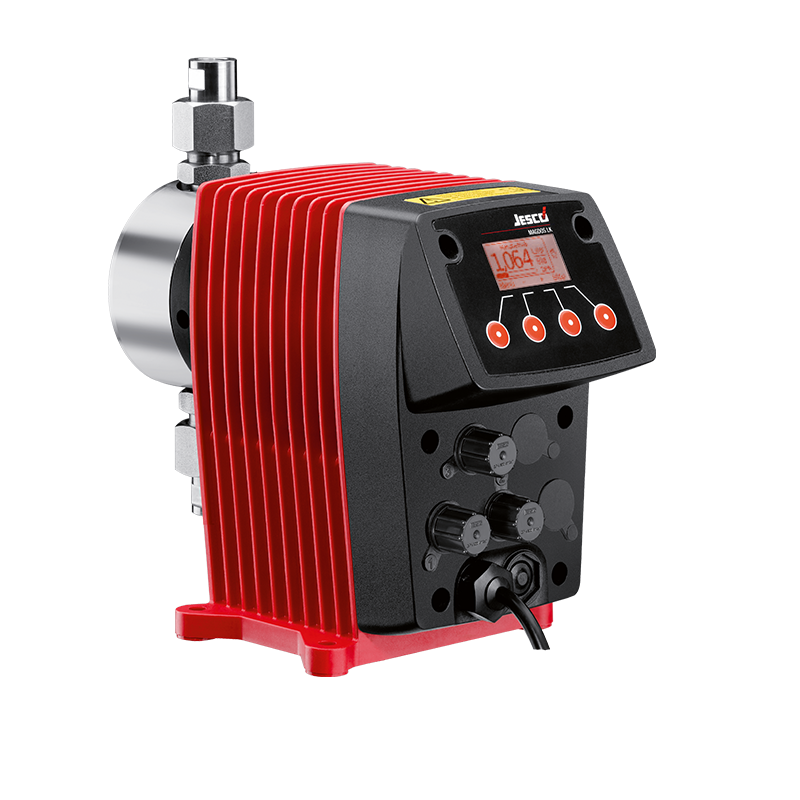

MAGDOS LK - Simple to use and space-saving ! MAGDOS LK plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or via an external control contact. The MAGDOS LK doesn't just impress with its elegant design; the graphical display with a multi-language menu as well as the dosing pump's operation using the integrated keyboard simplifies its use.
Features & benefits
- Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig
- Power supply 230 V ± 10 %, 50/60 Hz, IP65
or 115 V ± 10 %, 50/60 Hz - Dosing head ventilation (plastic version)
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF and stainless steel
- Stroke frequency can be precisely adjusted via the keyboard
- Graphic display with multi-language menu
- Pulse input (increase and reduction)
- Level input with early warning and main alarm
- Release input for external start/stop
- Supply amount displayed in various units
- Maximum delivery rate can be limited
- Energy-saving "Eco-mode" is available
- Stroke feedback output
- CSA and UL certified
