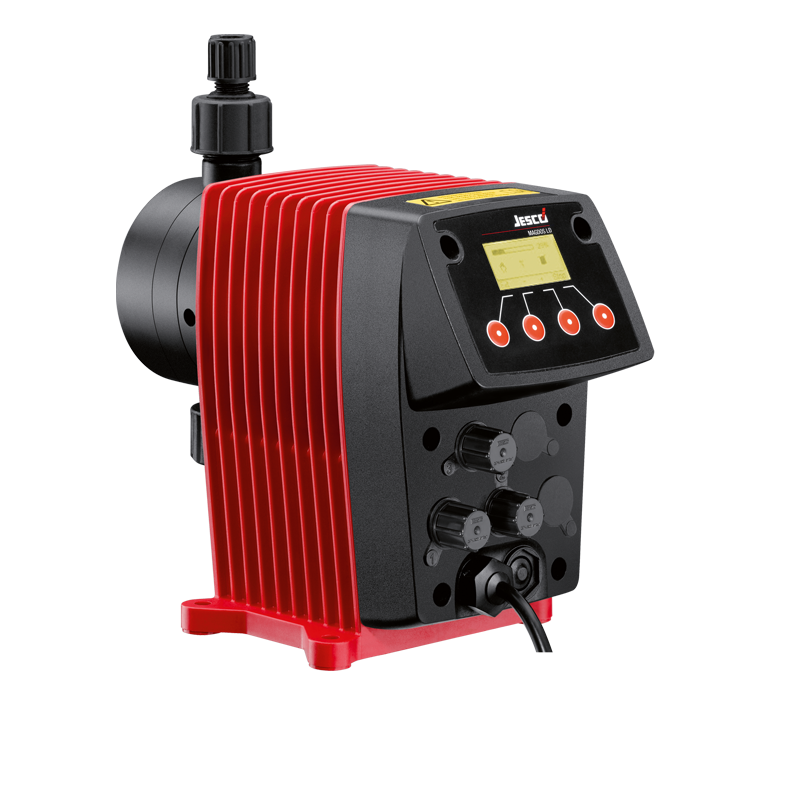

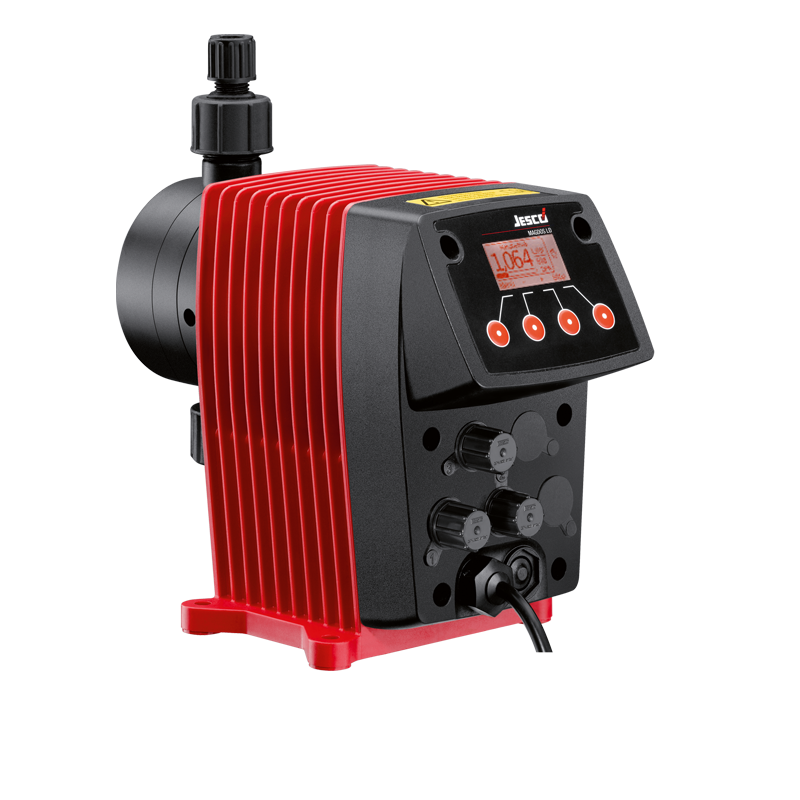

Solenoid-Diaphragm Dosing Pumps MAGDOS LD
*Abbildung kann vom tatsächlichen Produkt abweichen
MAGDOS LD - Simple to use and space-saving ! Die MAGDOS LD plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or via an external control contact. The dosing pump is compact and, thanks to the small mounting area, can be integrated into every dosing system in a very space-saving way. It can be mounted in three different positions without further attachments: standing, left- or right-oriented on a wall.
Features & benefits
- Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig
- Power supply 230 V ±10 %, 50/60 Hz, IP65
or 115 V ± 10 %, 50/60 Hz - Dosing head ventilation
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF
- Stroke frequency can be precisely adjusted via the keyboard
- Graphic display
- Pulse input (increase and reduction)
- Level input with early warning and main alarm
- Release input for external start/stop
- Calculation wizard for pulse operation available online
- CSA and UL certified
