Solenoid-Diaphragm Dosing Pumps MAGDOS LA
*Abbildung kann vom tatsächlichen Produkt abweichen

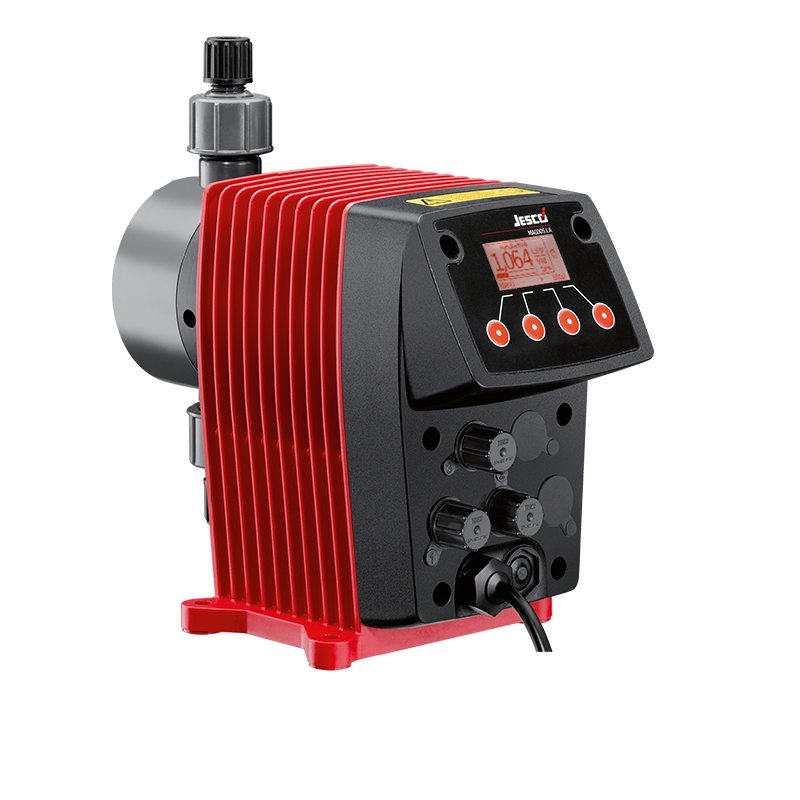

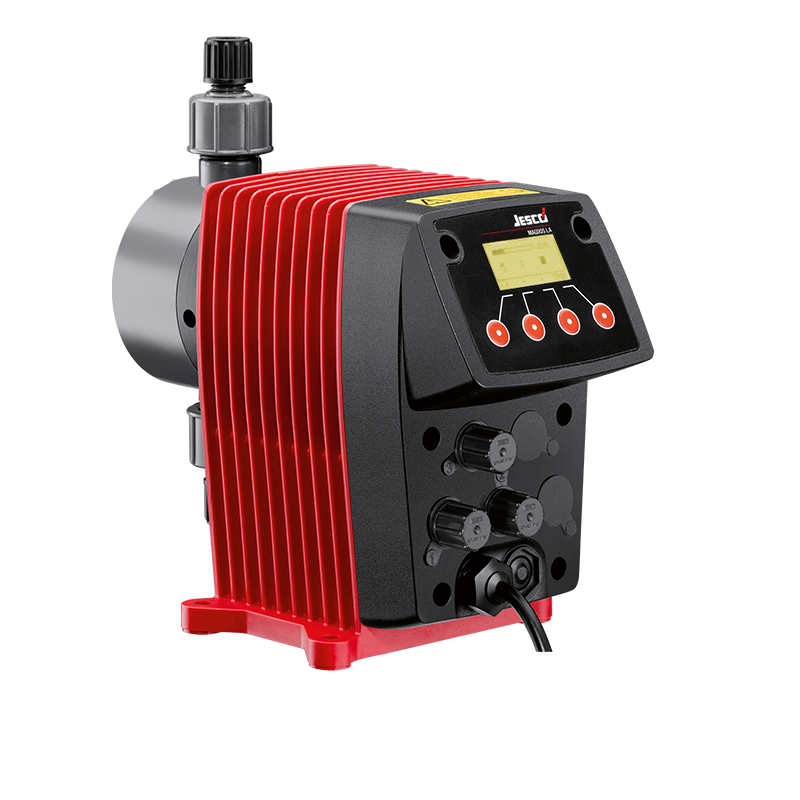

MAGDOS LA - Simple to use and space-saving! MAGDOS LA plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or by an analogue input signal (0/4 – 20 mA). The dosing pump is compact and, thanks to the small mounting area, can be integrated into every dosing system in a very space-saving way. It can be mounted in three different positions without further attachments: standing, left- or right-oriented on a wall.
Features & benefits
- Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig
- Power supply 230 V ±10 %, 50/60 Hz, IP65
or 115 V ± 10 %, 50/60 Hz - Dosing head ventilation
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF
- Stroke frequency can be precisely adjusted via the keyboard
- Graphic display
- Analogue Input settable 0/4 – 20 mA
- Level input with early warning and main alarm
- Release input for external start/stop
- CSA and UL certified
