MAGDOS LB, LD, LA, LK, LP, DE, DX
Simple to use and space-saving: Our MAGDOS solenoid-driven diaphragm metering pumps
The solenoid-driven diaphragm metering pumps MAGDOS stands for dosing without compromises. Thanks to a number of the various pump types there is the right individual solution for every application, also for the highest demands.
Depending on the area in which they are used, different materials and connecting elements can be used on both the suction and discharge side of solenoid diaphragm dosing pumps. Special accessories are available to achieve the best possible results and ensure quick installation.
Our complete range of solenoid-driven diaphragm metering pumps

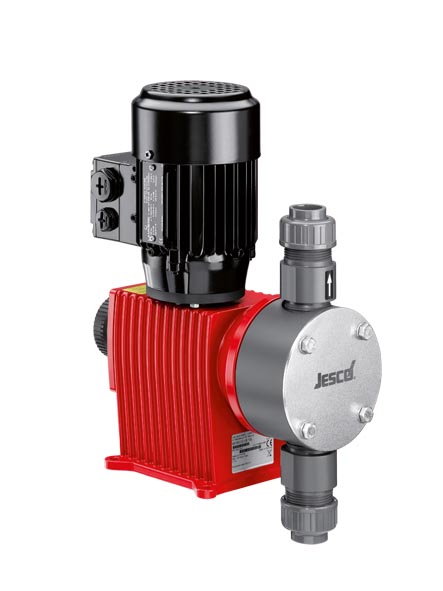

MEMDOS LB
Description:Riding on the crest of the waves The MEMDOS LB is used when the integration of the pump into controls or control circuits is required. Thanks to the sturdy tappet drive with manual or automatic capacity adjustment, the conveyed media such as acids, lyes, coagulants and flocculants are dosed reliably and precisely. To adapt the dosing capacity, either the stroke length can be adjusted mechanically or the speed of the three-phase motor can be regulated by means of a separate frequency converter. On request, the MEMDOS LB pumps can also be supplied with a double-diaphragm system.Features & advantages: Capacity range 1.06 – 324 gph, up to 232 psig Power supply 115 V, 230 V or 400 V Material finishes PVC, PP, PVDF and stainless steel Infinitely variable stroke length from 0 – 100 % A variety of three-phase and alternating current motors ATEX versions are available for Zones 1 and 2 Also suitable for frequency converter operation Double-diaphragm system (optional) Automatic stroke length adjustment (optional) MEMDOS LB 44-HP1010-HP2020-HP356080150 Delivery capacity at max. pressure50 Hzgph 1.062.223.706.355.829.5216.6723.8141.27 60 Hz 1.32.74.47.67.011.4202950 Max. back pressurepsig 17423217423217423214572 Nominal stroke frequency 50 HzRPM 26721207212072120 60 Hz 31.286.414486.414486.4144 Suction lift for non-gassing mediaft H2O 292623 Max. supply / inlet pressurepsig 7.3 Diameter of diaphragmin 2.0472.5193.543 Valve size DN4DN6DN10 Voltage supply 230 / 400 V (optional 115 V) Protection class IP55 Insulation class F Material PP, PVC, PVDF, 1.4571 Weight* PPlb 11.511.115 PVC 11.111.114.1 PVDF 11.911.915 Stainless steel (1.4571) 17.617.626.5 Max. ambient temperature°F 316SS & PVDF: 113° / PVC: 104° Max. temperature of the medium°F 316SS & PVDF: 176° / PP: 140° / PVC: 95° MEMDOS LB 1101602102603104005107601010 Delivery capacity at max. pressure50 Hzgph 30.238.155.669.877.8103.2133.3196.8269.8 60 Hz 3646678493124160236324 Max. back pressurepsig 145116875844 Nominal stroke frequency 50 HzRPM 9612096120961205376107 60 Hz 115.2144115.2144115.214463.691.2128.4 Suction lift for non-gassing mediaft H2O 2319143 Max. supply / inlet pressurepsig 7.3 Diameter of diaphragmin 3.5434.7245.9057.283 Valve size DN10DN15DN25 Voltage supply 230 / 400 V (optional 115 V) Protection class IP55 Insulation class F Material PP, PVC, PVDF, 1.4571 Weight*PPlb 25.327.531.745.8 PVC 25.327.531.745.8 PVDF 26.028.633.549.6 Stainless steel (1.4571) 36.846.557.793.2 Max. ambient temperature°F 316SS & PVDF: 113° / PVC: 104° Max. temperature of the medium°F 316SS & PVDF: 176° / PP: 140° / PVC: 95° Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MEMDOS_LB-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MEMDOS_LB.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MEMDOS_LB-Spanish.pdf
MAGDOS LD
Description:Simple to use and space-saving MAGDOS LD plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or via an external control contact. The dosing pump is compact and, thanks to the small mounting area, can be integrated into every dosing system in a very space-saving way. It can be mounted in three different positions without further attachments: standing, left- or right-oriented on a wall.Features & advantages: Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig Power supply 230 V ±10 %, 50/60 Hz, IP65 or 115 V ± 10 %, 50/60 Hz Dosing head ventilation Suitable for wall and floor mounting Material finishes PVC, PP, PVDF Stroke frequency can be precisely adjusted via the keyboard Graphic display Pulse input (increase and reduction) Level input with early warning and main alarm Release input for external start/stop Calculation wizard for pulse operation available online CSA and UL certified MAGDOS LD 0512461015 Delivery capacity at max. pressuregph 0.090.200.500.891.642.403.43 ml/stroke 0.050.20.310.570.830.86 Max. pressurepsig 2321168743 Delivery capacity at medium pressuregph 0.140.290.611.01.802.644.00 ml/stroke 0.080.070.240.350.630.921 Average pressurepsig 116584314 Nominal stroke frequencyRPM 120250160180250 Suction lift for non-gassing mediaft H2O 1696 Max. inlet / supply pressurepsig 11 Diameter of diaphragmin 0.9441.2991.535 Valve size DN3DN4 Voltage supply 230 V, ± 10 %, 50/60 Hz or 115 V, ± 10 %, 50/60 Hz Power consumptionW 813192522 Protection class IP65 (with covering caps on the connections) Insulation class F Material PVC, PP, PVDF Weightlb ~ 7 Ambient temperature range°F PVDF 113° (104° with PVC parts) Max. temperature of the medium°F PVDF 176°F (with PVC parts 95°; with PP parts 140°) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MAGDOS_LA_LD-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LD.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LD-Spanish.pdf
MAGDOS DE
Description:Reliable dosing of chemicals Solenoid-diaphragm dosing pumps play an important role in the reliable and accurate dosing of liquids in the process cycles. They are appropriate for low-pressure applications and small dosing quantities. Dosing pumps are used in many branches of industry that work with liquid chemicals - not excluding toxic and aggressive media.Features & advantages: Capacity range from 4.7 to 27.7 gph, up to 150 psig Suitable for toxic and aggressive media Stroke length adjustable 0 – 100 % Stroke frequency adjustable 0 – 100 % DE 20 – 100: 0 – 70 /min. Switchable to external control (e.g. water meter) DE 20 – 100: up to 70 pulse/min. Pulse and level control input electrically isolated Connection for level control (pre- and main alarm) Warning alarm relais and/or digital display (optional) Double-ball valves for highest accuracy All types are available for German standard DVGW-DIN 19635 115 V model CSA proofed available MAGDOS DE 2040100 Max. pressurepsig 1506030 Delivery capacity at max. pressuregph 4.712.727.7 Nominal stroke frequency SPM 70 Suction lift for non-gassing mediaft. H2O 654 Diameter of diaphragmin 2.53.54.7 Power supplyV AC 115/230 Power consumptionW 66/70 Protection class IP65 Input pulse durationms > 30 Pulse inputV DC 5 Weight (plastic)lb ~ 29 Weight (stainless steel)lb ~ 33 Max. ambient temperature°F 104° Max. temperature of the medium°F Stainless Steel/PP/PVDF 120° (95° with PVC parts) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MAGDOS_DE_DX-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_DE_DX.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_DE_DX-Spanish.pdf

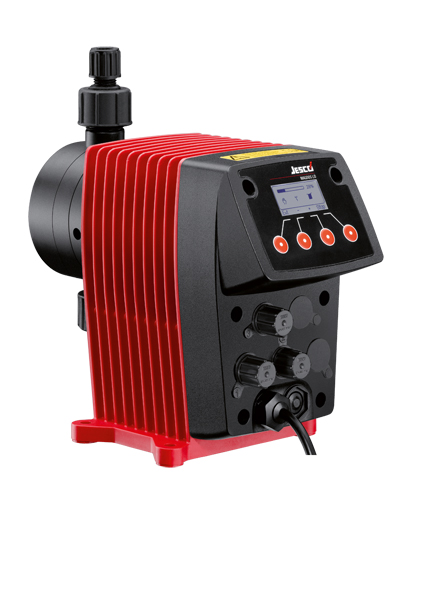

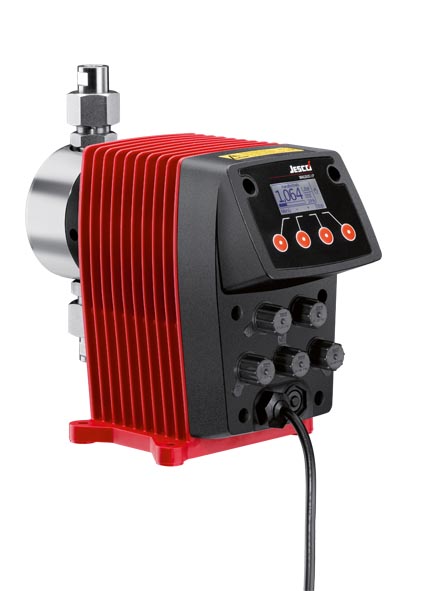

MAGDOS LP
Description:Simple to use and space-saving MAGDOS LP is available in seven power ranges. Double-ball valves ensure accurate dosing. The dosing power can be adapted by varying the stroke frequency manually, via an external control contact or using a 0/4 – 20 mA signal. The MAGDOS LP is also available with an optional Ethernet interface. This network connection enables you to control the stroke frequency and the number of strokes. In addition, all error messages can be transmitted in the opposite direction.Features & advantages: Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig Wide - range power supply unit 110 – 240 V, 50/60 Hz, IP65 Dosing head ventilation (plastic version) Suitable for wall and floor mounting Material finishes PVC, PP, PVDF and stainless steel Stroke frequency can be precisely adjusted via the keyboard Graphic display with multi-language menu Analogue input and pulse input (increase and reduction) Level input with early warning and main alarm Release input for external start/stop Supply amount displayed in various units Maximum delivery rate can be limited Energy-saving "Eco-mode" is available Stroke feedback output Alarm relay output Batch dosing with interval and timer functions Dosing control input Diaphragm failure input for leak monitoring Ethernet interface (optional) CSA and UL certified MAGDOS LP 0512461015 Delivery capacity at max. pressuregph 0.090.200.500.891.642.403.43 ml/stroke 0.050.20.310.570.830.86 Max. pressurepsig 2321168743 Delivery capacity at average pressuregph 0.140.290.611.001.802.644.00 ml/stroke 0.080.070.240.350.630.921 Average pressurepsig 116584314 Nominal stroke frequencyRPM 120250160180250 Suction lift for non-gassing mediamWS 532 Max. supply / inlet pressurepsig 11 Diameter of diaphragmin 0.9441.2991.535 Valve size DN3DN4 Voltage supply 110 – 240 V, -10 % / +5 %, 50/60 Hz Power consumptionW 10152127282926 Protection class IP65 (with covering caps on the connections) Insulation class F Material PVC, PP, PVDF, 1.4571 WeightPVC, PP, PVDFlb ~ 7 Stainless Steel ~ 9.5 Ambient temperature range°F Stainless Steel/PVDF 41° - 113° (41° - 104° with PVC parts) Max. temperature of the medium°F Stainless Steel/PVDF 176° (with PVC parts 95°; with PP parts 140°) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MAGDOS_LK_LP-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LP.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LP-Spanish.pdf
MAGDOS DX
Description:Reliable dosing of chemicals Solenoid-diaphragm dosing pumps play an important role in the reliable and accurate dosing of liquids in the process cycles. They are appropriate for low-pressure applications and small dosing quantities. Dosing pumps are used in many branches of industry that work with liquid chemicals - not excluding toxic and aggressive media.Features & advantages: Capacity range from 4.7 to 27.7 gph, up to 150 psig Suitable for toxic and aggressive media Stroke length adjustable 0 – 100 % Stroke frequency adjustable DX 20 – 100: 0 – 70 /min. Switchable to external control (e.g. water meter) DX 20 – 100: up to 70 pulse/min. Switchable to external control with 0/4 – 20 mA input Pulse multiplication/division 1,2,4,8,16,32,64, Pulse and level control input electrically isolated Warning alarm relais and/or digital display (optional) Connection for level control (pre- and main alarm) Double-ball valves for highest accuracy All types are available for German standard DVGW-DIN 19635 115 V model CSA proofed available MAGDOS DX 2040100 Max. pressurepsig 1506030 Delivery capacity at max. pressuregph 4.712.727.7 Nominal stroke frequency RPM 70 Suction lift for non gassing-mediamWS 2.01.2 Power supplyV AC 115/230 Power consumptionW 66/70 Protection class IP65 Input pulse durationms > 30 Pulse inputV DC 5 Impedance to 0/4 – 20 mA inputOhm 150 Weight (plastic)kg ~10.5~12.5 Weight (stainless steel)kg ~12.0~20.0 Permitted ambient temperature°C 40 Max. temperature of process fluid°F PP & 316SS: 120 / PVC: 95 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MAGDOS_DE_DX-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_DE_DX.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_DE_DX-Spanish.pdf

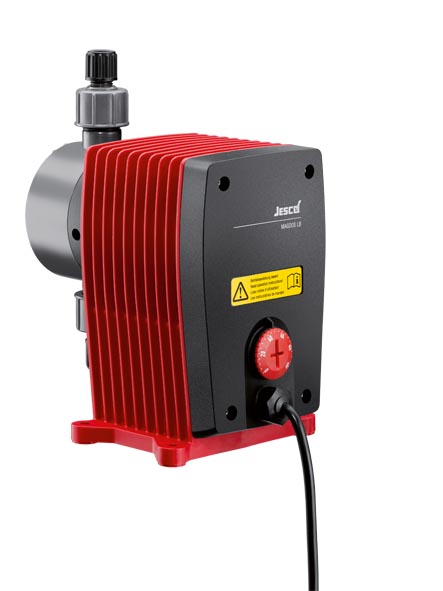

MAGDOS LB
Description:Simple dosing pump in newest generation The MAGDOS LB solenoid-diaphragm dosing pump is a good-value alternative for simple and continuous dosing tasks. It is especially suitable for water treatment and the process industry. MAGDOS LB is available for seven capacity ranges. Double-ball valves ensure an accurate dosing. The dosing capacity can be adapted continuously from 0 – 100% through the stroke frequency. MAGDOS is a compact solution which only includes the most important elements for reliable dosing.Features & advantages: Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig Wide-range power supply unit 110 – 240 V, 50/60 Hz, IP65 Dosing head ventilation Suitable for wall and floor mounting Material finishes PVC, PP, PVDF Infinitely variable dosing rate from 0 – 100 % CSA and UL certified MAGDOS LB 0512461015 Delivery capacity at max. pressuregph 0.090.200.50.891.602.403.43 ml/stroke 0.050.20.320.570.830.87 Max. pressurepsig 2321168743 Delivery capacity at medium pressuregph 0.140.290.611.001.802.644.00 ml/stroke 0.080.070.240.350.630.921 Average pressurepsig 116584314 Nominal stroke frequencyRPM 120250160180250 Suction lift for non-gassing mediaft H2O 1696 Max. inlet / supply pressurepsig 11 Diameter of diaphragmin 0.9441.2991.535 Valve size DN3DN4 Voltage supply 110 – 240 V, -10 % / +5 %, 50/60 Hz Power consumptionW 10152127282926 Protection class IP65 Insulation class F Material PVC, PP, PVDF Weightlb ~ 6.6 Ambient temperature range°F 41° – 113° (with PVC parts 41° – 104°) Max. temperature of the medium°F PVDF 176° (with PVC parts 95°, with PP parts 140°) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MAGDOS_LB-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LB.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LB-Spanish.pdf
MAGDOS LK
Description:Simple to use and space-saving MAGDOS LK plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or via an external control contact. The MAGDOS LK doesn't just impress with its elegant design; the graphical display with a multi-language menu as well as the dosing pump's operation using the integrated keyboard simplifies its use.Features & advantages: Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig Power supply 230 V ± 10 %, 50/60 Hz, IP65 or 115 V ± 10 %, 50/60 Hz Dosing head ventilation (plastic version) Suitable for wall and floor mounting Material finishes PVC, PP, PVDF and stainless steel Stroke frequency can be precisely adjusted via the keyboard Graphic display with multi-language menu Pulse input (increase and reduction) Level input with early warning and main alarm Release input for external start/stop Supply amount displayed in various units Maximum delivery rate can be limited Energy-saving "Eco-mode" is available Stroke feedback output CSA and UL certified MAGDOS LK 0512461015 Delivery capacity at max. pressuregph 0.090.200.500.891.642.403.43 ml/stroke 0.050.20.310.570.830.86 Max. pressurepsig 2321168743 Delivery capacity at average pressuregph 0.140.290.611.001.802.644.00 ml/stroke 0.080.070.240.350.630.921 Average pressurepsig 116584314 Nominal stroke frequencyRPM 120250160180250 Suction lift for non-gassing mediaft H2O 1696 Max. supply / inlet pressurepsig 11 Diameter of diaphragmin 0.9441.2991.535 Valve size DN3DN4 Voltage supply 230 V, ± 10 %, 50/60 Hz oder 115 V, ± 10 %, 50/60 Hz Power consumptionW 813192522 Protection class IP65 (with covering caps on the connections) Insulation class F Material PVC, PP, PVDF, 1.4571 WeightPVC, PP, PVDFlb ~ 7 Stainless Steel ~ 9.5 Ambient temperature range°F Stainless Steel/PVDF 41° - 113° (41° - 104° with PVC parts) Max. temperature of the medium°F Stainless Steel/PVDF 176° (with PVC parts 95°; with PP parts 140° Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MAGDOS_LK_LP-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LK.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LK-Spanish.pdf
MAGDOS LA
Description:Simple to use and space-saving MAGDOS LA plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or by an analogue input signal (0/4 – 20 mA). The dosing pump is compact and, thanks to the small mounting area, can be integrated into every dosing system in a very space-saving way. It can be mounted in three different positions without further attachments: standing, left- or right-oriented on a wall.Features & advantages: Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig Power supply 230 V ±10 %, 50/60 Hz, IP65 or 115 V ± 10 %, 50/60 Hz Dosing head ventilation Suitable for wall and floor mounting Material finishes PVC, PP, PVDF Stroke frequency can be precisely adjusted via the keyboard Graphic display Analogue Input settable 0/4 – 20 mA Level input with early warning and main alarm Release input for external start/stop CSA and UL certified MAGDOS LA 0512461015 Delivery capacity at max. pressuregph 0.090.200.500.891.642.403.43 ml/stroke 0.050.20.310.570.830.86 Max. pressurepsig 2321168743 Delivery capacity at medium pressuregph 0.140.290.611.001.802.644.00 ml/stroke 0.080.070.240.350.630.921 Average pressurepsig 116584314 Nominal stroke frequencyRPM 120250160180250 Suction lift for non-gassing mediaft H2O 1696 Max. supply / inlet pressurepsig 11 Diameter of diaphragmin 0.9441.2991.535 Valve size DN3DN4 Voltage supply 230 V, ± 10 %, 50/60 Hz or 115 V, ± 10 %, 50/60 Hz Power consumptionW 813192522 Protection class IP65 (with covering caps on the connections) Insulation class F Material PVC, PP, PVDF Weightlb ~ 7 Ambient temperature range°F PVDF 113° (104° with PVC parts) Max. temperature of the medium°F PVDF 176°F (with PVC parts 95°; with PP parts 140°) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MAGDOS_LA_LD-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MAGDOS_LA-Spanish.pdf
MEMDOS SMART LB
Description:Precision that inspires The compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump. The MEMDOS SMART LB series is available in five capacity ranges. The MEMDOS SMART LB's drive is fully adjustable. To adapt the dosing performance, the stroke frequency can be manually adjusted across the range from 0 to 100 %.Features & advantages: Capacity range 0.68 – 8.10 gph, up to 290 psig (232 for PVC) Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W Microprocessor controlled drive Integrated dosing head venting facility (only MEMDOS SMART LB 2, LB 5 and LB 10 with dosing head made of plastic) Suitable for wall and floor mounting Material finishes PVC, PP, PVDF and stainless steel Infinitely adjustable stroke frequency from 0 – 100 % Release input for external start/stop CSA and UL certified MEMDOS SMART LB 2510152030 Delivery capacity at max. pressuregph 0.681.42.853.755.48.10 ml/stroke 0.220.591.21.582.133.41 Max. delivery pressurepsig 290 (232*)232145887444 Delivery capacity at medium pressuregph 0.71.592.983.885.68.2 ml/stroke 0.280.671.261.632.193.44 Average back pressurepsig 14511672443622 Nominal stroke frequencyRPM 150 Suction lift for non-gassing mediaft. H2O 9.8 Max. supply / inlet pressurepsig 11.6 Diameter of diaphragmin 1.2991.5352.125 Valve size DN4 Voltage supply 110 – 240 V, -10 % / +5 %, 50/60 Hz Power consumptionW 25 Protection class IP65 (with covering caps on the connections) Insulation class F Material PVC, PP, PVDF, 1.4571 WeightPVC, PP, PVDFlb ~ 4.85 Stainless steel (1.4571) ~ 7.27 Max. ambient temperature°F 316SS & PVDF: 113° / PVC: 104° Max. temperature of the medium°F 316SS & PVDF: 176° / PP: 140° / PVC: 95° Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-MEMDOS_SMART_LB_LD-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MEMDOS_SMART_LB.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/data_usa/documents/pg1/Spec_Sheet-MEMDOS_SMART_LB-Spanish.pdf
