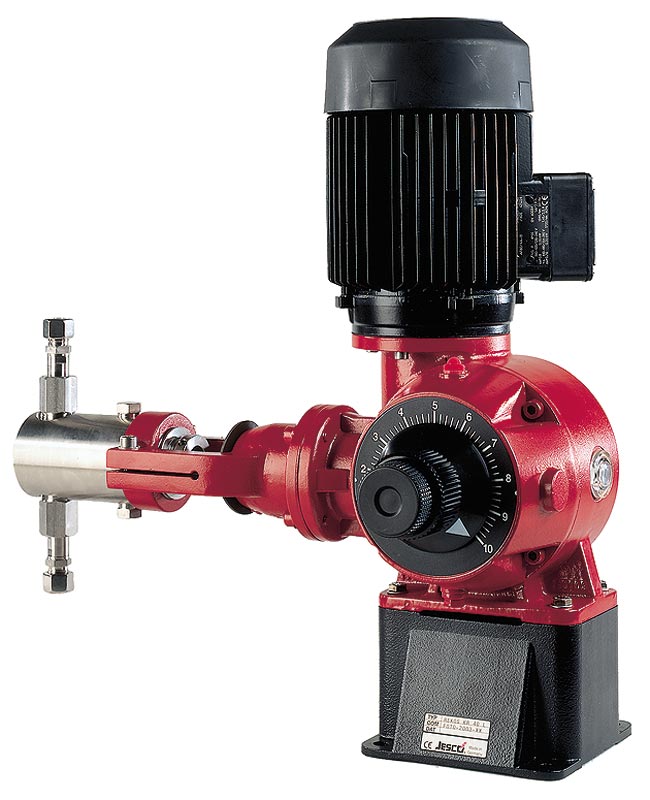

FEDOS E/DX
A classic piston dosing pump: tradition meets innovative technology
The FEDOS E and FEDOS DX combine the properties of the FEDOS series working reliably for many years with the latest requirements in metering technology.
Due to an improved flexibility and the further development of individual components, it can be integrated even more efficiently in metering processes. Heads and pistons are the same as for the previous pumps so that the continuity of spare parts keeping and service is ensured.

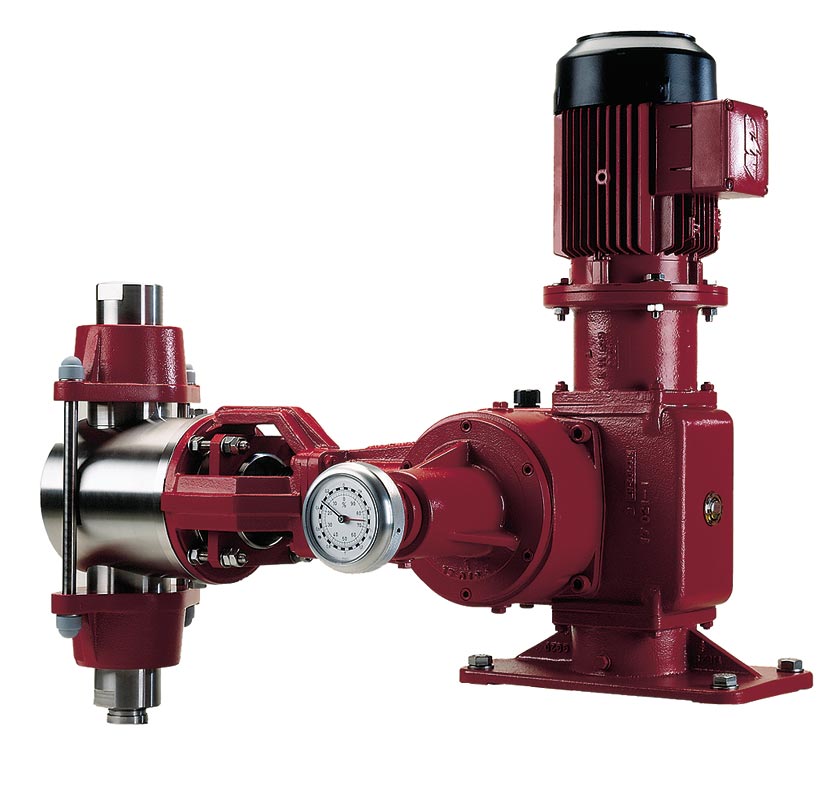

REKOS KR
The large piston dosing pump: power meets precision
REKOS pumps are available as Type KR single-piston dosing pumps. The advantages of the piston dosing pump are its low dependence on the back pressure and the linear change in dosing quantity with the stroke length.
These dosing pumps are therefore well-suited to proportional dosing, where the stroke length is changed in dependence on a remote control signal.
KARDOS KN/N
Powerful piston dosing pump
KARDOS stands for a group of precision dosing pumps which have been developed especially for applications with a high demand for accuracy, reliability and flexibility in a wide performance range. The symmetrically designed gearbox allows the arrangement of 4 dosing heads on the same level and the stacking of three heads above one another, thus enabling a maximally 12-head pump. Each dosing head is 100% adjustable independently.
Our complete range of piston metering pumps
KARDOS N
Description:High pressure piston dosing pump KARDOS stands for a group of precision dosing pumps which have been developed especially for applications with a high demand for accuracy, reliability and flexibility in a wide performance range. The symmetrically designed gearbox allows the arrangement of 2 dosing heads on the same level and the stacking of three heads above one another, thus enabling a maximally 6-head pump. Each dosing head is 100% adjustable independently.Features & advantages: 2 dosing heads on the same level Stacking of three heads above one another Each dosing head is 100% adjustable independently Piston in ceramic, stainless steel or Hastelloy Double-ball, single-ball or spring-loaded single-ball valves, depending on the size of the dosing head Plastic dosing heads for max. 10 bar Stainless steel dosing heads for up to 400 bar Dosing head with a flushing attachment Piston packings in PTFE or Aramid-kevlar Stroke counter with inductive detector for charge-processes (optional) Dosing head heating Piston-diaphragm dosing heads available KARDOS N 1656130320750130025004200 Max. pressure (plastic)bar -10653 Max. pressure (stainl. st.)bar 400.0325.0130.052.024.013.06.53.0 Output at max. pressurel/h 1553125306715122524004400 ml/stroke 2.58.820.751.0119.0204.0392.0733.0 Piston Ømm 81523365572100135 Stroke frequencymin-1 100 Suction liftmbar 120 Weight dosing head (plastic)kg -152030 Weight dosing head (stainl. st.)kg 71734384578 Weight simple gearkg 9596979899 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-KARDOS_N-EN-BW.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-KARDOS_N-EN-MB.pdf

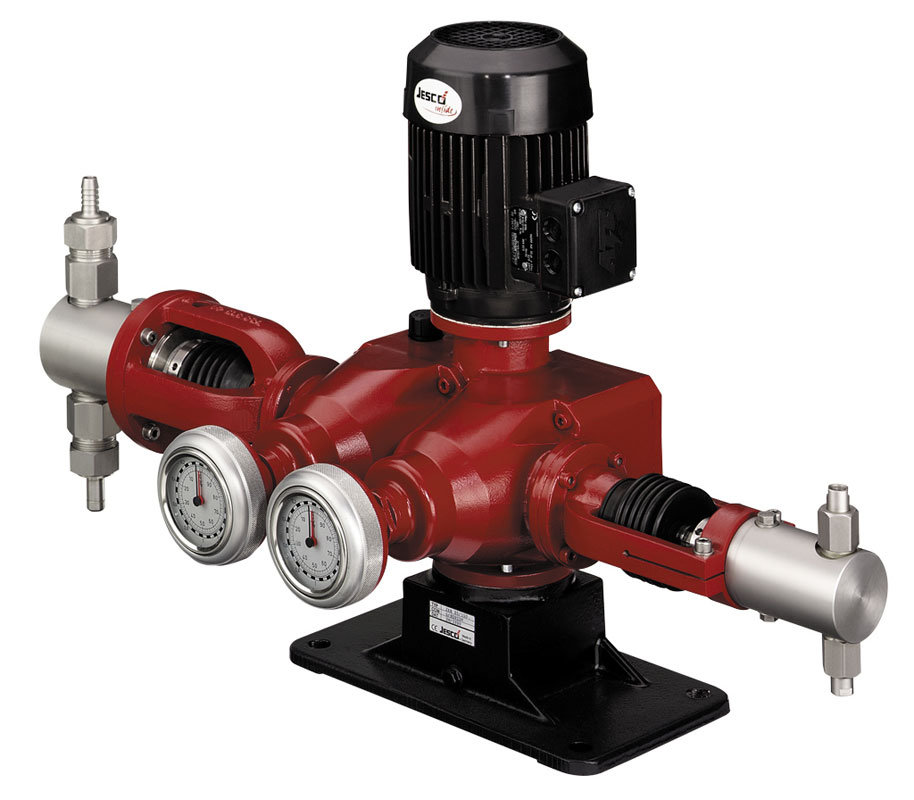

KARDOS KN
Description:Powerful piston dosing pump KARDOS stands for a group of precision dosing pumps which have been developed especially for applications with a high demand for accuracy, reliability and flexibility in a wide performance range. The symmetrically designed gearbox allows the arrangement of 4 dosing heads on the same level and the stacking of three heads above one another, thus enabling a maximally 12-head pump. Each dosing head is 100% adjustable independently.Features & advantages: 4 dosing heads on the same level Stacking of three heads above one another Each dosing head is 100% adjustable independently Piston in ceramic, stainless steel or Hastelloy Double-ball, single-ball or spring-loaded single-ball valves, depending on the size of the dosing head Plastic dosing heads for max. 10 bar Stainless steel dosing heads for up to 400 bar Dosing head with a flushing attachment Piston packings in PTFE or Aramid-kevlar Stroke counter with inductive detector for charge-processes (optional) Dosing head heating Piston-diaphragm dosing heads available KARDOS KN 10233545851502103505008501460 Max. pressure (plastic)bar 10.06.53.0 Max. pressure (stainl. st.)bar 400.0250.0160.0125.065.040.025.016.011.06.53.0 Output at max. pressurel/h 9.922.035.045.082.0140.0200.0325.0465.0800.01550.0 ml/stroke 1.53.45.36.812.521.230.550.071.3122.0235.0 Piston Ømm 8121517233036465572100 Stroke frequencymin-1 110 Suction liftmbar 120 Weight dosing head (plastic)kg 2345 Weight dosing head (stainl. st.)kg 7101518 Weight simple gearkg 45464748 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-KARDOS_KN-EN-BW.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-KARDOS_KN-EN-MB.pdf
REKOS KR
Description:Big piston dosing pump Rekos pumps can be supplied as simplex piston dosing pumps type KR and duplex piston dosing pumps type ZKR. Advantages of piston dosing pumps are: minor dependency on back pressure and linear flow variation as a function of the stroke length. The dosing pumps are therefore very suitable for proportional dosing where the stroke length is adjusted by means of a remote control signal.Features & advantages: Simplex or duplex piston dosing pumps Minor dependency on back pressure Linear flow variation as a function of the stroke length Plastic dosing heads for max. 10 bar Stainless steel dosing heads for up to 200 bar Double-ball, spring-loaded single-ball valves or disk valves, depending on the size Dosing head with a flushing attachment Piston packings in PTFE or Aramid-kevlar Piston-diaphragm dosing heads available Dosing head heating Stroke counter with inductive detector for charge-processes (optional) Stroke adjustment either manually or electrically (ATE) REKOS KR 820304075125180295420725 Max. pressure (plastic)bar 105 Max. pressure (stainl. st.)bar 2001901309550302012105 Output at max. pressurel/h 920314075125180295420725 ml/stroke 1.53.45.36.812.521.230.550.071.3122.0 Piston Ømm 8121517233036465572 Stroke frequencymin-1 100 Suction liftmbar 120 Motor powerkW 0.55 Weight dosing head (plastic)kg 234 Weight dosing head (stainl. st.)kg 71015 Weight simple gearkg 252627 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-REKOS_KR-EN-BW.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg1/LJ-REKOS_KR-EN-MB.pdf
