The C 2213 and C 2214 vacuum regulators for small and medium quantities of chlorine
The C 2213 and C 2214 can be used to withdraw uniform quantities of chlorine gas, carbon dioxide or sulphur dioxide. It fulfils the highest safety standards. Its diverse connections for gas containers and line systems, its drive side manometer and residual pressure safety device make it versatile in its application. A heated moisture eliminator is optionally available on the pressure side for operation on gas drums.
*Abbildung kann vom tatsächlichen Produkt abweichen

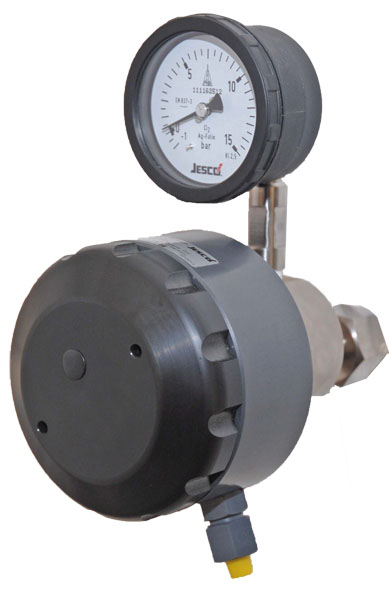

Vacuum regulator C 2213
The C 2213 is designed both for individual and also for parallel use of several vacuum controllers operated by batteries.
Features & benefits
- Flow rate with chlorine gas: up to 10 kg/h
- Residual pressure preservation: against a complete evacuation of the cylinder in order to avoid corrosion caused by humidity of the entering air.
- Filter: Filter for protecting the valves against dirt particles from the cylinder or from the connection area
- Cylinder pressure gauge: To display the pressure in the chlorine tank
- Simultaneous delivery: for a largely uniform chlorine withdrawal from several chlorine cylinders in battery operation
- Flow limiter: against cylinder icing through excessive chlorine withdrawal
- Gas filter
- Compact design
- Available with all standard gas connections

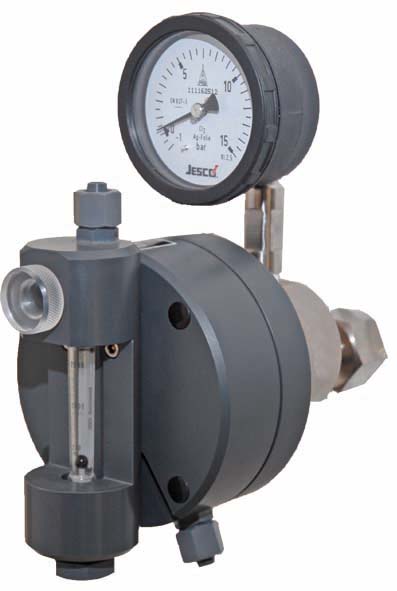

Vacuum regulator C 2214
The C 2214 is designed to be operated independently. A safety relief valve is integrated in the unit and prevents an inadmissible increase in pressure in the following vacuum line system. A flow meter is installed on the front of the C 2214 with an integrated dosing valve, via which the quantity of the gas to be dosed can be set.
Features & advantages
- Flow rate with chlorine gas: up to 4 kg/h
- Residual pressure preservation: against a complete evacuation of the cylinder in order to avoid corrosion caused by humidity of the entering air
- Filter: Filter for protecting the valves against dirt particles from the cylinder or from the connection area
- Cylinder pressure manometer: for display the pressure inside the chlorine tank.
- Integrated safety blow-off valve
- Flow meter with manual setting
- Gas filter
- Compact design
- Available with all standard gas connections
*Abbildung kann vom tatsächlichen Produkt abweichen
The C 2216 and C 2217 vacuum regulators for small and medium quantities of chlorine
The C 2216 as well as C 2217 are suitable for use with water treatment with smaller and medium-sized chlorinators. With the front-fitted flow meter, the chlorine gas can be removed optimally with a manual dosing valve in a broad capacity range up to 10 kg Cl2/h. A measuring glass with 12 different measuring areas is available for this purpose.
*Abbildung kann vom tatsächlichen Produkt abweichen
Vacuum regulator C 2216
Features & advantages
- Scope of application up to 10 kg Cl2/h
- Gas filter
- integrated safety blow-off valve
- Flow meter with manual setting available
- with yoke connection
- optionally with pressure gauge
- Compact design
- optical display empty chlorine tank (optionally with electrical switching contact)
Vakuumregler C 2217
Features & advantages
- Throughput capacity with chlorine gas: up to 10 kg/h
- Gas filter
- Integrated safety blow-off valve
- Flow meter with manual setting
- Optionally with pressure gauge
- Visual indicator when chlorinator is empty (optionally with electrical switching contact)
- Available with all standard gas connections
*Abbildung kann vom tatsächlichen Produkt abweichen
The C 2525-V, C 2560-V and C 2700-V vacuum regulators for large quantities of chlorine
The latest state of the art in chlorinators is vacuum operation. This ensures that the highest safety requirements are met when handling the toxic medium chlorine. The C 2525-V, C2560-V and C2700-V vacuum regulators perform a central role in the dosing of chlorine gas.
*Abbildung kann vom tatsächlichen Produkt abweichen

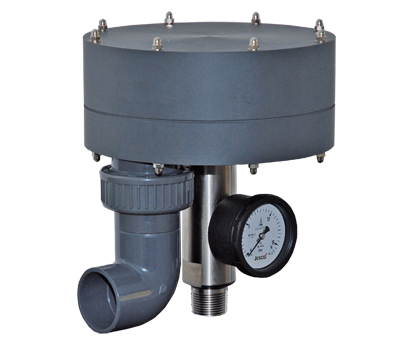

Vacuum regulator C 2525‐V
Features & advantages
- The flow capacity of the chlorine gas: up to 25 kg/h
- Integrated safety blow-off valve
- highly durable materials
- optionally with pressure gauge

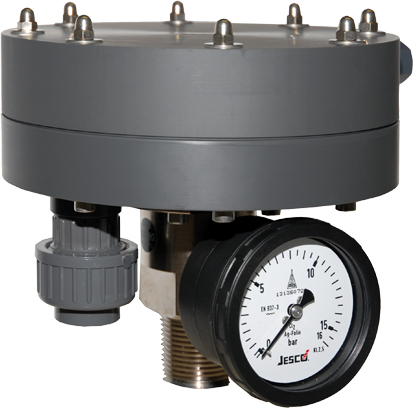

Vacuum regulator C 2560-V
Features & advantages
- Chlorine gas flow rate: up to 60 kg/h
- Built-in safety blow-off valve
- Highly resistant materials
- Optional pressure gauge
*Abbildung kann vom tatsächlichen Produkt abweichen
*Abbildung kann vom tatsächlichen Produkt abweichen
Vacuum regulator C 2700-V
Features & advantages
- Chlorine gas flow rate: up to 200 kg/h
- Built-in safety blow-off valve
- Highly resistant materials
- Optional pressure gauge
Product information
Our complete range of vacuum regulators
Vacuum regulator C 2214
Description:For a perfect dosing result The full-vacuum chlorinator used as pressure reducing valve is of central importance for the safety in vacuum installations. For this reason the C 2214 version has been designed in accordance with the latest findings. The device combines several functions in one housing.Features & advantages: Output with chlorine gas: up to 4 kg/h Gas filter Safety relief valve Flow meter with manual setting Residual pressure safety device Output with chlorine gas 4 g/h ... 4 kg/h Inlet pressurebar max. 16 Pressure connection Union nut BSW 1“ Connection vacuum Hose clamp 8/12 Inlet valve material Monel, brass, Hastelloy Casings material PVC Membrane material FPM Manometerbar -1...15 Empty status signal via the contact manometer alternative to manometer Dimensions (W x H x D)mm 129 x 225 x 237 Weightkg approx. 2.7 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2214-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2214-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2214-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2214-EN-PI.pdf
Vacuum regulator C 2213
Description:For a perfect dosing result The full-vacuum chlorinator used as pressure reducing valve is of central importance for the safety in vacuum installations. For this reason the C 2213 version has been designed in accordance with the latest findings. The device combines several functions in one housing.Features & advantages: Output with chlorine gas: 25 g/h up to 10 kg/h Compact design Safe operation with vacuum technology Flow limiter Gas filter Available with all current gas connections Can be connected directly to gas bottles or collecting pipes Output with chlorine gas 25 g/h up to 10 kg/h (with flow limiter <1 kg/h) Inlet pressurebar max. 16 Pressure connection Union nut BSW 1“ Vacuum connection Hose clamp Ø 8/12 Inlet valve material Monel, brass and Hastelloy Casings material PVC Membrane material FPM Manometerbar -1...15 Empty status signal with the contact manometer alternative to manometer Dimensions (W x H x D)mm 108 x 218 x 169 Weightkg approx. 2.3 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2213-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2213-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2213-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2213-EN-PI.pdf
Chlorinator C 2700-V
Description:Dosing chlorine gas in larger amounts To avoid the risk of chlorine leakage all pipings and devices downstream of the vacuum regulator are below atmospheric pressure. In case of leakage air is sucked into the system, but no chlorine escapes into the atmosphere.Features & advantages: Flow rate with chlorine gas: up to 200 kg/h Safe operation with vacuum technology Included relief valve Highly resistant materials Optional pressure gauge Flow rate with chlorinekg/h up to 200 Inlet pressurebar 1.5...16 Operation vaccummbar -50 Relief pressurembar 500 Pressure gauge (optional)bar / mm 0...16 / Ø63 Materials of constructionInlet valve Nickel plated brass, ceramic, Hastelloy Vacuum part PVC Sealings FPM, PTFE Weight (with flange and pressure gauge)kg 8 Ambient temperature°C 0...40 (no direct sun light) Description Order no. Flange DN 25 / PN 40 with tongue acc. EN1092 shape CThreaded flange 1" NPT female 15927 Weld neck flange Ø33.7 x 4 mm 39516 Liquid sealing compound 50 ml for bonding of 1” NPT-threads Ammonia solution 50 ml for leakage test 13514 8/12 mm PE tubing for relief valve 97124 Description Order no. Small maintenance kit (for annual service) gaskets, valve seat, screws, flange gasket, rubber hose for relief valve 39511 Large maintenance kit (after 3 years) includes small maintenance kit, diaphragm, valve cone, spring 39512 Maintenance kit for diaphragm disc: Diaphragm, screws, rubber hose for relief valve (included in the large maintenance kit) 39513 Pressure gauge 0...16 bar connection 1/4” NPT male (Replacement is recommended after 5 years of use) 24087599 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-Chlorgas_Vakuumregler_C_2700_V-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2700_V-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-Vacuum_regulator_for_chlorine_gas_C_2700_V-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2700_V-EN-PI.pdf
Chlorinator C 2525-V
Description:Dosing chlorine gas in larger amounts To avoid the risk of chlorine leakage all pipings and devices downstream of the vacuum regulator are below atmospheric pressure. In case of leakage air is sucked into the system, but no chlorine escapes into the atmosphere.Features & advantages: Flow rate with chlorine gas: up to 25 kg/h Safe operation with vacuum technology Included relief valve Highly resistant materials Optional pressure gauge Flow rate with chlorinekg/h up to 25 Inlet pressurebar 1.5...16 Operation vaccummbar -50...-100 Relief pressurembar 50 Pressure gauge (optional)bar / mm 0...16 / Ø63 Materials of constructionInlet valve nickel plated brass, ceramic, Hastelloy Vacuum part PVC Sealings FPM, PTFE Weight (with flange and pressure gauge)kg 6 Ambient temperature°C 0...40 (no direct sun light) Description Order no. Flange DN 25 / PN 40 with tongue acc. EN1092 shape CThreaded flange 1" NPT female 15927 Weld neck flange Ø33.7 x 4 mm 39516 Liquid sealing compound 50 ml for bonding of 1” NPT-threads Ammonia solution 50 ml for leakage test 13514 8/12 mm PE tubing for relief valve 97124 Description Order no. Maintenance kit for inlet valve (for annual service) includes: gaskets, valve seat, ball, spring, screws 39369 Maintenance kit for C 2525-V (for bi-yearly service) includes: complete diaphragm plate, maintenance kit for inlet valve 38555 Gasket for flange DN 25 / PN 40 with groove and tongue 81421 Pressure gauge 0...16 bar connection 1/4” NPT male (Replacement is recommended after 5 years of use) 24087599 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2525_V-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2525_V-EN-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2525_V-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2525_V-EN-BA.pdf
