Vacuum regulators and chlorinators

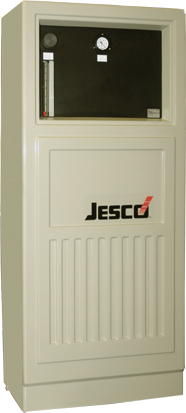

Description:Dosing chlorine gas in larger amounts Chlorine dosing units of group C 2525-MH operate as full vacuum equipment and are employed mainly in water works for municipal and industrial water supply and waste water treatment. The units consist of functional elements of modular design and are characterized by high operational safety. The chlorinators are available in a wall mounted version and a floor mounted cabinet version.Features & advantages: Flow rates 5/10/15/25 kg/h Cl2 Vacuum technology according to DIN 19606 Manual or automatic control Wall mounted or cabinet type Dosing rangeskg Cl2/h up to 25 Operating vacuummbar -100 Required ejector vacuummbar -250 Flow adjustment range% 0...100 Flow meterLengthmm 300 Accuracy% ± 2 FSD Scale ratio 1:20 Material Glass Vacuum gaugeRangebar -1...0 Sizemm Ø63 Accuracy% ± 2.5 FSD Materials of construction in contact with chlorinePlastics PVC Springs Hastelloy Sealings, Diaphragm FPM Weight (with C 7700)WL-typekg 12.5 SL-typekg 37 Ambient temperature°C 0...40 (no direct sun light) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2525_MH-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2525_MH-EN-PI.pdf

Description:For a perfect dosing result The full-vacuum chlorinator used as pressure reducing valve is of central importance for the safety in vacuum installations. For this reason the C 2214 version has been designed in accordance with the latest findings. The device combines several functions in one housing.Features & advantages: Output with chlorine gas: up to 4 kg/h Gas filter Safety relief valve Flow meter with manual setting Residual pressure safety device Output with chlorine gas 4 g/h ... 4 kg/h Inlet pressurebar max. 16 Pressure connection Union nut BSW 1“ Connection vacuum Hose clamp 8/12 Inlet valve material Monel, brass, Hastelloy Casings material PVC Membrane material FPM Manometerbar -1...15 Empty status signal via the contact manometer alternative to manometer Dimensions (W x H x D)mm 129 x 225 x 237 Weightkg approx. 2.7 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2214-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2214-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2214-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2214-EN-PI.pdf

Description:For a perfect dosing result The full-vacuum chlorinator used as pressure reducing valve is of central importance for the safety in vacuum installations. For this reason the C 2213 version has been designed in accordance with the latest findings. The device combines several functions in one housing.Features & advantages: Output with chlorine gas: 25 g/h up to 10 kg/h Compact design Safe operation with vacuum technology Flow limiter Gas filter Available with all current gas connections Can be connected directly to gas bottles or collecting pipes Output with chlorine gas 25 g/h up to 10 kg/h (with flow limiter <1 kg/h) Inlet pressurebar max. 16 Pressure connection Union nut BSW 1“ Vacuum connection Hose clamp Ø 8/12 Inlet valve material Monel, brass and Hastelloy Casings material PVC Membrane material FPM Manometerbar -1...15 Empty status signal with the contact manometer alternative to manometer Dimensions (W x H x D)mm 108 x 218 x 169 Weightkg approx. 2.3 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2213-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2213-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2213-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2213-EN-PI.pdf

Description:For a perfect dosing result The chlorine evaporator C 6100 has a heating element which in a simple and economical method converts up to 220 kg/h of liquid chlorine into chlorine gas. Chlorine evaporators are mainly used in water treatment plants of cooling water systems for power plants, large factories, petrochemical installations as well as waste water treatment plants.Features & advantages: Evaporator output of up to 220 kg Cl2/h Evaporation coil design with water as a heating medium Hot water tank and evaporation coil made of seamless pressure tank steel Electrical heating of the water using immersion heaters Sensors for monitoring the temperature, pressure and fill level Visual indicators for pressure, fill level and temperature Cathodic anti-corrosion protection Evaporation coil volume (model variant) 1,8 dm38,3 dm3 Evaporator capacitykg/h 65220 Heating capacitykW 2 x 54 x 5 Volume of warm water tankLitres 175 Voltage supply 230/400 V, 50/60 Hz Contact load ratingContact thermometer Max. 250 V, max. 1 A, 30 W Contact pressure gauge Temperature monitoring Max. 250 V, max. 2 A Chlorine connection (inlet and outlet) Flange DN25/PN40 that complies with EN 1092 Form D (groove) Permissible ambient temperature°C 0 – 50 Hydrostatic test pressurebar 60 Operating pressurebar 40 (100 °C) Weightkg 275 Control cabinet for chlorine evaporator Voltage supplykg 3x 400 V (-15%) 50 Hz (±1%) Power consumptionA max. 50 Control voltage 24 V DC / 24 V AC Housing material Sheet steel, painted Protection class IP55 Weightkg 50 approx. Ambient temperature°C 0 – 50 (no direct sunlight) Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-Chlorverdampfer_C_6100-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C6100-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-Schaltschrank_Chlorverdampfer-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-Chlorine_Evaporator_C_6100-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C6100-EN-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-Control_cabinet_C6100-EN-PI.pdf

Description:Dosing chlorine gas in larger amounts To avoid the risk of chlorine leakage all pipings and devices downstream of the vacuum regulator are below atmospheric pressure. In case of leakage air is sucked into the system, but no chlorine escapes into the atmosphere.Features & advantages: Flow rate with chlorine gas: up to 200 kg/h Safe operation with vacuum technology Included relief valve Highly resistant materials Optional pressure gauge Flow rate with chlorinekg/h up to 200 Inlet pressurebar 1.5...16 Operation vaccummbar -50 Relief pressurembar 500 Pressure gauge (optional)bar / mm 0...16 / Ø63 Materials of constructionInlet valve Nickel plated brass, ceramic, Hastelloy Vacuum part PVC Sealings FPM, PTFE Weight (with flange and pressure gauge)kg 8 Ambient temperature°C 0...40 (no direct sun light) Description Order no. Flange DN 25 / PN 40 with tongue acc. EN1092 shape CThreaded flange 1" NPT female 15927 Weld neck flange Ø33.7 x 4 mm 39516 Liquid sealing compound 50 ml for bonding of 1” NPT-threads     Ammonia solution 50 ml for leakage test 13514 8/12 mm PE tubing for relief valve 97124 Description Order no. Small maintenance kit (for annual service) gaskets, valve seat, screws, flange gasket, rubber hose for relief valve 39511 Large maintenance kit (after 3 years) includes small maintenance kit, diaphragm, valve cone, spring 39512 Maintenance kit for diaphragm disc: Diaphragm, screws, rubber hose for relief valve (included in the large maintenance kit) 39513 Pressure gauge 0...16 bar connection 1/4” NPT male (Replacement is recommended after 5 years of use) 24087599 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-Chlorgas_Vakuumregler_C_2700_V-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2700_V-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-Vacuum_regulator_for_chlorine_gas_C_2700_V-EN-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2700_V-EN-PI.pdf

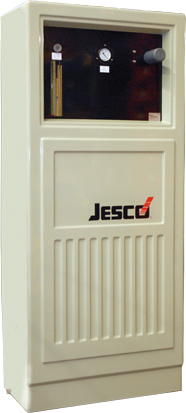

Description:Dosing chlorine gas in larger amounts Chlorine dosing units of group C 2701/SL operate as full vacuum equipment and are employed mainly in water works for municipal and industrial water supply and waste water treatment. The units consist of functional elements of modular design and are characterized by high operational safety. The chlorinators are available in a wall mounted version and a floor mounted cabinet version.Features & advantages: Vacuum technology compliant with DIN 19606 Glass flow meter Highly chemical-resistant materials Automatic control valve (optional) Signal converter (optional) Back-pressure regulator Vacuum meter Chlorinator C2701/SL Dosage rangekg/h Cl2 40 / 60 / 120 / 200 Operating vacuummbar -100 Required injector vacuummbar -250 Nominal value of air valvembar -500 Adjustable flow range% 0 – 100 Flow meterLengthmm 300 Accuracy% ± 2 % of final scale reading Scale ratio 1:20 Material Glass Vacuum meterMeasuring rangebar -1 – 0 Sizemm Ø63 Accuracy% ± 2.5 % of final scale reading Material in contact with the mediaPlastics PVC, PVDF Springs Hastelloy Seals, diaphragms FPM Weightkg 50 approx. Ambient temperature°C 0 – 40 (no direct sunlight) Control valve Voltage supply 230 V AC, max. 7 VA Control signalmA (0)4 – 20 Feedback signalmA (0)4 – 20 Adjustment time 90 s for 0 – 100% Protection class IP65 Material in contact with the media PVC, FPM, PTFE Weightkg 2,5 approx. Ambient temperature°C 0 – 40 (no direct sunlight) Signal converter Voltage supply 110 – 240 V AC, max. 14 VA Signals (input and output)mA (0)4 – 20 Limit value relay max. 3 A, 230 V AC Signal amplification x0,1 ...x1 ...x100 Displays LED, green and red Protection class IP65 Housing ABS Weightkg 0,5 approx. Ambient temperature°C -5 to +55 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2701_SL-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2701_SL-EN-PI.pdf

Description:Dosing chlorine gas in larger amounts To avoid the risk of chlorine leakage all pipings and devices downstream of the vacuum regulator are below atmospheric pressure. In case of leakage air is sucked into the system, but no chlorine escapes into the atmosphere.Features & advantages: Flow rate with chlorine gas: up to 25 kg/h Safe operation with vacuum technology Included relief valve Highly resistant materials Optional pressure gauge Flow rate with chlorinekg/h up to 25 Inlet pressurebar 1.5...16 Operation vaccummbar -50...-100 Relief pressurembar 50 Pressure gauge (optional)bar / mm 0...16 / Ø63 Materials of constructionInlet valve nickel plated brass, ceramic, Hastelloy Vacuum part PVC Sealings FPM, PTFE Weight (with flange and pressure gauge)kg 6 Ambient temperature°C 0...40 (no direct sun light) Description Order no. Flange DN 25 / PN 40 with tongue acc. EN1092 shape CThreaded flange 1" NPT female 15927 Weld neck flange Ø33.7 x 4 mm 39516 Liquid sealing compound 50 ml for bonding of 1” NPT-threads     Ammonia solution 50 ml for leakage test 13514 8/12 mm PE tubing for relief valve 97124 Description Order no. Maintenance kit for inlet valve (for annual service) includes: gaskets, valve seat, ball, spring, screws 39369 Maintenance kit for C 2525-V (for bi-yearly service) includes: complete diaphragm plate, maintenance kit for inlet valve 38555 Gasket for flange DN 25 / PN 40 with groove and tongue 81421 Pressure gauge 0...16 bar connection 1/4” NPT male (Replacement is recommended after 5 years of use) 24087599 Downloadshttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2525_V-DE-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/produktinfos/LJ-C2525_V-EN-PI.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2525_V-DE-BA.pdfhttps://www.lutzjescoamerica.com/fileadmin/data/dokumente/pg2/LJ-C2525_V-EN-BA.pdf
