Eccentric screw pumps
Eccentric screw pump accessories
PP
Barrel adapter
for the for Eccentric screw pumps B70V
Description:
The drum adapter is required for fastening the Pump in the drum opening. It prevents the Pump from tipping over when the drum is empty.
Properties & advantages
Material: PP / St 37
brass
Bypass valve
For Eccentric screw pumps B70
Description:
The bypass valve is recommended when using a shut-off valve.
Shut-off valve for nozzles, Ball valves, etc.
Properties & advantages
Material: brass / stainless steel
Opening pressure: 2.5 bar (brass version) / 5 bar (stainless steel version)
Connection type: 1 1/2"

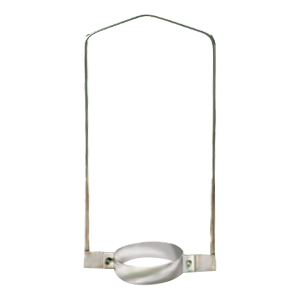

Carrying handle
for motor MA II and ME II
Description:
The support bracket makes it easier to lift or immerse the Pump from the drums or containers. With an explosion-protected drive motor, the explosion-protection switch is attached to the support bracket
For motor MA II / ME II / B4/GT / Three-phase motor / Single-phase motor / Three-phase motor for reduction gears
Properties & advantages
No heavy lifting necessary
Makes it easier to lift out or immerse the Motor either with or without Pump tubes
Carrying handle
with integrated pulse sensor
Description:

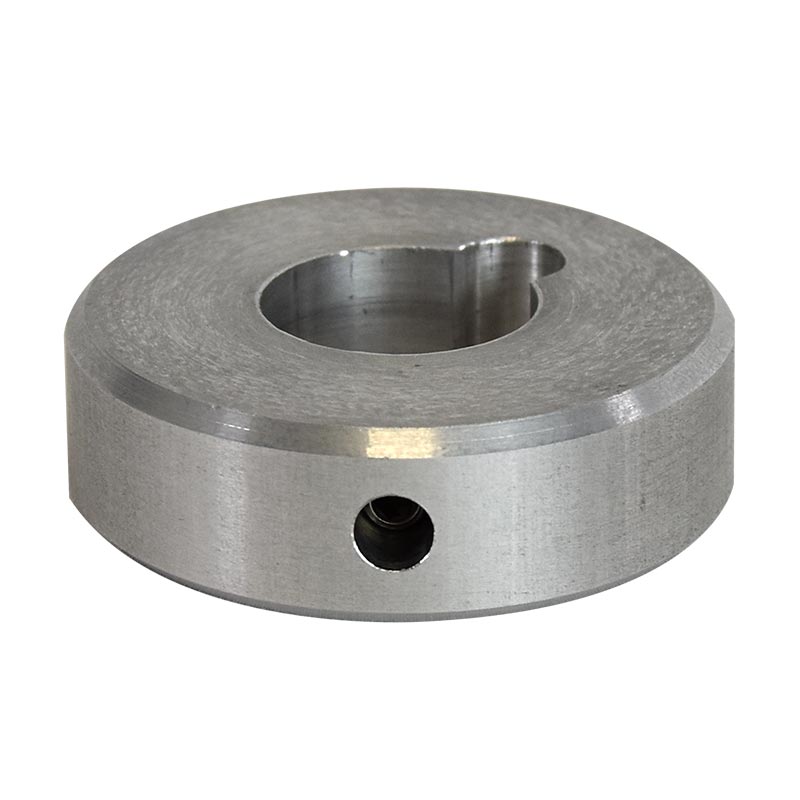

The support bracket with integrated pulse sensor is the perfect upgrade for your B70V-D Eccentric screw pumps. Magnetic pulses from the rotating motor shaft are transmitted contactlessly to the pulse sensor via a pulse generator ring. The detected pulses are analysed in the Lutz BE10 operating unit and output as the pumped flow volume: via the display based on the previously determined calibration factor. By adding the RM10 relay module and corresponding connection cables, the system can also be used as a filling/transfer station with quantity preselection (batch function), as is known from the modular Lutz Flow meters. Alternatively, the reed pulses can also be analysed via customer evaluation units and external controls.
the pulse transmitter ring and operating unit must be ordered separately
Can be combined with RM10 relay modules and other modules
Properties & advantages
Simple operation and control
Cost-effective retrofitting for eccentric screws already in use B70V-D Eccentric screw pumps already in use
Maximum mobility thanks to compact unit
Explosion protection
Stainless steel
Clamping device
For Eccentric screw pumps B70V
Description:
The clamping device is for fastening the Eccentric screw pump B70V in open and thick-walled drums and tanks.
Suitable for a wide range of pumping station diameters
Properties & advantages
Material: stainless steel
Explosion protection
Alternating current
CEAG
Ex plug
for motor ME II and for B70V-SR (Ex)
Description:
The CEE round plugs are suitable for rotary commutators (three-phase current) and Electric motors (alternating current) and are used in potentially explosive areas or environments.
Splash-proof
Properties & advantages
Certification: EEx de IIC T6
Protection class: IP 65
Rotary (3-pole) or alternating current (5-pole)
Explosion protection
Alternating current
CEAG
Ex socket outlet
for motor ME II and for B70V-SR (Ex)
Description:
The CEE socket outlets are suitable for three-phase motors (three-phase current) and Electric motors (alternating current) and are used in potentially explosive areas or environments.
Splash-proof
Properties & advantages
Certification: EEx de IIC T6
Protection class: IP 65
Rotary (3-pole) or alternating current (5-pole)
Explosion protection
Stainless steel

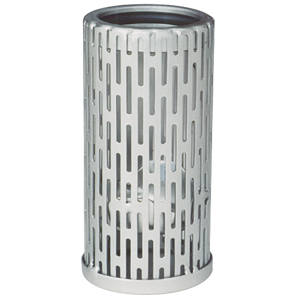

Foot strainer for Eccentric screw pumps
for the Eccentric screw pumps B70V
Description:
The foot strainer can be used for Eccentric screw pumps. By attaching the strainer to the pump foot, coarse impurities can be kept away from important components such as the drive.
For attaching to the pump base
Properties & advantages
Prevents contamination in the Pump tube by filtering it out
Material: stainless steel (1.4571)
DN 9 (3/8")
Hose clamps
for hose size DN 9
Description:
The hose clamp is made of stainless steel and is suitable for attaching the various delivery hoses to the hose connection.
Nominal diameters: DN 9 / DN 13 / DN 19 / DN 25 / DN 32 - 38 / DN 50
PP
DN 50 x 2" internal thread
Hose connection
for DMP 2" and B70-V
Description:
The hose connection connects the delivery hoses to the pressure/suction nozzle of the double diaphragm pumps or the dispensing nozzle. When using a double diaphragm pump, either a suitable reducing nipple or a threaded bottle must be used in addition to the hose connection.
Special connections are available on request
Properties & advantages
Material: PP / PVDF / stainless steel
Connections: DN 38 x 1 1/2" IG / stainless steel: DN 38 x 1 1/2" female thread / DN 50 x 2" female thread
Stainless steel
DN 25 (1")
Hose connection
for internal thread 1 1/2"
Description:
For connection of delivery hoses to the B70V-D Pump tube.
Nominal diameters: DN 25 / DN 32 / DN 38
Properties & advantages
Connection thread: 1 1/2"
Material: stainless steel
DN 38 (1 1/2")
Seal FPM
Hose connection
with Tri-Clamp DN 50
Description:

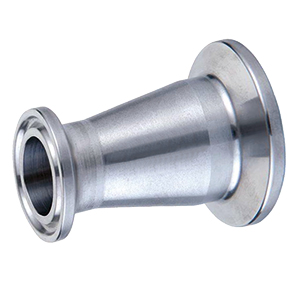

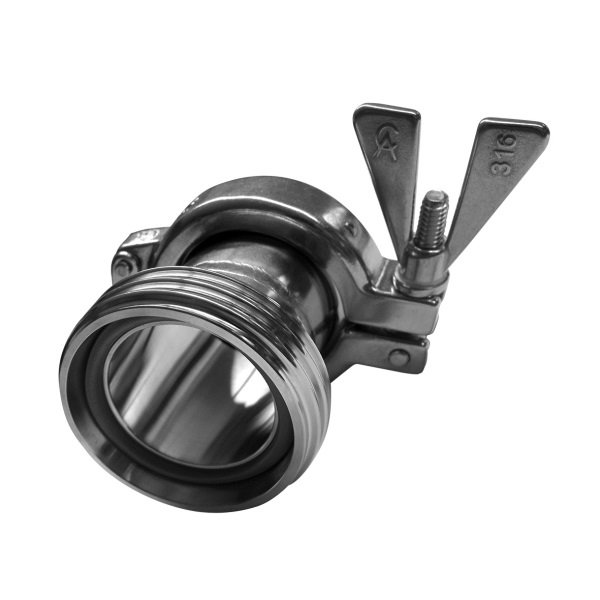

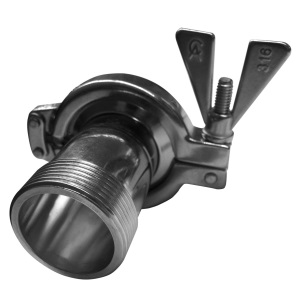

The hose connection with Tri-Clamp is required for connecting the delivery hose to the Eccentric screw pumps B70, the discharge elbow or the Tri-Clamp fittings (consisting of hose nozzle, locking clamp and seal).
For Eccentric screw pumps
Properties & advantages
Material: stainless steel (1.4404)
For hoses with Nominal diameter (DN) 38 / DN 50
Explosion protection
DN 19 (3/4")
FPM
Hose integration
with Tri-Clamp DN 32
Description:
For connecting conductive delivery hoses to the Pump, nozzle/outlet elbow or Tri-Clamp fittings in potentially explosive atmospheres. The hose connection ensures a good conductive transition between the conductive hose and the pump/fitting. The ohmic resistance between the fittings must be less than106 ohms. The hose bonding consists of a hose connector, a clamping shell, a locking clip and a seal.
For Eccentric screw pumps
Properties & advantages
Material: stainless steel (1.4404)
Only suitable in conjunction with the universal chemical hose
in accordance with the DIN EN 12 115 standard
Explosion protection
brass
Hose integration
For Eccentric screw pumps
Description:
The hose connection ensures a good conductive transition between the hose and Pump tubes. The use of conductive hoses is mandatory in potentially explosive atmospheres. The ohmic resistance between the fittings must be less than106 ohms.
For Eccentric screw pumps and double diaphragm pumps
Properties & advantages
Material: brass / stainless steel (1.4571)
For hoses with Nominal diameter (DN) 32 / DN 38 / DN 50
DN 19 (3/4")
2 m
Hose set alkalis + acids
For acidic liquids and low-viscosity chemicals
Description:

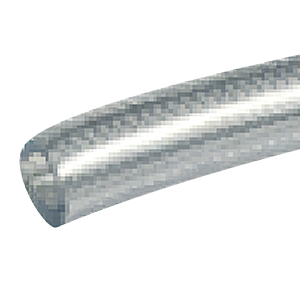

The hose set is suitable for aggressive and non-flammable liquids, but also for food liquids. The hose is made of PVC with an embedded and galvanised steel wire helix (smooth inside and outside). The set is used for connection to the Pump tube or nozzle.
Also available in special lengths on request
Properties & advantages
Nominal diameter (DN) 19 (3/4")
PP hose connection
Pre-assembled hose connections and hose clamps
Foodstuffs
Explosion protection
DN 19 (3/4")
Hose set Ex-Pure
For watery and fatty Foodstuffs
Description:
The hose set is suitable for aqueous and greasy Foodstuffs. The hose is electrically conductive so that it can also be used in potentially explosive environments. The set is used for connection to the Pump tube or dispensing nozzle.
Also available in special lengths on request
Electrically conductive
Properties & advantages
Hose connection: Tri-Clamp DN 32
Nominal diameter: DN 19 (3/4")
DN 19 (3/4")
2 m

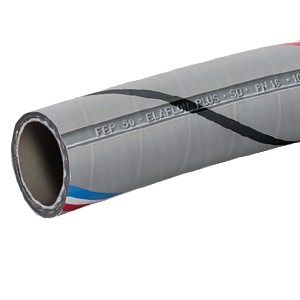

Hose set for concentrated alkalis and acids
for highly chemical liquids and salts
Description:
Hose set is for concentrated alkalis + acids. The set is FDA and USP Class VI compliant. The set is used for connection to the Pump tube or dispensing nozzle.
Also available in special lengths on request
Suitable for filling or decanting chemicals, foodstuffs and hygiene products
Properties & advantages
Nominal diameter (DN) 19 (3/4")
PVDF hose connection
Pre-assembled hose connections and hose clamps
Explosion protection
DN 19 (3/4")
2 m
Hose set for potentially explosive media
For aggressive and highly flammable liquids
Description:
The hose set is suitable for pure chemicals and explosive liquids. The hose is electrically conductive so that it can also be used in potentially explosive environments. The set is used for connection to the Pump tube or dispensing nozzle.
Also available in special lengths on request
Electrically conductive
Properties & advantages
Hose connection: 1 1/4" female thread
Nominal diameter: DN 19 (3/4")
Pre-assembled hose connections
Complies with EU regulations 10/2011 and 1935/2004
DN 25 (1")
2 m
Hose set mineral oils
For aggressive and non-flammable liquids
Description:
The hose set is suitable for aggressive and non-flammable liquids, but also for food liquids. The hose set is made of PVC with an embedded and galvanised steel wire helix. The set is used for connection to the Pump tube or dispensing nozzle.
Also available in special lengths on request
Properties & advantages
Nominal diameter (DN) 25 (1")
Aluminium hose connection
Pre-assembled hose connections and hose clamps
Ø 30 mm
Aluminium
Hub, motor side
for B70V 120.1
Description:
If the motor is provided by the customer, the hub must also be ordered in accordance with the shaft diameter.
Material: aluminium
Properties & advantages
Shaft diameter: Ø 24 mm / Ø 25 mm / Ø 28 mm / Ø 30 mm
Explosion protection
Ø 19 mm
Aluminium
Hub, motor side
for Explosion proof B70V 12.1 to 75.1
Description:
If you provide the Motor yourself, the hub must also be ordered in accordance with the shaft diameter.
Material: aluminium
Properties & advantages
Shaft diameter: Ø 19 mm / Ø 24 mm
Labelling: Ex II 2 G Ex h IIC T6...T4 Gb
Ø 14 mm
Aluminium
Hub, motor side
for B70V 12.1 to 75.1
Description:
If you provide the Motor yourself, the hub must also be ordered in accordance with the shaft diameter.
Material: aluminium
Properties & advantages
Shaft diameter: Ø 14 mm / Ø 19 mm / Ø 24 mm / Ø 28 mm
Stainless steel
IBC traverse
for Drum pumps and eccentric screw pumps B70
Description:
The IBC traverse is used to safely remove and install the Pump tubes or the double diaphragm pump.
Suitable for Drum pumps, Eccentric screw pumps B70 and Diaphragm pumps
Includes transport straps for lifting vehicles and tensioning hooks for fixing to the container
Properties & advantages
Compatible with all standard IBC containers
Material: stainless steel
Clamping hook: galvanised steel
for Drum pumps / B70 Version: plastic guide sleeve with Ø 55 mm
Stainless steel (1.4571)
Inline protection
for Pump tube B70V 120.1
Description:
The inliner protection is suitable for attachment to the pump foot. It protects sensitive drum inliners and bags from damage.
