Diaphragm pump accessories
Filter

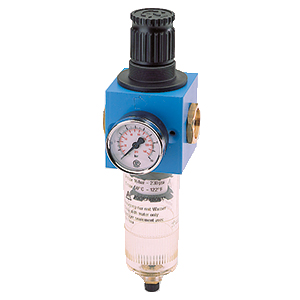

Filter pressure reducer
for Lutz Compressed air motors and Diaphragm pumps DMP 1/4 "to 2"
Description:
Filter pressure reducer with pressure gauge for setting the operating pressure.
Inlet pressure max. 16 bar
Ambient temperature max. 60°C
Properties & advantages
Filter element 5 µm, Cellpor and 40 m, sintered bronze
Zinc die-cast and aluminium housing
Diaphragm and seals made of NBR
PP
DN 19 (3/4")

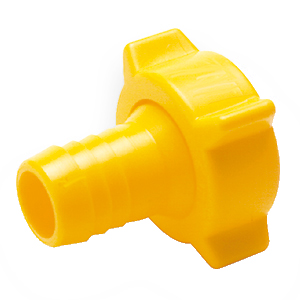

PP hose connection
with 1" internal thread connection
Description:
The hose connection connects the delivery hoses to the Pump tubes, the double diaphragm pumps or the dispensing nozzle. When using a double diaphragm pump, a suitable reducing nipple must be used in addition to the hose connection
Special connections are available on request
Properties & advantages
Nominal diameter (DN): DN 19
Material: PP
Foodstuffs
Explosion protection
DN 25 (1")

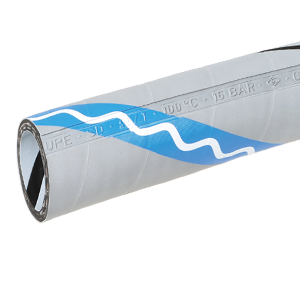

Universal chemical hose
for chemicals, food and hygiene products
Description:
The hose is suitable for pure chemicals, cosmetics, photographic chemicals, paints and adhesives, detergents and cleaning agents, hygiene products, as well as food and luxury foods. It is FDA and USP Class VI compliant. The Hose: is electrically conductive so that it can also be used in potentially explosive environments.
Also available in special lengths on request
Nominal diameter: DN 13 / DN 19 / DN 25 / DN 32 / DN 38 / DN 50
Properties & advantages
Operating pressure (max. 16 bar)
Colour coding: "blue/white/blue".
Complies with EU regulations 10/2011 and 1935/2004
Underpressure max 0.9 bar
PP

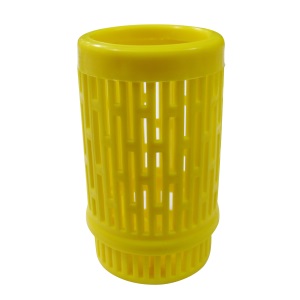

Foot strainer for Pump tubes Ø 41mm
Suitable for Pump tube PP or suction pipe
Description:
The foot strainer can be used for PP, PVDF, aluminium and stainless steel Pump tubes. By attaching the strainer to the pump foot, coarse impurities can be kept away from important components such as the drive (rotor, impeller).
For attaching to the pump base and the suction pipe with Ø 41 mm
Properties & advantages
Prevents contamination in the Pump tube by filtering it out
Outer pipe diameter 55 mm
Mesh size 20 x 2 mm
PP

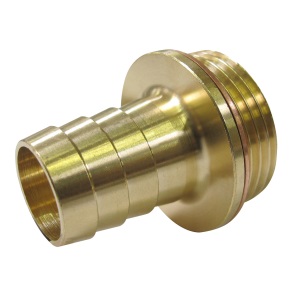

DN 19 (3/4")
Hose connection
with 1 1/4" internal thread connection
Description:
The hose connection connects the delivery hoses to the Pump tubes, the double diaphragm pumps or the dispensing nozzle. When using a double diaphragm pump, a suitable reducing nipple must be used in addition to the hose connection
Special connections are available on request
Properties & advantages
Nominal diameters: DN 13 / DN 19 / DN 25 / DN 32
Material: PP / PVDF / aluminium / stainless steel / HC
Explosion protection
DN 19 (3/4")
2 m

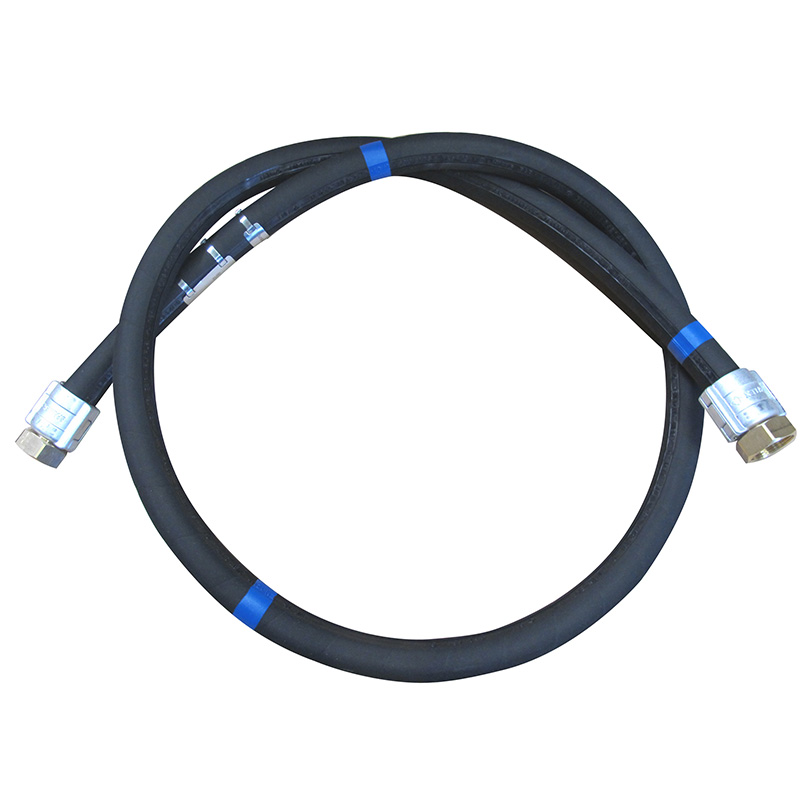

Solvent hose set (NBR)
for highly flammable hydrocarbons
Description:
The hose set is suitable for a wide range of commercially available solvents. The hose is electrically conductive so that it can also be used in potentially explosive environments. The set is used for connection to the Pump tube or dispensing nozzle.
Also available in special lengths on request
Electrically conductive
Properties & advantages
Hose connection: 1 1/4" female thread
Nominal diameter: DN 19 (3/4")
Pre-assembled hose connections
Complies with EU regulations 10/2011 and 1935/2004
Stainless steel
IBC traverse
for Drum pumps and eccentric screw pumps B70
Description:
The IBC traverse is used to safely remove and install the Pump tubes or the double diaphragm pump.
Suitable for Drum pumps, Eccentric screw pumps B70 and Diaphragm pumps
Includes transport straps for lifting vehicles and tensioning hooks for fixing to the container
Properties & advantages
Compatible with all standard IBC containers
Material: stainless steel
Clamping hook: galvanised steel
for Drum pumps / B70 Version: plastic guide sleeve with Ø 55 mm
PE
PTFE

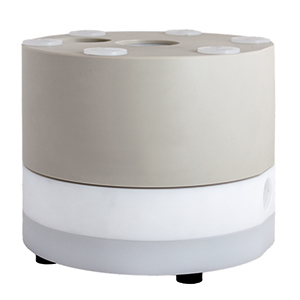

Pulsation dampener
for the double diaphragm pumps 1/2"
Description:
Pulsation dampeners are tanks filled with a gas cushion. A diaphragm separates the gas cushion from the system fluid. Pulsation dampers store and discharge part of the stroke volume in the stroke rhythm of the double diaphragm pump, whereby the gas cushion is compressed or decompressed accordingly. This makes the pulsating flow rate of the Pump almost uniform.
Automatic air control / adjustable air control (FPM version)
Material: PE / PTFE / stainless steel
Properties & advantages
Operating pressure: max. 8 bar / 10 bar (FPM version)
Ensure almost uniform volume flow, which increases the accuracy of flow meters
Compensation of pressure surges (water hammer) protects installed fittings
Prevents pipe vibrations that cause material fatigue and pipe breakages
DN 25 (1")
1 m

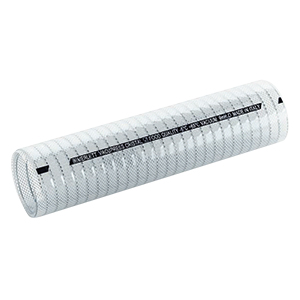

PVC spiral hose
fabric-reinforced
Description:
Hose: suitable for aggressive, non-flammable liquids. The hose is made of PVC with a fabric insert and an embedded galvanised steel wire helix. Perfect for conveying food liquids.
Also available in special lengths on request
Nominal diameter: DN 19 / DN 25 / DN 32 / DN 38 / DN 50
Properties & advantages
Operating temperature max. 14 bar
Complies with EU regulations 10/2011 and 1935/2004
1000 mm
1 1/4" AG
Suction pipe
made of polypropylene (PP)
Description:
The suction tube is required to be able to convey or suck in highly chemical media without the outer layer being attacked as with the immersion of a hose.
Material: PP
Properties & advantages
Outer tube diameter 41 mm
Pipe length from 1000 - 1200 mm
Connection: 1 1/4" AG
3/8" FEMALE THREAD

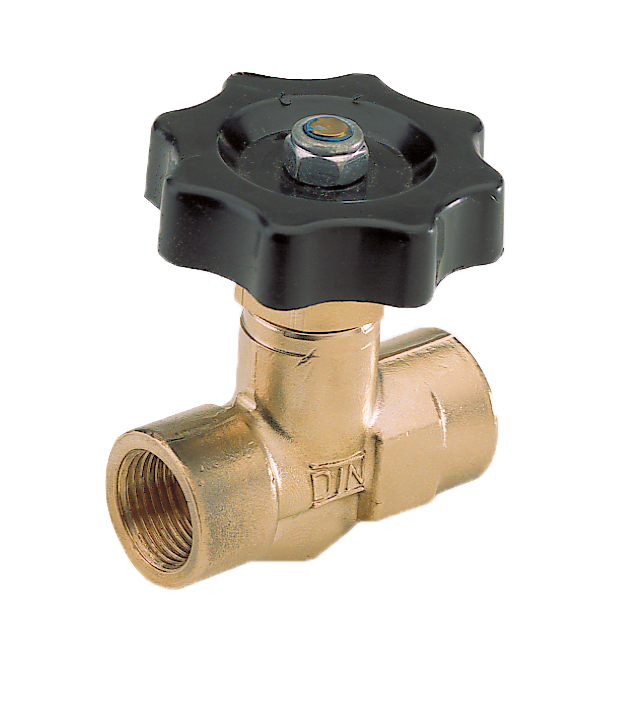

Needle valve
made of brass
Description:
The needle valve regulates the air volume to the double diaphragm pump. In contrast to the Ball valve: the air volume can be flexibly adjusted.
Material: Brass
the thread extension (5000-712) is required when using the needle valve with double diaphragm sizes 1/2" and 1"
Properties & advantages
Connection: 3/8 / 3/4" female thread
Explosion protection
DN 25 (1")
max. 16 bar

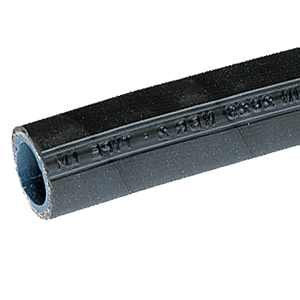

Solvent hose
for highly flammable hydrocarbons
Description:
The hose is suitable for a wide range of commercially available solvents. The hose is electrically conductive so that it can also be used in potentially explosive environments.
Also available in special lengths on request
Nominal diameter: DN 13 / DN 19 / DN 25 / DN 32 / DN 38 / DN 50
Electrically conductive
Properties & advantages
Operating pressure (max. 16 bar)
Colour coding: blue
fulfils EU regulations 10/2011 and 1935/2004
Underpressure max 0.9 bar
PP
PTFE
Pulsation dampener PD III D
for the double diaphragm pumps 1/4"
Description:
Pulsation dampeners are tanks filled with a gas cushion. A diaphragm separates the gas cushion from the system fluid. Pulsation dampers store and discharge part of the stroke volume in the stroke rhythm of the double diaphragm pump, whereby the gas cushion is compressed or decompressed accordingly. This makes the pulsating flow rate of the Pump almost uniform.
Adjustable air control
Material: PP / PVDF / stainless steel
Properties & advantages
Connection type on the medium side: 1/2" IG
Connection type on air side: 1/4" AG
Operating pressure (max. 10 bar)
Ensure almost uniform volume flow, which increases the accuracy of flow meters
Compensation of pressure surges (water hammer) protects installed fittings
Avoids pipe vibrations that cause material fatigue and pipe breakages
Explosion protection
Stainless steel (1.4571)
DN 13 x 1/2 IG

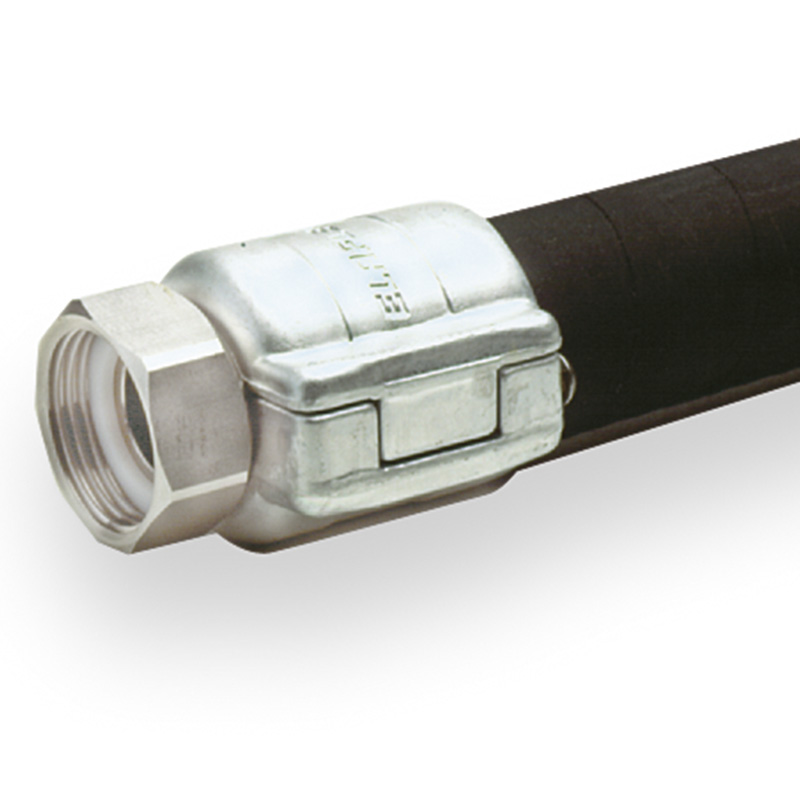

Hose integration
for DMP 1/2"
Description:
The hose connector is used as a safety connector for mineral oil hoses, solvent hoses and universal chemical hoses with different connection threads.
For double diaphragm pumps
Properties & advantages
Material: brass / stainless steel (1.4571)
For hose with Nominal diameter (DN) 13 / DN 19
Explosion protection
2m
Potential equalisation cable
for the DMP 1/4" to 1"
Description:
The potential equalisation cable is used for the electrically conductive connection between the Explosion proof Pump and Tank and has the function of earthing and potential equalisation.
2 m with fastening clip
Properties & advantages
Earthing and potential equalisation function
DN 19 (3/4")
2 m
Hose set alkalis + acids
For acidic liquids and low-viscosity chemicals
Description:
The hose set is suitable for aggressive and non-flammable liquids, but also for food liquids. The hose is made of PVC with an embedded and galvanised steel wire helix (smooth inside and outside). The set is used for connection to the Pump tube or nozzle.
Also available in special lengths on request
Properties & advantages
Nominal diameter (DN) 19 (3/4")
PP hose connection
Pre-assembled hose connections and hose clamps
PP
DN 12 x 1/2" AG

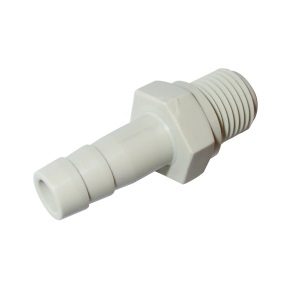

Screw-in hose nozzle
for the double diaphragm pump 1/2"
Description:
The screw-in hose nozzle enables the direct connection of hoses to the pressure or suction nozzle of the double diaphragm pump.
Material: PP
Properties & advantages
Connection type: DN 12 x 1/2" AG / DN 20 x 1/2" AG
DN 9 (3/8")
max. 14 bar
1 m

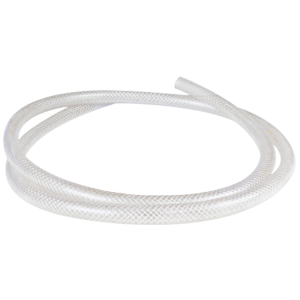

PVC hose / compressed air hose
with fabric insert
Description:
The compressed air hose is used to supply air to Compressed air motors or Diaphragm pumps, but can also be used as a vapour recovery hose (DN 9) for the vapour recovery system for mobile operation.
Also available in special lengths on request
Nominal diameters: DN 9 / DN 13
Properties & advantages
PVC hose with fabric insert
Operating pressure (Nominal diameter (DN) 9) max. 14 bar
Operating pressure (Nominal diameter: DN 13) max. 10 bar
Explosion protection
DN 25 (1")
max. 16 bar

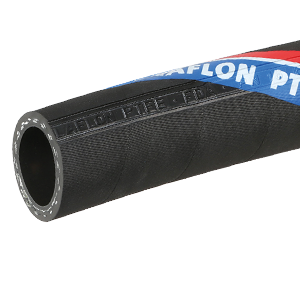

Special chemical hose PTFE
for common and high-purity media
Description:
The hose is suitable for all common media, but also for high-purity products. It can be used either as a pressure or suction hose and complies with FDA and USP Class VI requirements. Hose: is electrically conductive so that it can also be used in potentially explosive environments.
Also available in special lengths on request
Nominal diameter: DN 19 / DN 25
Properties & advantages
Operating pressure (max. 16 bar)
Colour coding: "blue/white/red"
Fulfils EU regulations 10/2011 and 1935/2004
PP
DN 50 x 2" internal thread

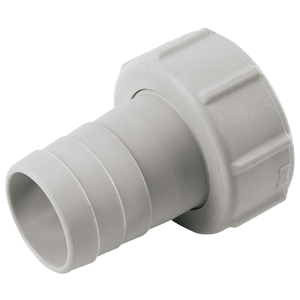

Hose connection
for DMP 2" and B70-V
Description:
The hose connection connects the delivery hoses to the pressure/suction nozzle of the double diaphragm pumps or the dispensing nozzle. When using a double diaphragm pump, either a suitable reducing nipple or a threaded bottle must be used in addition to the hose connection.
Special connections are available on request
Properties & advantages
Material: PP / PVDF / stainless steel
Connections: DN 38 x 1 1/2" IG / stainless steel: DN 38 x 1 1/2" female thread / DN 50 x 2" female thread
PVDF
DN 8 x 1/4" AG

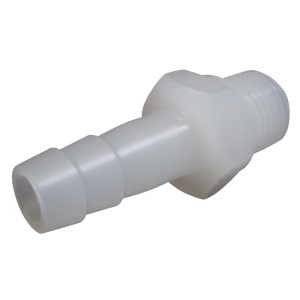

Screw-in hose nozzle
for the double diaphragm pump 1/4"
Description:
The screw-in hose nozzle enables the direct connection of hoses to the pressure or suction nozzle of the double diaphragm pump.
Material: PVDF / brass / stainless steel
Properties & advantages
Connection type: DN 8 x 1/4" AG / DN 9 x 1/4" AG
PP
DN 25 x 1" AG
Screw-in hose nozzle
for the double diaphragm pump 1"
Description:
The screw-in hose nozzle enables the direct connection of hoses to the pressure or suction nozzle of the double diaphragm pump.
Material: PP / stainless steel
Properties & advantages
Connection type: DN 25 x 1" AG
DN 9 (3/8")

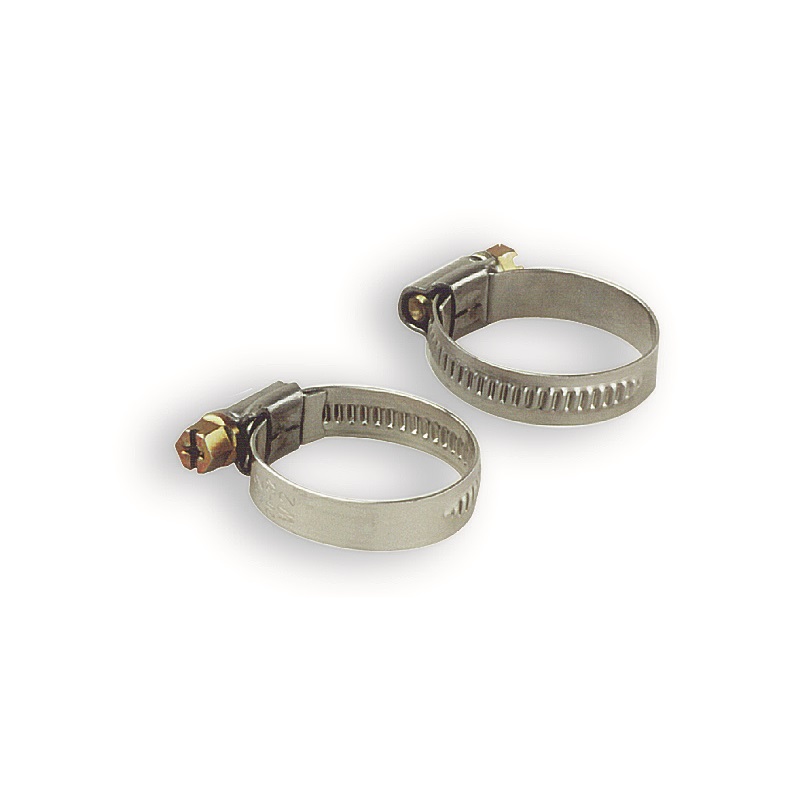

Hose clamps
for hose size DN 9
Description:
The hose clamp is made of stainless steel and is suitable for attaching the various delivery hoses to the hose connection.
Nominal diameters: DN 9 / DN 13 / DN 19 / DN 25 / DN 32 - 38 / DN 50
PP
DN 40 x 1 1/2" AG

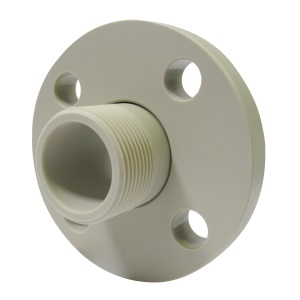

Threaded flange
for the double diaphragm pump 1 1/2"
Description:
The threaded flange is used to connect individual components to the double diaphragm pump. The flange includes the necessary screws and Seals.
Special connections are available on request
Properties & advantages
Material: PP / PVDF / aluminium / stainless steel (1.4571)
Connections: : DN 40 to 1 1/2" AG / DN 38 to 1 1/2" AG
