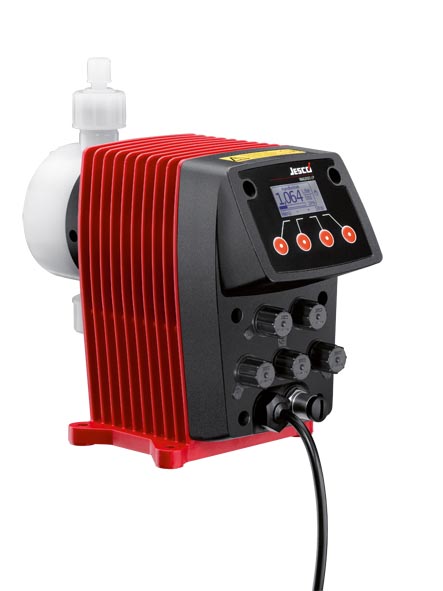

MAGDOS LP
*Abbildung kann vom tatsächlichen Produkt abweichen
Product number:
US-10231600
Product information "MAGDOS LP"
Description:
Simple to use and space-saving MAGDOS LP is available in seven power ranges. Double-ball valves ensure accurate dosing. The dosing power can be adapted by varying the stroke frequency manually, via an external control contact or using a 0/4 – 20 mA signal. The MAGDOS LP is also available with an optional Ethernet interface. This network connection enables you to control the stroke frequency and the number of strokes. In addition, all error messages can be transmitted in the opposite direction.
Features & advantages:
- Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig
- Wide - range power supply unit 110 – 240 V, 50/60 Hz, IP65
- Dosing head ventilation (plastic version)
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF and stainless steel
- Stroke frequency can be precisely adjusted via the keyboard
- Graphic display with multi-language menu
- Analogue input and pulse input (increase and reduction)
- Level input with early warning and main alarm
- Release input for external start/stop
- Supply amount displayed in various units
- Maximum delivery rate can be limited
- Energy-saving "Eco-mode" is available
- Stroke feedback output
- Alarm relay output
- Batch dosing with interval and timer functions
- Dosing control input
- Diaphragm failure input for leak monitoring
- Ethernet interface (optional)
- CSA and UL certified
| MAGDOS LP | 05 | 1 | 2 | 4 | 6 | 10 | 15 | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Delivery capacity at max. pressure | gph | 0.09 | 0.20 | 0.50 | 0.89 | 1.64 | 2.40 | 3.43 | ||
| ml/stroke | 0.05 | 0.2 | 0.31 | 0.57 | 0.83 | 0.86 | ||||
| Max. pressure | psig | 232 | 116 | 87 | 43 | |||||
| Delivery capacity at average pressure | gph | 0.14 | 0.29 | 0.61 | 1.00 | 1.80 | 2.64 | 4.00 | ||
| ml/stroke | 0.08 | 0.07 | 0.24 | 0.35 | 0.63 | 0.92 | 1 | |||
| Average pressure | psig | 116 | 58 | 43 | 14 | |||||
| Nominal stroke frequency | RPM | 120 | 250 | 160 | 180 | 250 | ||||
| Suction lift for non-gassing media | mWS | 5 | 3 | 2 | ||||||
| Max. supply / inlet pressure | psig | 11 | ||||||||
| Diameter of diaphragm | in | 0.944 | 1.299 | 1.535 | ||||||
| Valve size | DN3 | DN4 | ||||||||
| Voltage supply | 110 – 240 V, -10 % / +5 %, 50/60 Hz | |||||||||
| Power consumption | W | 10 | 15 | 21 | 27 | 28 | 29 | 26 | ||
| Protection class | IP65 (with covering caps on the connections) | |||||||||
| Insulation class | F | |||||||||
| Material | PVC, PP, PVDF, 1.4571 | |||||||||
| Weight | PVC, PP, PVDF | lb | ~ 7 | |||||||
| Stainless Steel | ~ 9.5 | |||||||||
| Ambient temperature range | °F | Stainless Steel/PVDF 41° - 113° (41° - 104° with PVC parts) | ||||||||
| Max. temperature of the medium | °F | Stainless Steel/PVDF 176° (with PVC parts 95°; with PP parts 140°) | ||||||||
