MAGDOS LB

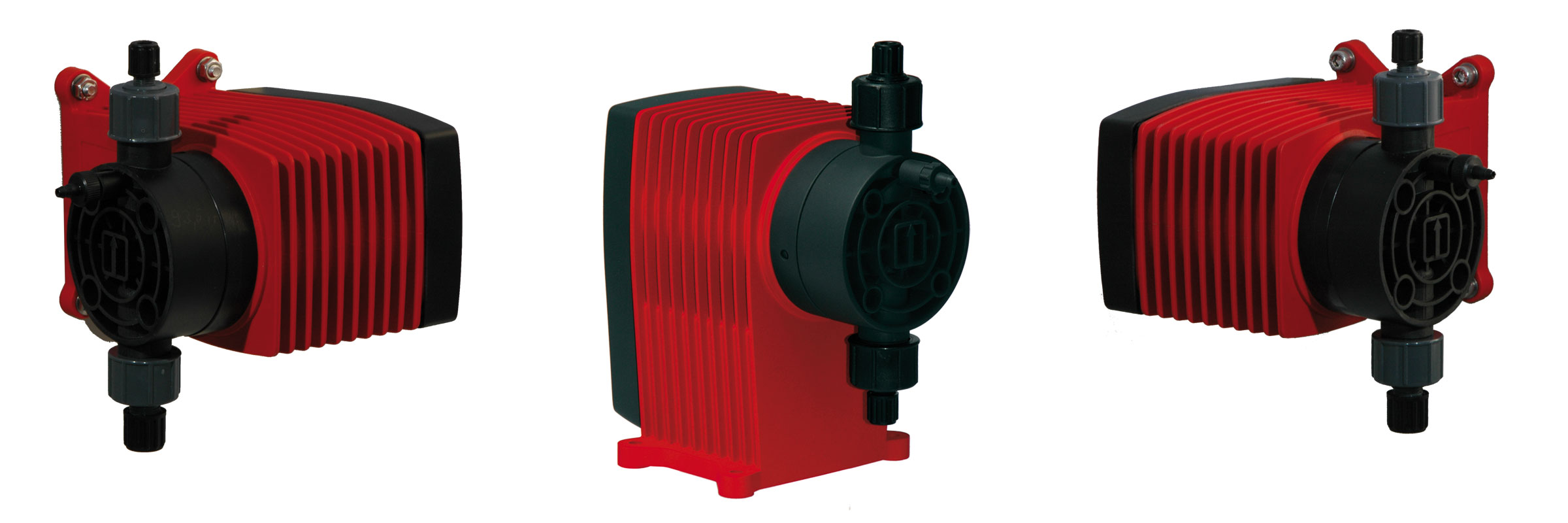

*Abbildung kann vom tatsächlichen Produkt abweichen
Product number:
US-10211400
Product information "MAGDOS LB"
Description:
Simple dosing pump in newest generation The MAGDOS LB solenoid-diaphragm dosing pump is a good-value alternative for simple and continuous dosing tasks. It is especially suitable for water treatment and the process industry. MAGDOS LB is available for seven capacity ranges. Double-ball valves ensure an accurate dosing. The dosing capacity can be adapted continuously from 0 – 100% through the stroke frequency. MAGDOS is a compact solution which only includes the most important elements for reliable dosing.
Features & advantages:
- Capacity range from 0.09 to 4.00 gph, max. back pressure 232 psig
- Wide-range power supply unit 110 – 240 V, 50/60 Hz, IP65
- Dosing head ventilation
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF
- Infinitely variable dosing rate from 0 – 100 %
- CSA and UL certified
| MAGDOS LB | 05 | 1 | 2 | 4 | 6 | 10 | 15 | ||
|---|---|---|---|---|---|---|---|---|---|
| Delivery capacity at max. pressure | gph | 0.09 | 0.20 | 0.5 | 0.89 | 1.60 | 2.40 | 3.43 | |
| ml/stroke | 0.05 | 0.2 | 0.32 | 0.57 | 0.83 | 0.87 | |||
| Max. pressure | psig | 232 | 116 | 87 | 43 | ||||
| Delivery capacity at medium pressure | gph | 0.14 | 0.29 | 0.61 | 1.00 | 1.80 | 2.64 | 4.00 | |
| ml/stroke | 0.08 | 0.07 | 0.24 | 0.35 | 0.63 | 0.92 | 1 | ||
| Average pressure | psig | 116 | 58 | 43 | 14 | ||||
| Nominal stroke frequency | RPM | 120 | 250 | 160 | 180 | 250 | |||
| Suction lift for non-gassing media | ft H2O | 16 | 9 | 6 | |||||
| Max. inlet / supply pressure | psig | 11 | |||||||
| Diameter of diaphragm | in | 0.944 | 1.299 | 1.535 | |||||
| Valve size | DN3 | DN4 | |||||||
| Voltage supply | 110 – 240 V, -10 % / +5 %, 50/60 Hz | ||||||||
| Power consumption | W | 10 | 15 | 21 | 27 | 28 | 29 | 26 | |
| Protection class | IP65 | ||||||||
| Insulation class | F | ||||||||
| Material | PVC, PP, PVDF | ||||||||
| Weight | lb | ~ 6.6 | |||||||
| Ambient temperature range | °F | 41° – 113° (with PVC parts 41° – 104°) | |||||||
| Max. temperature of the medium | °F | PVDF 176° (with PVC parts 95°, with PP parts 140°) | |||||||
