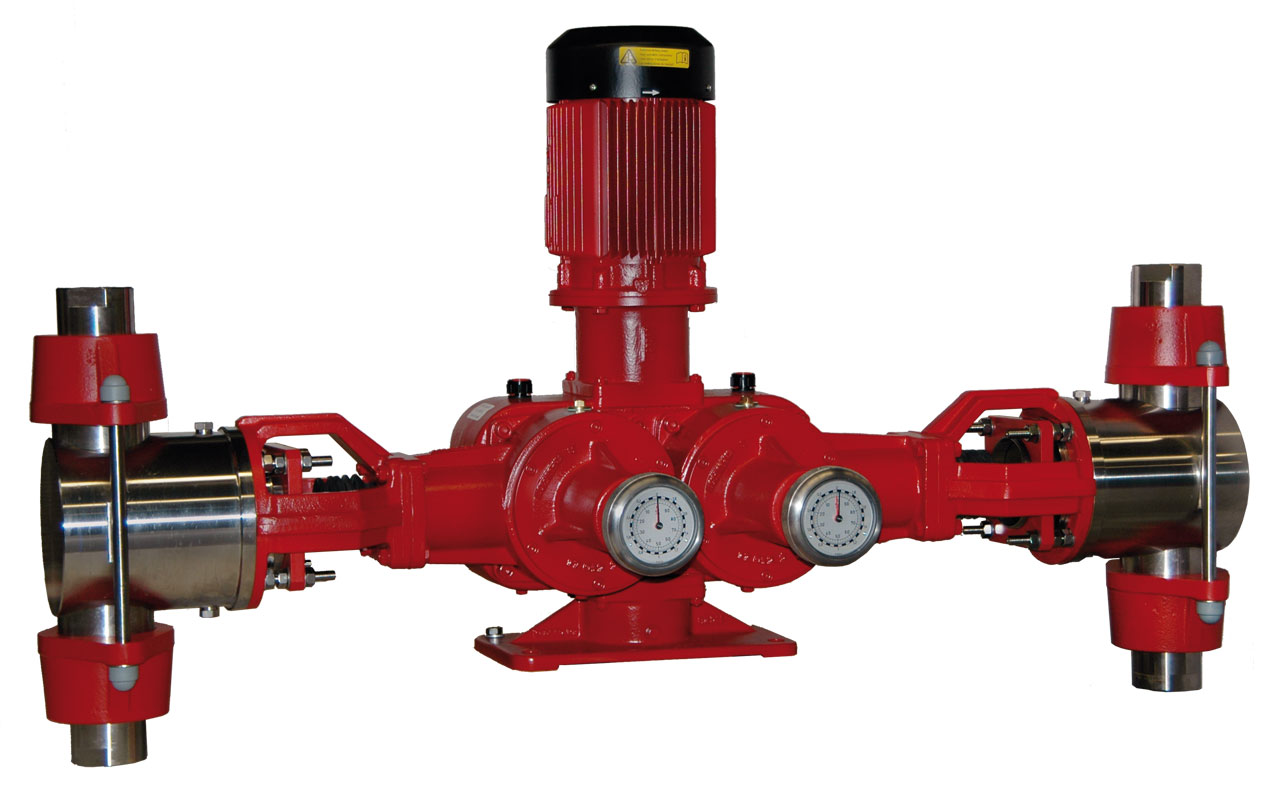

KARDOS N
*Abbildung kann vom tatsächlichen Produkt abweichen
Product number:
US-80000009
Product information "KARDOS N"
Description:
High pressure piston dosing pump KARDOS stands for a group of precision dosing pumps which have been developed especially for applications with a high demand for accuracy, reliability and flexibility in a wide performance range. The symmetrically designed gearbox allows the arrangement of 2 dosing heads on the same level and the stacking of three heads above one another, thus enabling a maximally 6-head pump. Each dosing head is 100% adjustable independently.
Features & advantages:
- 2 dosing heads on the same level
- Stacking of three heads above one another
- Each dosing head is 100% adjustable independently
- Piston in ceramic, stainless steel or Hastelloy
- Double-ball, single-ball or spring-loaded single-ball valves, depending on the size of the dosing head
- Plastic dosing heads for max. 10 bar
- Stainless steel dosing heads for up to 400 bar
- Dosing head with a flushing attachment
- Piston packings in PTFE or Aramid-kevlar
- Stroke counter with inductive detector for charge-processes (optional)
- Dosing head heating
- Piston-diaphragm dosing heads available
| KARDOS N | 16 | 56 | 130 | 320 | 750 | 1300 | 2500 | 4200 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. pressure (plastic) | bar | - | 10 | 65 | 3 | |||||
| Max. pressure (stainl. st.) | bar | 400.0 | 325.0 | 130.0 | 52.0 | 24.0 | 13.0 | 6.5 | 3.0 | |
| Output at max. pressure | l/h | 15 | 53 | 125 | 306 | 715 | 1225 | 2400 | 4400 | |
| ml/stroke | 2.5 | 8.8 | 20.7 | 51.0 | 119.0 | 204.0 | 392.0 | 733.0 | ||
| Piston Ø | mm | 8 | 15 | 23 | 36 | 55 | 72 | 100 | 135 | |
| Stroke frequency | min-1 | 100 | ||||||||
| Suction lift | mbar | 120 | ||||||||
| Weight dosing head (plastic) | kg | - | 15 | 20 | 30 | |||||
| Weight dosing head (stainl. st.) | kg | 7 | 17 | 34 | 38 | 45 | 78 | |||
| Weight simple gear | kg | 95 | 96 | 97 | 98 | 99 | ||||
