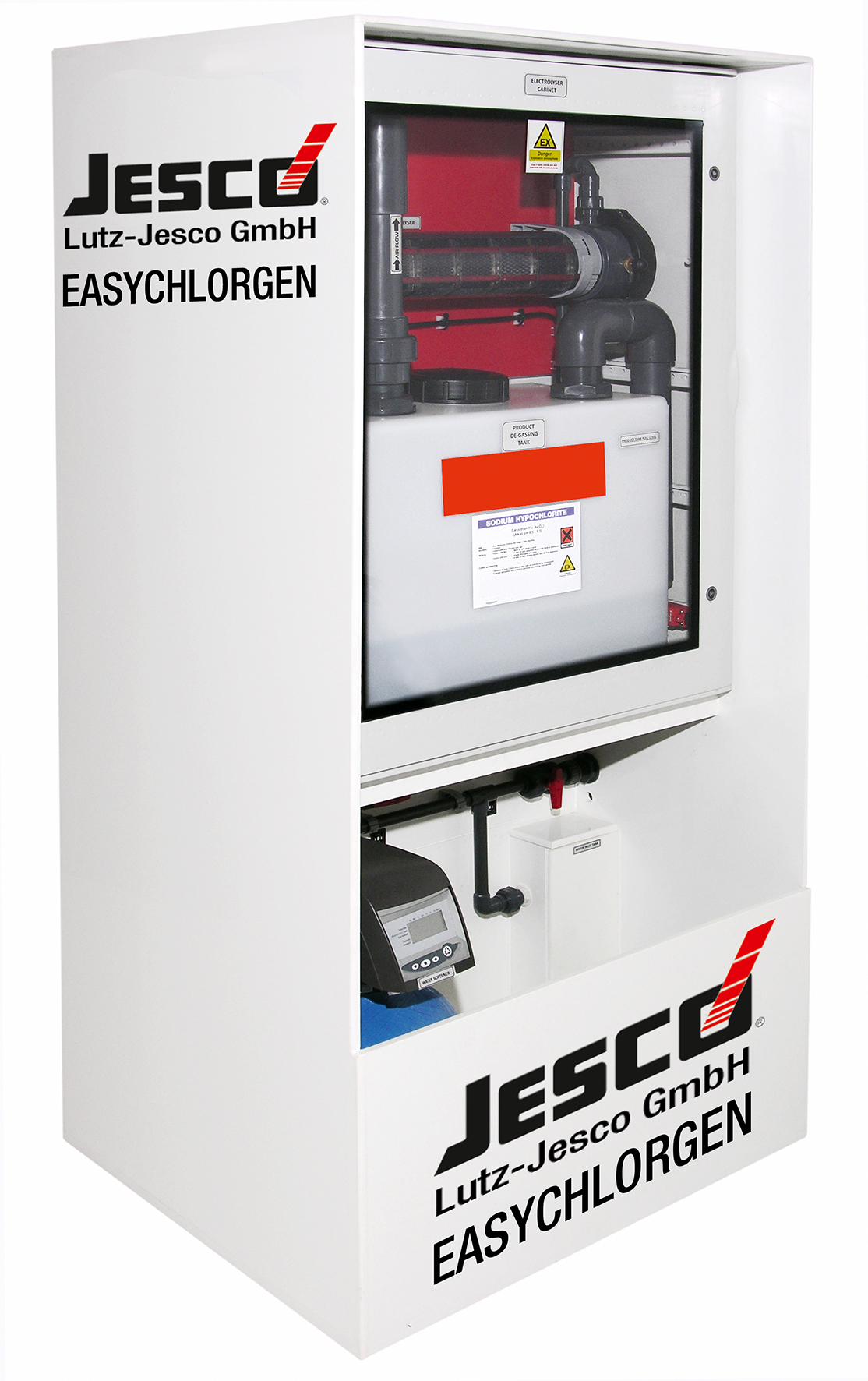

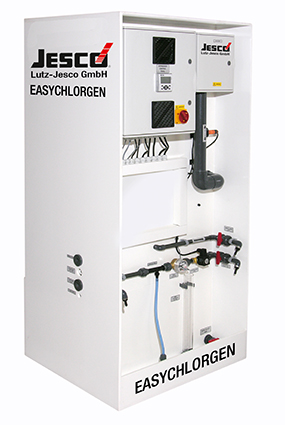

EASYCHLORGEN
*Abbildung kann vom tatsächlichen Produkt abweichen
Product number:
US-80000031
Product information "EASYCHLORGEN"
Description:
Safe, reliable & efficient on-site generation of sodium hypochlorite EASYCHLORGEN electrochlorination systems provide an on-demand supply of <1.0% sodium hypochlorite solution, generated through the electrolysis of diluted brine solution. The combination of storing low strength solution, the avoidance of chemical deliveries, handling and operator involvement significantly reduce the likelihood of any accidental spillage.
Features & advantages:
- On site electrolysis of brine for safe generation and preparation of
<1% sodium hypochlorite solution - Safe and fully sealed electrolytic process
- Easy to operate
- Integrated control panel & OLED screen
- Manual and automatic operation
- Multilingual operating display option
- Telemetry alarm event & data logging option
- Chlorine production from 25 g/h to 8.5 kg/h
Benefits
Eliminate delivery & handling of hazardous chemicals Handle only salt Generate on site for on-demand or residual storage Eliminate dosing pump air-locking associated with commercial hypochlorites Eliminate injection point scaling associated with commercial sodium and calcium hypochlorites Considerable Health & Safety benefit to operators| EASYCHLORGEN | 25 | 50 | 100 | 180 | 280 | 560 | 1100 | 2200 | 4250 | 8500 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chlorine capacity | g/h | 25 | 50 | 100 | 180 | 280 | 560 | 1100 | 2200 | 4250 | 8500 | |
| Chlorine concentration | g/l | 5 – 8 | ||||||||||
| Power consumption | kWh | 0.25 | 0.5 | 0.75 | 0.9 | 1.4 | 2.8 | 5.6 | 11 | 21.25 | 42.5 | |
| Power supply | ø | 1 | 1 | 3 | 3 | |||||||
| Operating pressure | bar | 1.5 – 10 | ||||||||||
| Nominal water consumption | l/h | 5 | 10 | 20 | 26 | 40 | 80 | 157 | 314 | 607 | 1214 | |
| Nominal salt consumption | kg/h | 0.082 | 0.164 | 0.334 | 0.60 | 0.93 | 1.85 | 3.63 | 7.26 | 14.02 | 28.04 | |
| Protection class | IP | 54 | 44 | |||||||||
| Permissible ambient temperature | °C | +5 to +40 (+45)* | ||||||||||
| Permissible feed water temperature | °C | +8 to +20 (+30)** | ||||||||||
