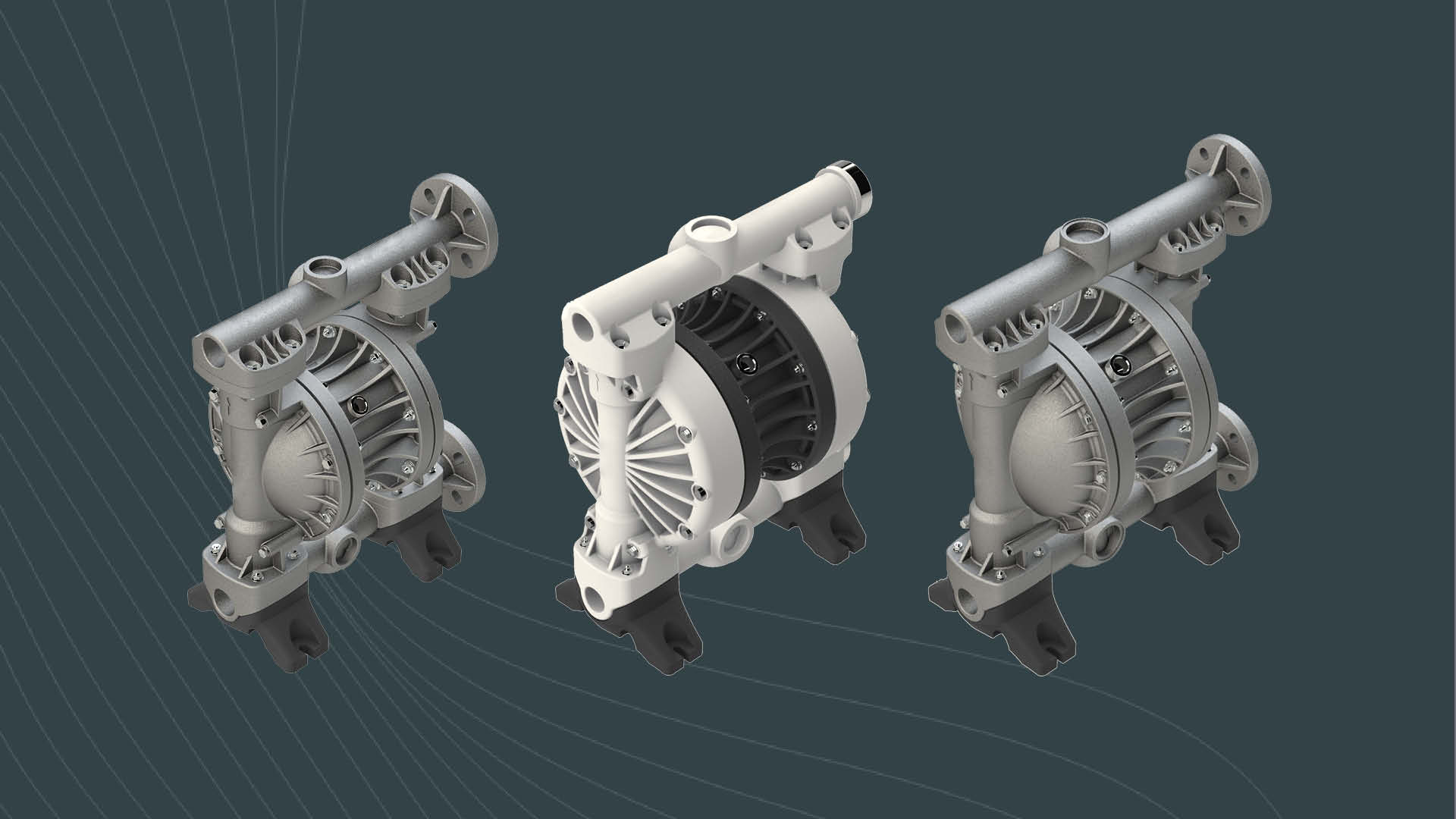

Diaphragm pump chemistry & large-scale industry
The robust and hard-wearing pumps are the ideal solution for use with large flow rates. They are able to fulfil requirements in the higher viscosity range.
Explosion protection
Plastic
PVDF
Double diaphragm pump DMP model 2" plastic explosion-proof
for plant feeders and large-scale industry
Description:
The double diaphragm pump 2" PVDF explosion-proof is suitable for large-scale industry and system feeding as well as for large flow rates and higher viscosities.
Typical applications: Filter press, tank cleaning system, pigment dyes and resins
Integrated silencer up to model size DMP 1"
highly resistant TFM (PTFE) diaphragms (modified PTFE)
Features & benefits
High hydraulic performance
Maintenance-optimised design and easy installation
Self-priming (even when dry)
Absolutely oil-free
Blockage-free operation
Pumps explosion-proof in accordance with the ATEX directive (explosion protection)
Plastic
PP
Compressed air
Double diaphragm pump DMP model 2" plastic
for plant feeders and large-scale industry
Description:
The double diaphragm pump is suitable for large-scale industry and system feeding as well as for large flow rates and higher viscosities.
Typical applications: Filter press, tank cleaning system, pigment dyes and resins
Integrated silencer up to model size DMP 1"
highly resistant TFM (PTFE) diaphragms (modified PTFE)
Features & benefits
High hydraulic performance
Maintenance-optimised design and easy installation
Self-priming (even when dry)
Reinforced elastomers and thermoplastic diaphragm
Absolutely oil-free
blockage-free operation
Explosion protection
Metall
Aluminium
Double diaphragm pump DMP model 1 1/2" metal
for plant feeders and large-scale industry
Description:
The double diaphragm pump is suitable for large-scale industry and system feeding as well as for large flow rates and higher viscosities.
Typical applications: Transfer from drums and containers, transfer of corrosive solutions and chemicals
Integrated silencer up to model size DMP 1"
also available in the Pure version (5244-410)
Features & benefits
High hydraulic performance
Maintenance-optimised design and easy installation
Self-priming (even when dry)
Absolutely oil-free
Blockage-free operation
Pumps explosion-proof in accordance with ATEX directive (explosion protection)
Explosion protection
Metal
Aluminium
Double diaphragm pump DMP model 2" metal
for plant feeders and large-scale industry
Description:
The double diaphragm pump is suitable for large-scale industry and system feeding as well as for large flow rates and higher viscosities.
Typical applications: Transfer from drums and containers, transfer of corrosive solutions and chemicals
Integrated silencer up to model size DMP 1"
also available in the Pure version (5254-410)
Features & benefits
High hydraulic performance
Maintenance-optimised design and easy installation
Self-priming (even when dry)
Absolutely oil-free
Blockage-free operation
Pumps explosion-proof in accordance with the ATEX directive (explosion protection)
Explosion protection
Plastic
PVDF
Double diaphragm pump DMP model 1 1/2" plastic explosion-proof
for plant feeders and large-scale industry
Description:
The double diaphragm pump 1 1/2" PVDF explosion-proof is suitable for large-scale industry and system feeding as well as for large flow rates and higher viscosities.
Typical applications: Filter press, tank cleaning system, pigment dyes and resins
Integrated silencer up to model size DMP 1"
highly resistant TFM (PTFE) diaphragms (modified PTFE)
Features & benefits
High hydraulic performance
Maintenance-optimised design and easy installation
Self-priming (even when dry)
Absolutely oil-free
Blockage-free operation
Pumps explosion-proof in accordance with the ATEX directive (explosion protection)
Plastic
PP
Compressed air
Double diaphragm pump DMP model 1 1/2" plastic
for plant feeders and large-scale industry
Description:
The double diaphragm pump is suitable for large-scale industry and system feeding as well as for large flow rates and higher viscosities.
Typical applications: Filter press, tank cleaning system, pigment dyes and resins
Integrated silencer up to model size DMP 1"
highly resistant TFM (PTFE) diaphragms (modified PTFE)
Features & benefits
High hydraulic performance
Maintenance-optimised design and easy installation
Self-priming (even when dry)
Reinforced elastomers and thermoplastic diaphragm
Absolutely oil-free
blockage-free operation
Diaphragm pump mixing system
for mixing and pumping (explosion-proof)
Description:
The new diaphragm pump mixing system with an integrated compressed air-driven double diaphragm pump is the perfect solution for liquids that need to be mixed before processing and then pumped or that also contain small solids. The mixing and pumping process takes place via a suction and mixing pipe and a 3-way valve. The pre-assembled system is ready for immediate use in just a few simple steps and is also suitable for potentially explosive liquids.
Mixing and pumping integrated in one system
Examples of media: Paints and varnishes, emulsions, dispersions, suspensions, water/oil mixtures, liquids with increased viscosity and solids content
Properties & advantages
Quick installation and time saving due to easy handling
Compact design
Base plate offers good stability on the container lid
Easy to insert into the 2" bunghole of the container using a balancer or overhead crane
No additional mixer required
